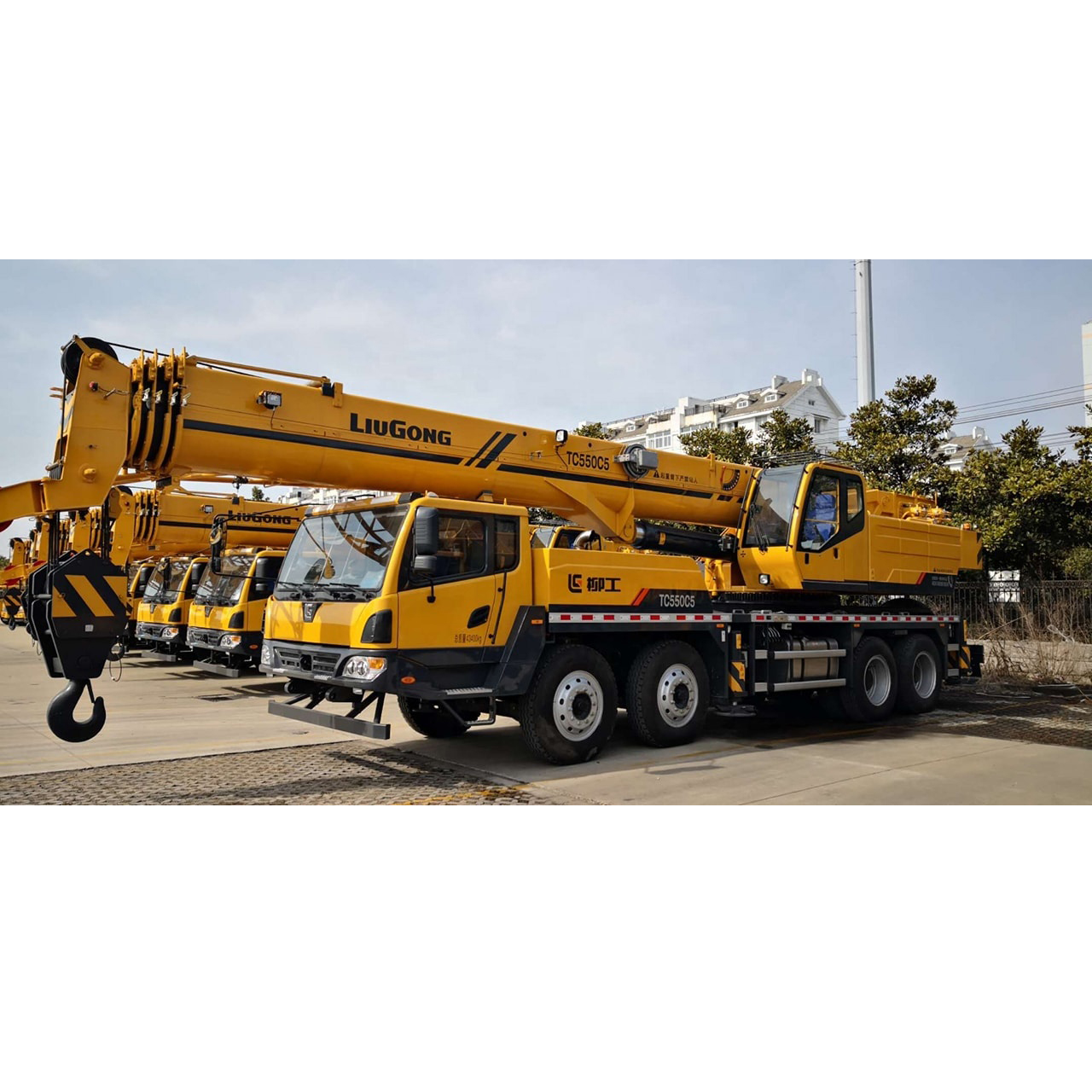

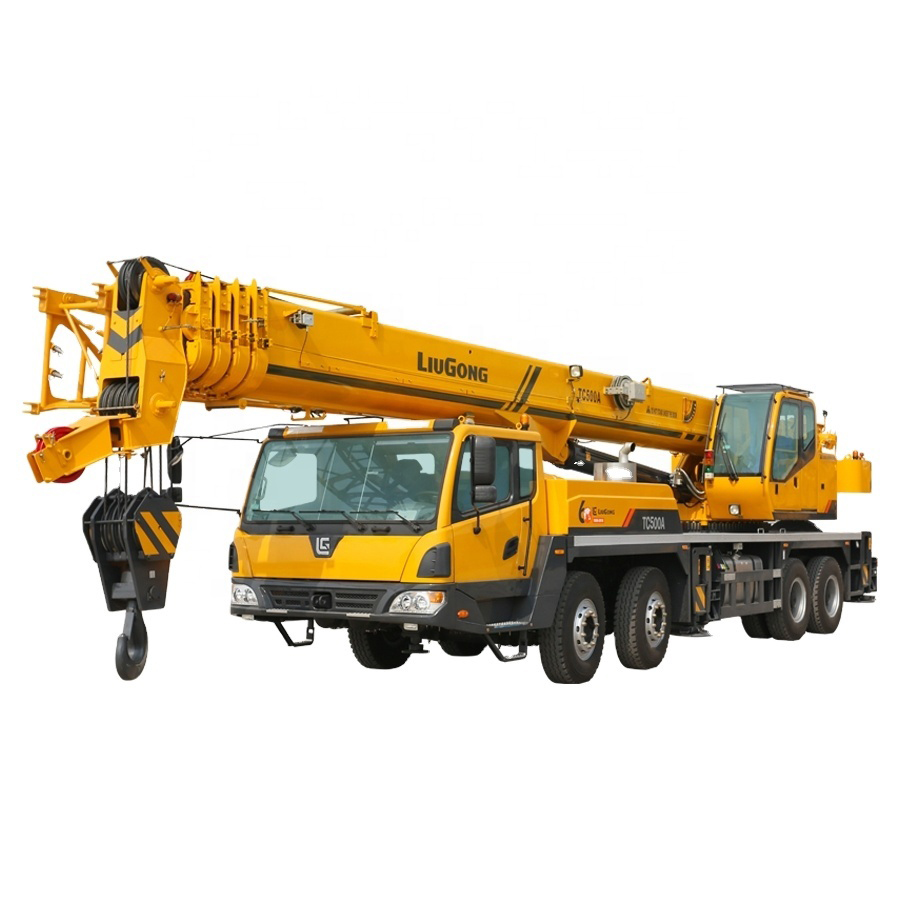

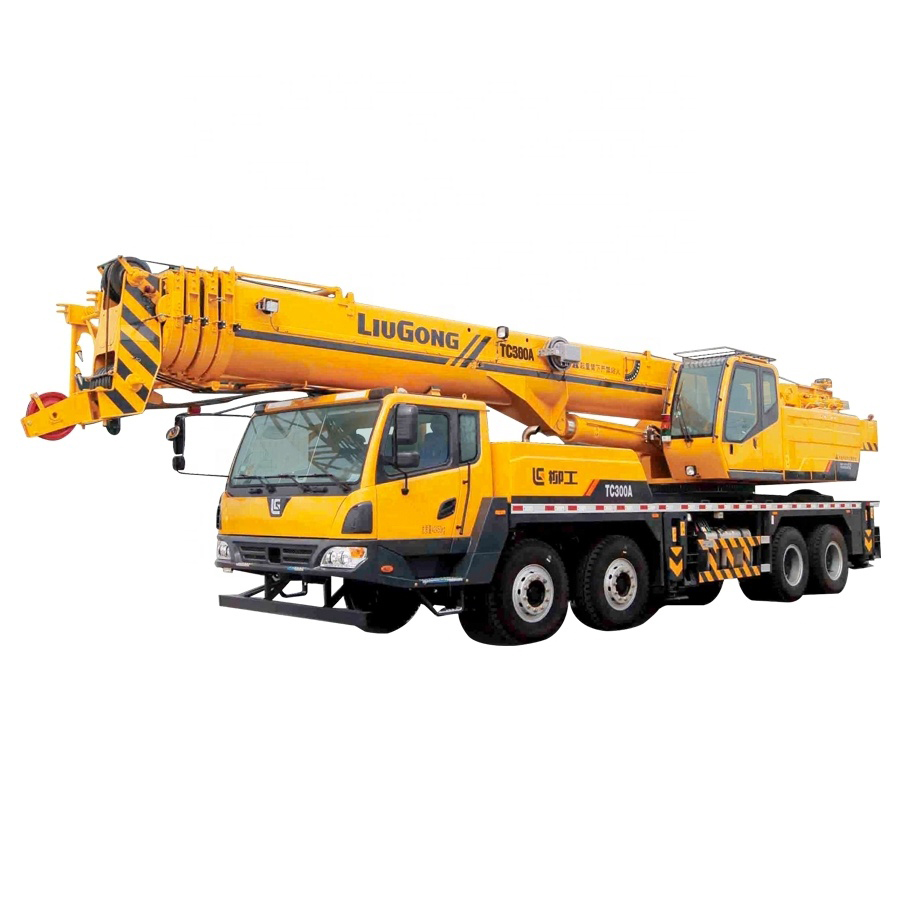

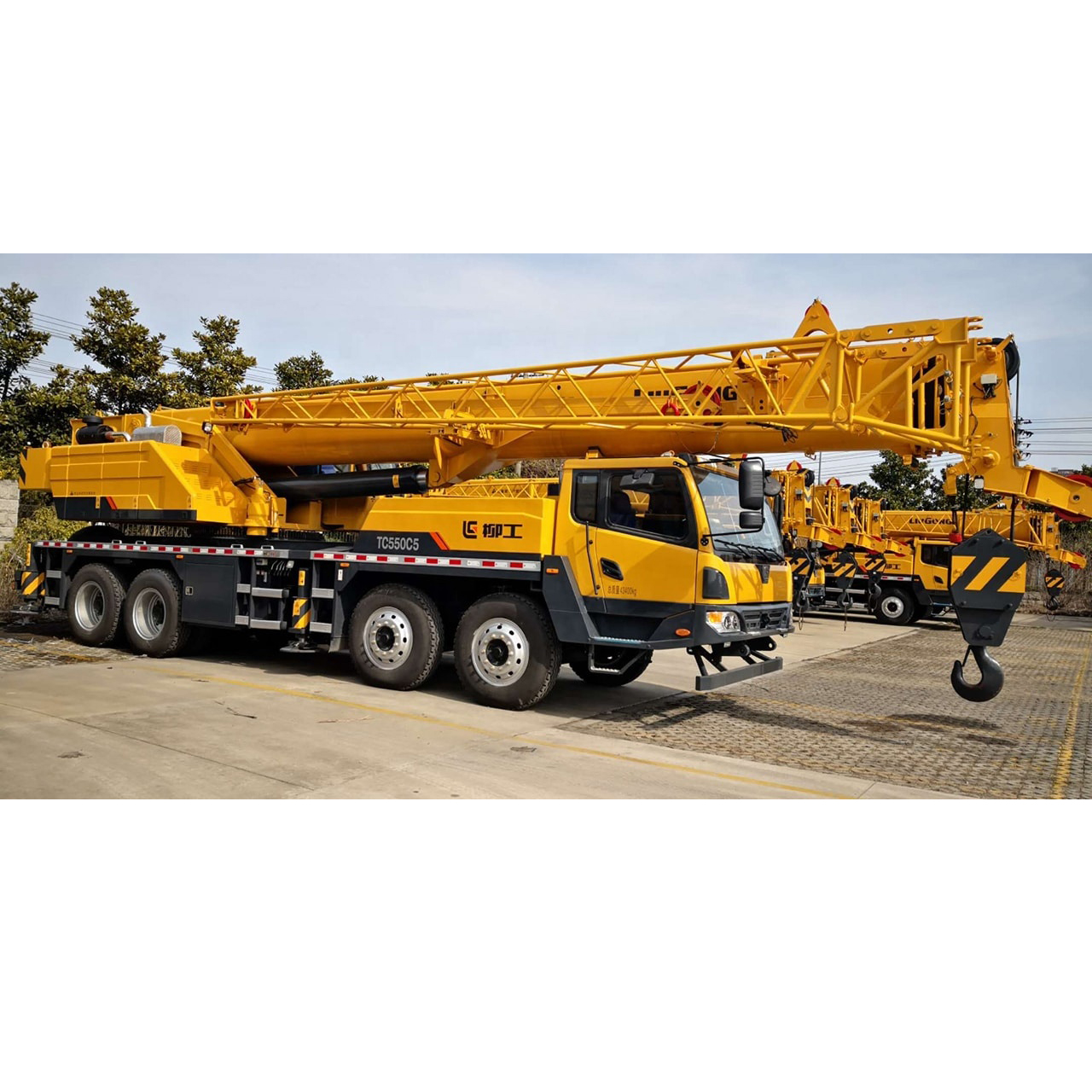

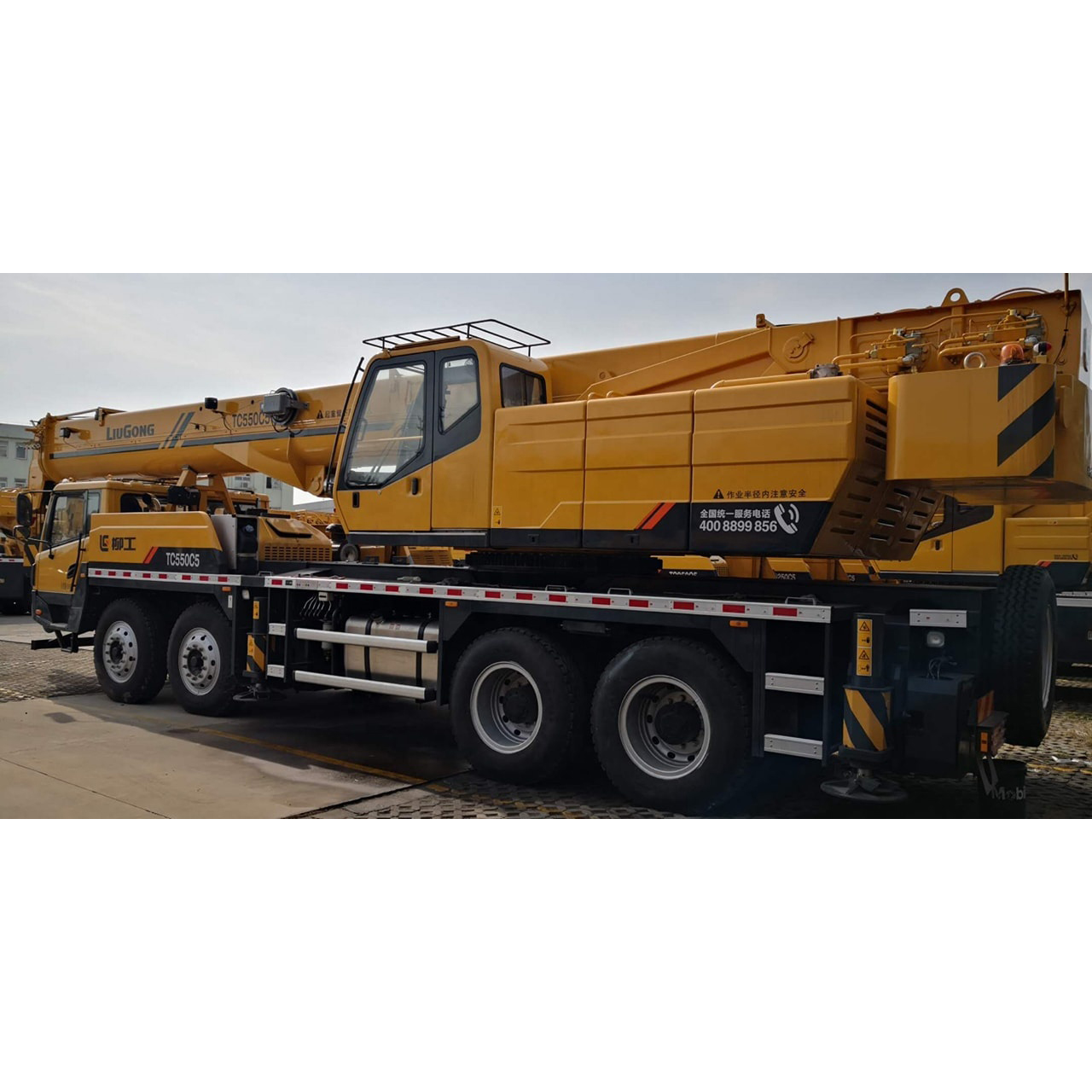

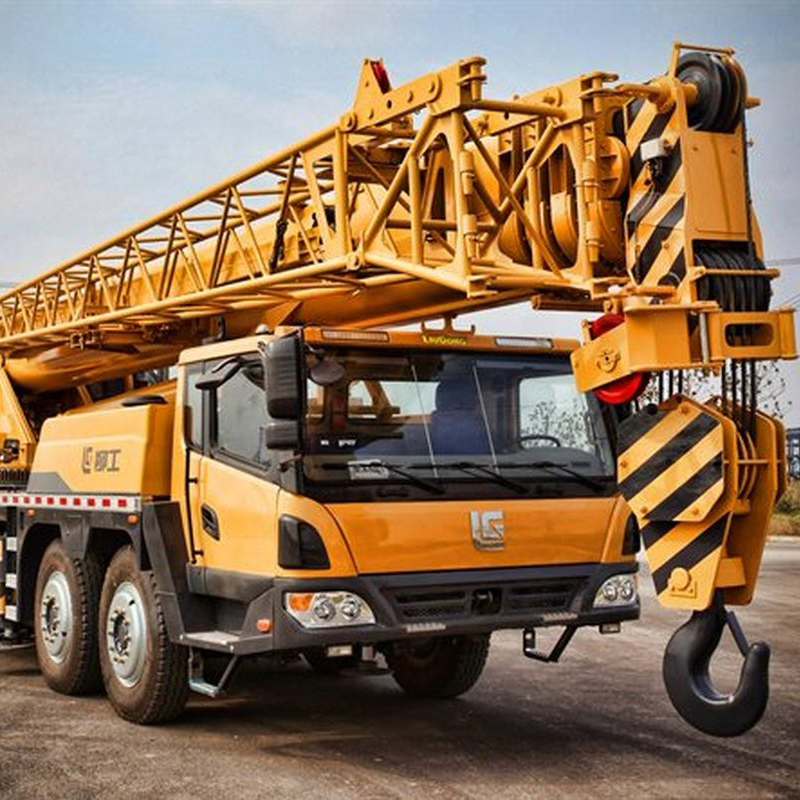

LIUGONG 55Ton Truck Crane 5 Sections 45.6M Lifting Height TC600C5

Introduction:

The combination of Fast 9-speed gearbox and double reduction axle features large speed ratio range, which meets the requirements of low gradeability speed and high traveling speed


Product Detail

Product Tags

Video

Product Description

The largest crane operating range, and the most optimal lifting performance in the industry.



Five-section U-shaped boom of large cross section with maximum length reaches up to 45m and jib of the length of 16 m.



The 7.5m transverse outrigger span with a fixed counterweight of 3.3t makes its lifting performance 5-10% higher than that of the products of same class.



Imported ISLe series high pressure common rail large torque euro III engine of 340 horsepower is configured.



The combination of Fast 9-speed gearbox and double reduction axle features large speed ratio range, which meets the requirements of low gradeability speed and high traveling speed.



The max. traveling speed is 85km/h and max. gradeability is up to 46%.



Load sensitive valve compensation technology, with stable control.

Specification

Max. rated lifting capacity

55 t

Max. rated lifting torque of basic boom

2033 kN·m

Max. rated lifting torque of full extended

1192 kN·m

Max. lifting height of main boom

45.6 m

Max. lifting height of Jib

45.6+16.4 m

Overall net weight

43400 kg

Max. single rope speed

130 m/min

Time of telescoping boom

100 s

Time of elevating boom

45

Max. slewing speed

2.2 rpm

Max. travel speed

85 km/h

Gradeability

47%

Min. turning diameter

24 m

Dimensions (L x W x H)

13950x2800x3730 mm

Outrigger longitudinal span

5750 mm

Outrigger transverse span

Full:7500 / Half:5020 mm

Sections of boom

5

Length of main boom

45 m

Length of jib

16 m

Type

ISL9.5-340E51A

Engine Model

QSB6.7-C220

Rated power

251/164 kW

Max. rated torque

1500/949 N·m
