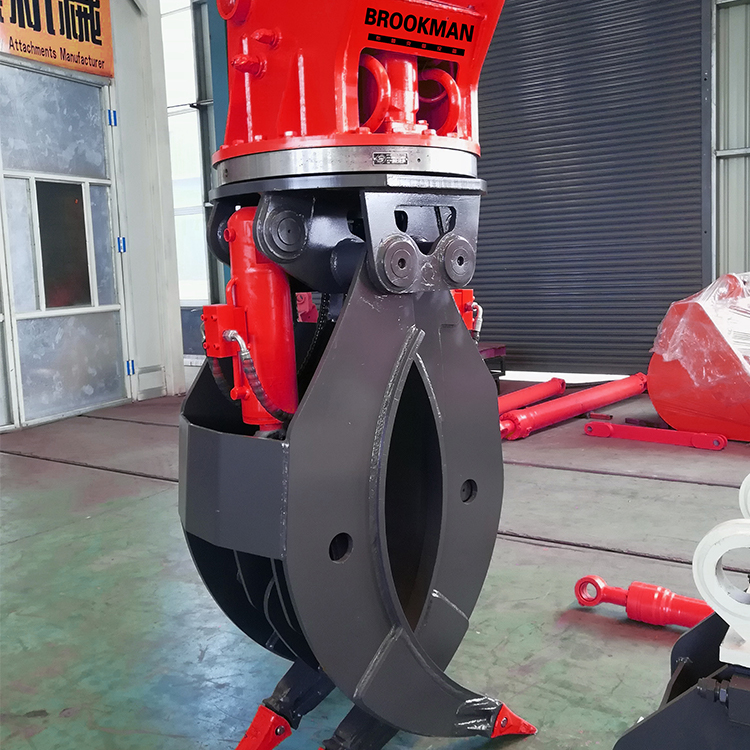

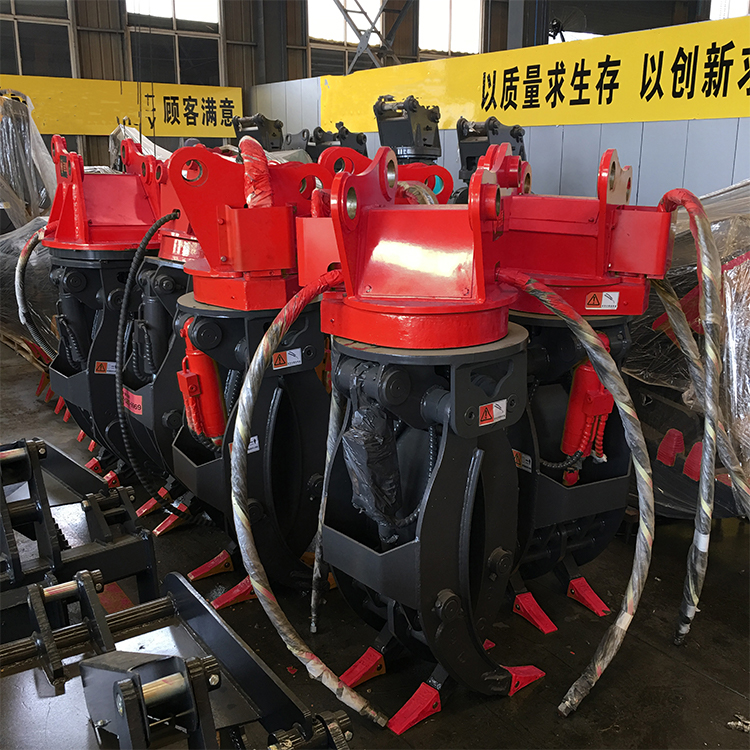

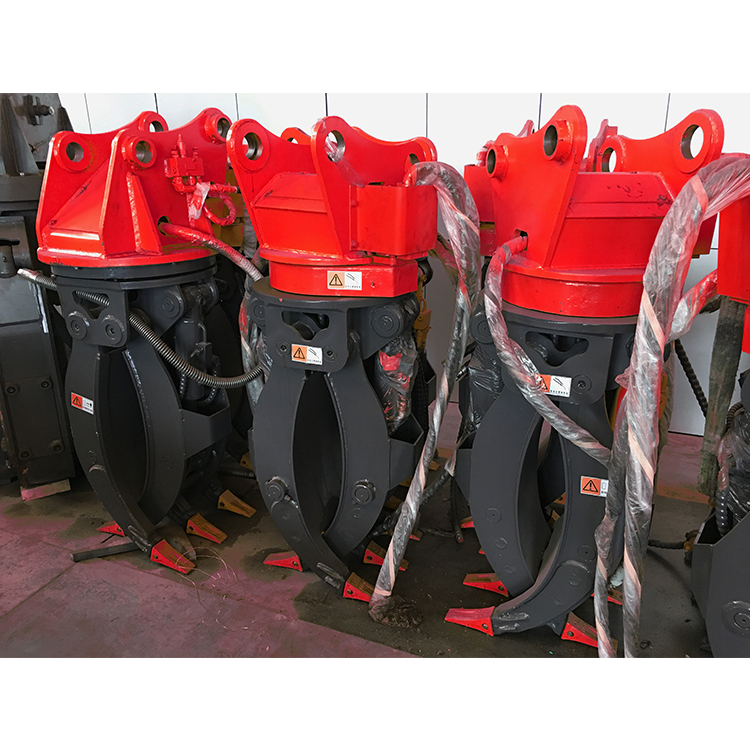

BROOKMAN Excavator Hydraulic Rotary Grab

Introduction:

According to the function of hydraulic grapple, it can be divided into

sugarcane, round wood, stone grapple, and so on;

According to working principle, it has hydraulic grapple and

mechanical grapple;

According to the teeth, it has two teeth, five teeth, and seven teeth.

Inquiry

Product Detail

Product Tags

Video

Product Description

Excavator hydraulic rotary grapple is widely used for handling, loading and unloading materials, sugarcane, wood, stone, steel slag, grabbing garbage, scrap metal and other special operations.

Features

◆ Using wear-resistant steel, light weight and wear-resistant;

◆ The pin shaft with built-in oil passage, high strength and good toughness;

◆ The rotating motor adopts the imported motor ;

◆ The gripper is durable.

Product parameter

Model	MWR10	MWR15	MWR20	MWR30	MWR35
Weight（kg）	390	740	1380	1700	1900
Opening Size（mm）	1400	1800	2300	2500	2500
Working Flow (L/min)	50-100	90-110	100-140	130-170	200-250
Apply to（ton）	7-11	12-16	17-23	24-30	31-40
