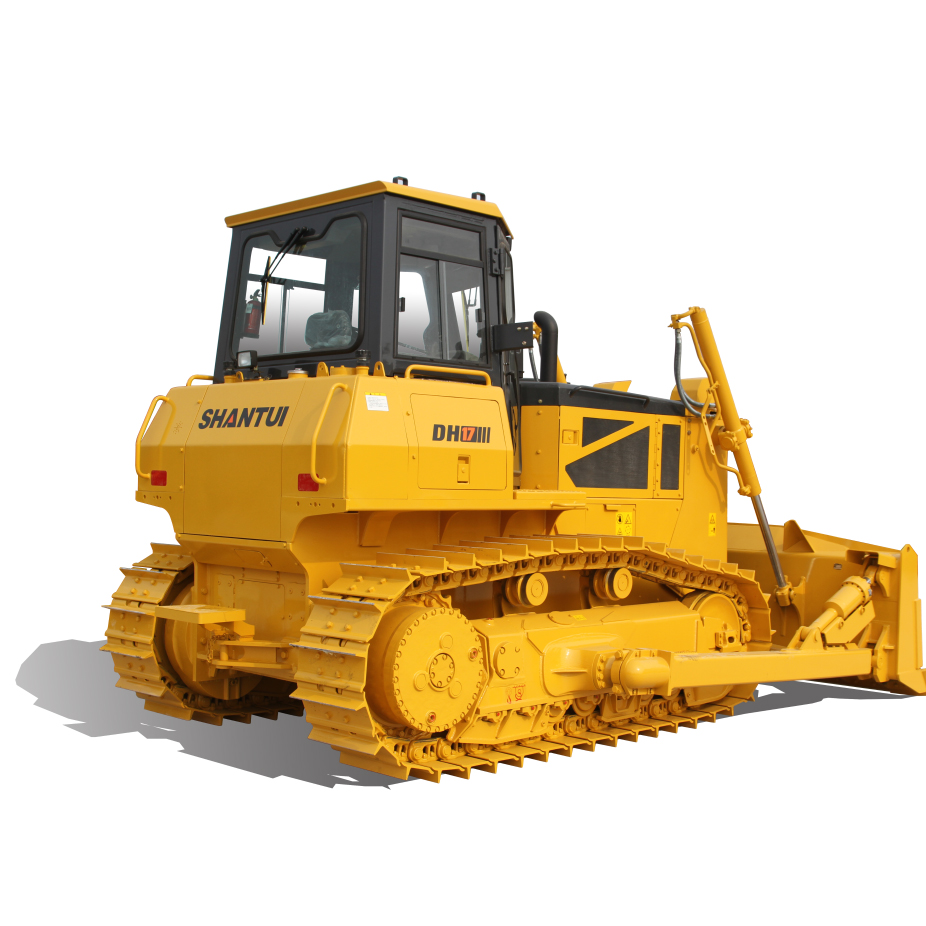

Shantui 17ton DH17-B2 remote control bulldozer

Introduction:


Product Detail

Product Tags

Video

Feature

Power System

● Weichai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high intelligence and efficiency, simple structure, high parts interchangeability, and low maintenance cost.

● The intelligent match technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%

Control system

● The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

● The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

● The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding

Driving/Riding Environment

The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.

● The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.

● The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

● The standard canopy and the optional standard cab + heating and A/C system are provided. The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to lower the driver’s parotic noise to 85dB and realize low vibration and noise.

● The intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, toolbox, sun shade, and fire extinguisher to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.

● The safety passage system of the machine guarantees the driver’s safety

Working adaptability

● The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.

● The undercarriage system features long ground length, high ground clearance, stable driving, and excellent trafficability. The standard traction frame and the optional three-shank ripper are provided.

● The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability

Easy maintenances

● The structural parts inherit the excellent quality of Shantui mature products.

● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

● The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances

247347
1
2

Paracteristic

Parameter name DH17 B2 XL DH17 B2 LGP
Performance parameters
Operating weight (Kg) 17500(Ripper not included) 19360
Ground pressure (kPa) 64 30
Engine
Engine model Weichai WD10G190E214 Weichai WD10G190E214
Rated power/rated speed (kW/rpm) 140/1900 140/1900
Overall dimensions
Overall dimensions of machine (mm) 5250*3420*3080 5340*4150*3091
Driving performance
Forward speed (km/h) 0~10 0~10
Reversing speed (km/h) 0~10 0~10
Chassis System
Center distance of track (mm) 1880 2350
Width of track shoes (mm) 510/560/610 1100/950
Ground length(mm) 2675 2935
Tank capacity
Fuel tank (L) 305 305
Working device
Blade type Semi-U/Straight-tilt Straight-tilt
Digging depth (mm) 520 485
Ripper type 3 shank -
Ripping depth (mm) 475 -

Product Features:

1. Equipped with Weichai engine to provide strong power. High horsepower hydraulic transmission, hydraulic control, reasonable structure, excellent performance, easy to operate, reliable and high efficiency.

2.Equipped with strengthened bucket for steel slag bucket. The use of high quality wear-resistant and high temperature resistant steel further improves reliability and prolongs the service life of the bucket.

3.Equipped with inclined downward front grille air outlet, which reduces the heat radiation to the engine, prevents the radiator from being blocked by steel slag or liquid and increases the reliability of the cooling system.

4.Equipped with protective nets on both sides of the engine, can effectively prevent the steel slag or liquid from entering the engine.

5.Equipped with optimized air intake system improves the intake quality, reduces the early wear of the engine and prolongs the service life .

6.Equipped with track supporting roller, carrier roller, guiding roller which are all mounted with long life well sealed floating ring. All the rollers are protected bybimetallic sleeve, the "O" ring is made of high temperature resistant special rubber material.

7.Equipped with supporting roller which is made from the overall water spray quenching heat treatment process, which improves the thickness of wear-resistant layer, has super wear resistance ability and longthe service life.

8.Equipped with high temperature resistant oil cylinder hose and steel wire protective net to prevent heat and wear. A dust-proof oil seal is installed between the track joint and the track pin sleeve, greatly extending the service life.

9.Equipped with special section steel made track shoe, which has good wear resistance and high temperature resistance.

Product IMG:

326236 (6)
326236 (5)
326236 (4)
326236 (3)
326236 (2)
326236 (1)
