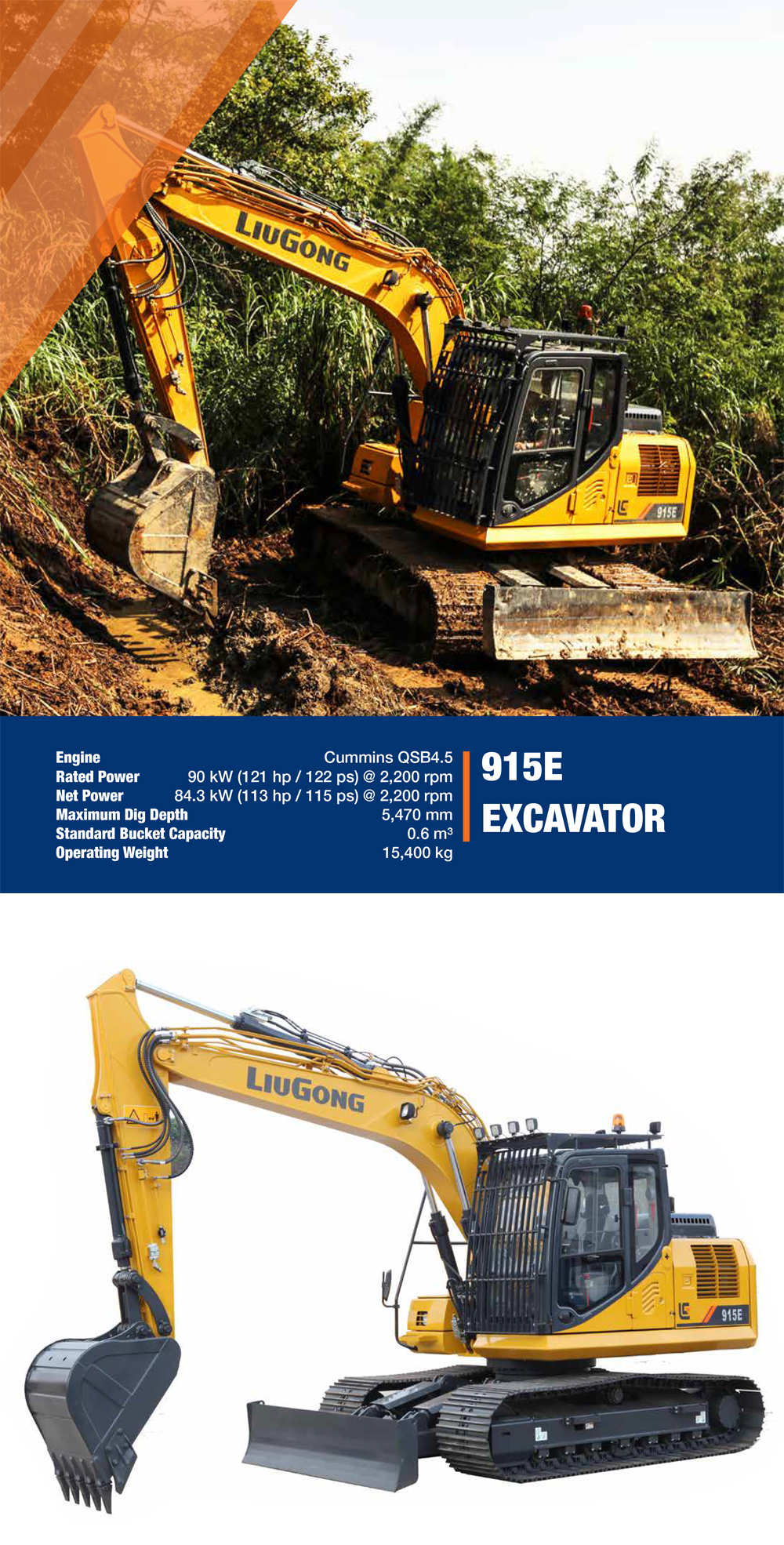

LIUGONG 15 Tons China Mini Excavator Machine 915E

Introduction:

Proven negative flow hydraulics have optimize the main control valve, improved the speed of front end cylinders, while cutting down the hydraulic system’s damper loss, leading to much better working efficiency. The pilot valves matching with the main control valve offer precise control.


Product Detail

Product Tags

Video

Features

Proven negative flow hydraulics have optimize the main control valve, improved the speed of front end cylinders, while cutting down the hydraulic system’s damper loss, leading to much better working efficiency. The pilot valves matching with the main control valve offer precise control.

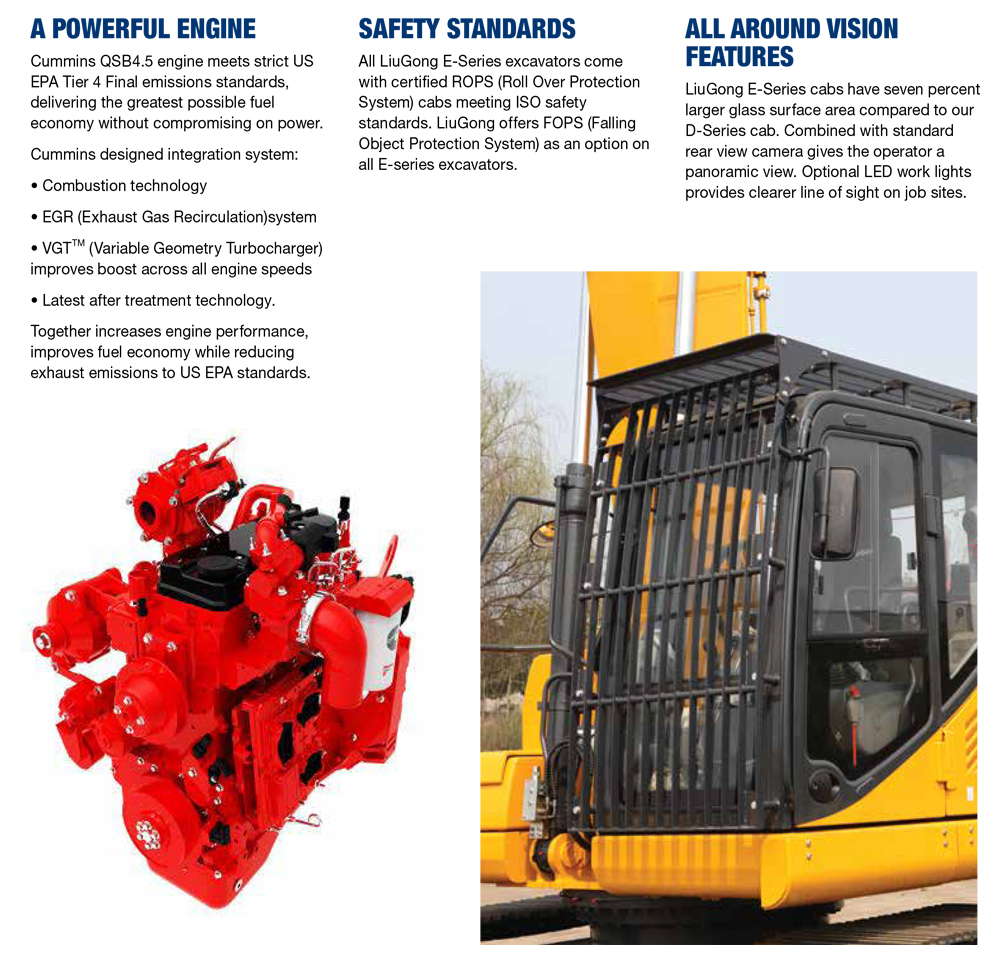

The 915E model is powered by the latest generation, low emission engine, with enhanced power output, improved breakout force and faster cycle times.

The LiuGong E series excavator features 6 selectable working modes that optimize performance and fuel consumption to your specific conditions

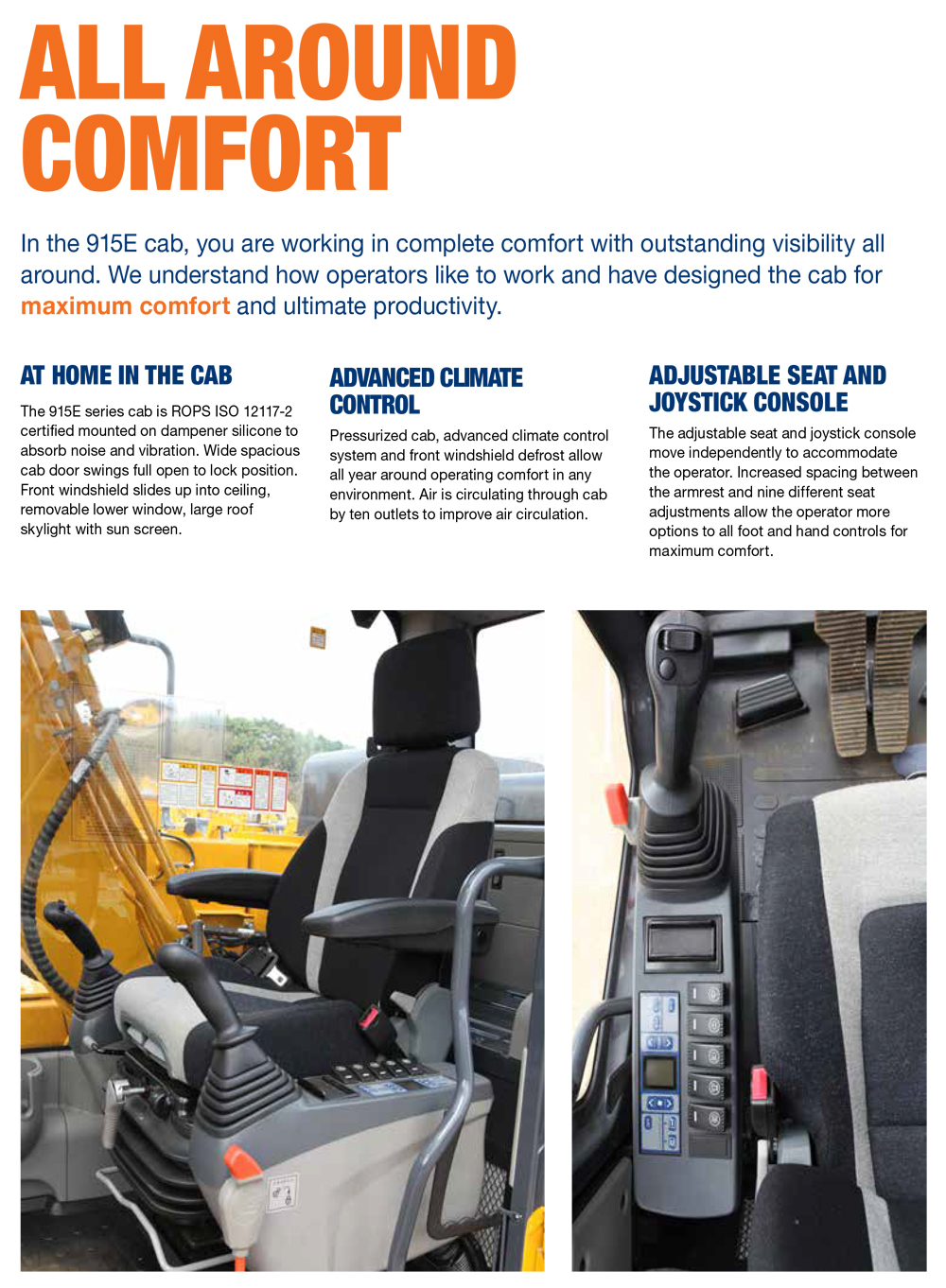

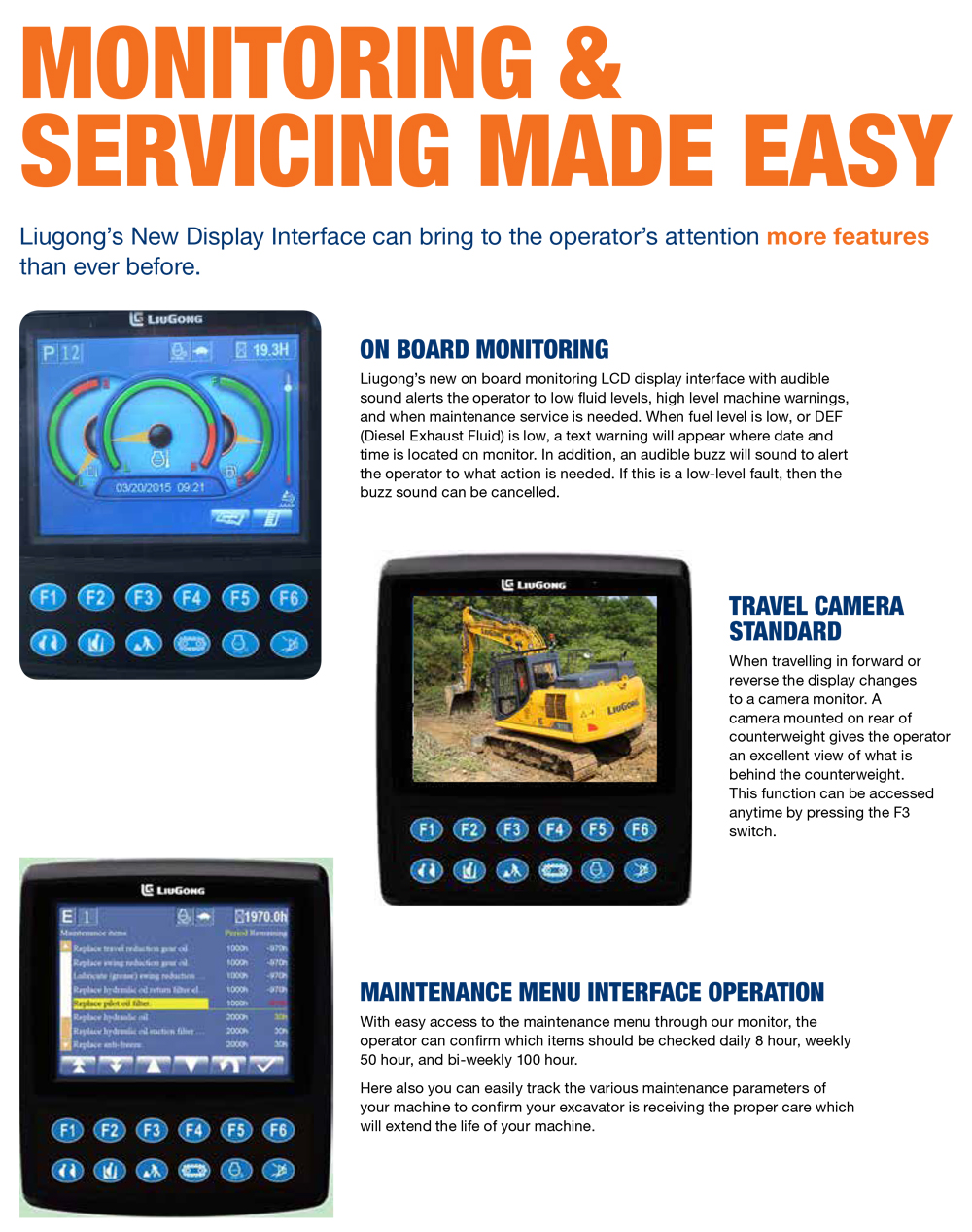

Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive leg room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment

1
2
3
4
5
6
7
8
9
10
11
12
13
14

Specifications

Operating weight with cab 13800 kg
Engine power 86 kW (115 hp/117 ps) @ 2200 rpm
Bucket capacity 0.36 - 0.73 m³
Maximum travel speed (High) 5.1 km/h
Maximum travel speed (Low) 3.3 km/h
Maximum swing speed 12.94 rpm
Arm breakout force 64.9 kN
Arm breakout force Power boost 70 kN
Bucket breakout force 89.8 kN
Bucket breakout force Power boost 96.9 kN

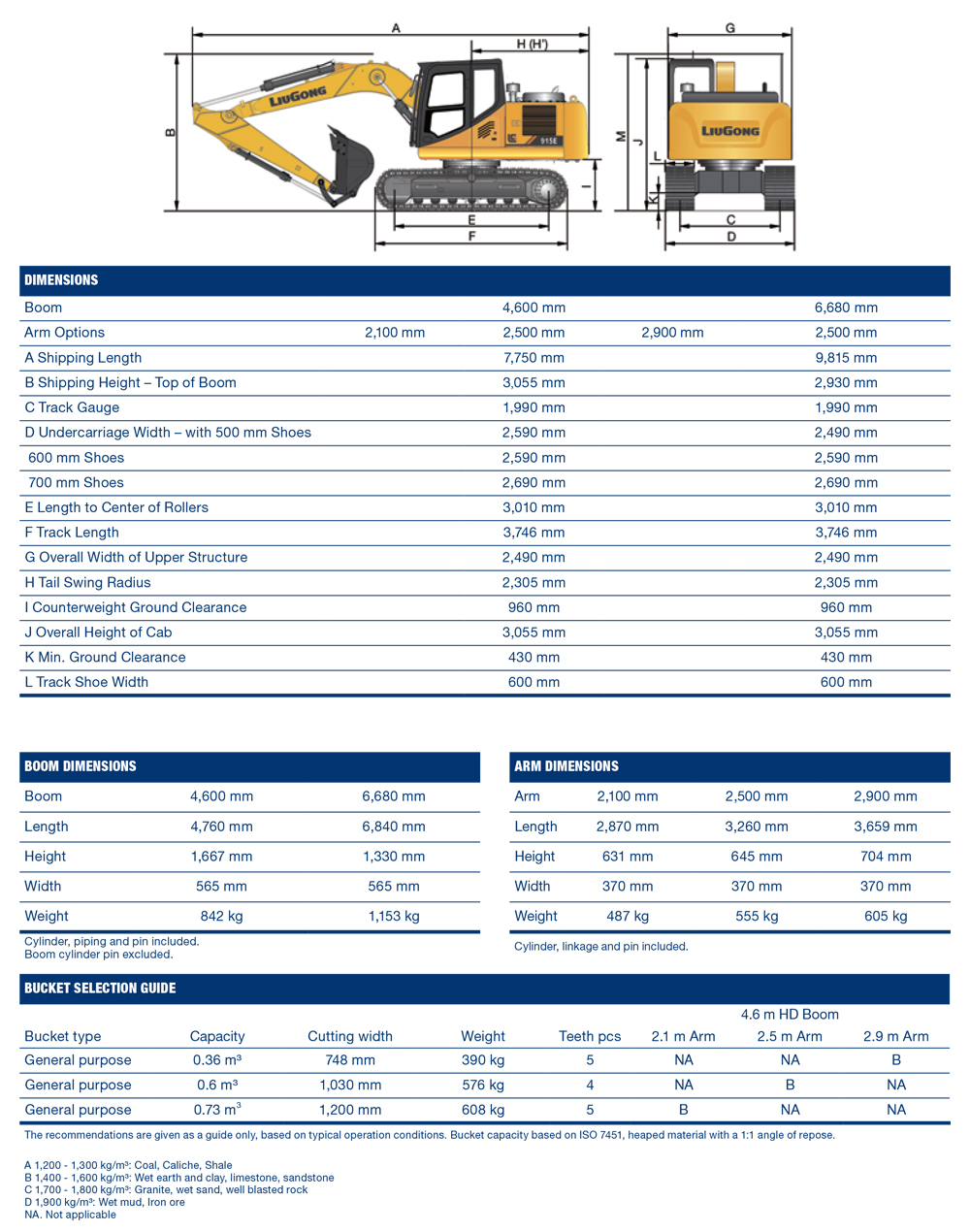

Shipping length 7750 mm
Shipping width 2490 mm
Shipping height 2930 mm
Track shoe width (std) 500 mm

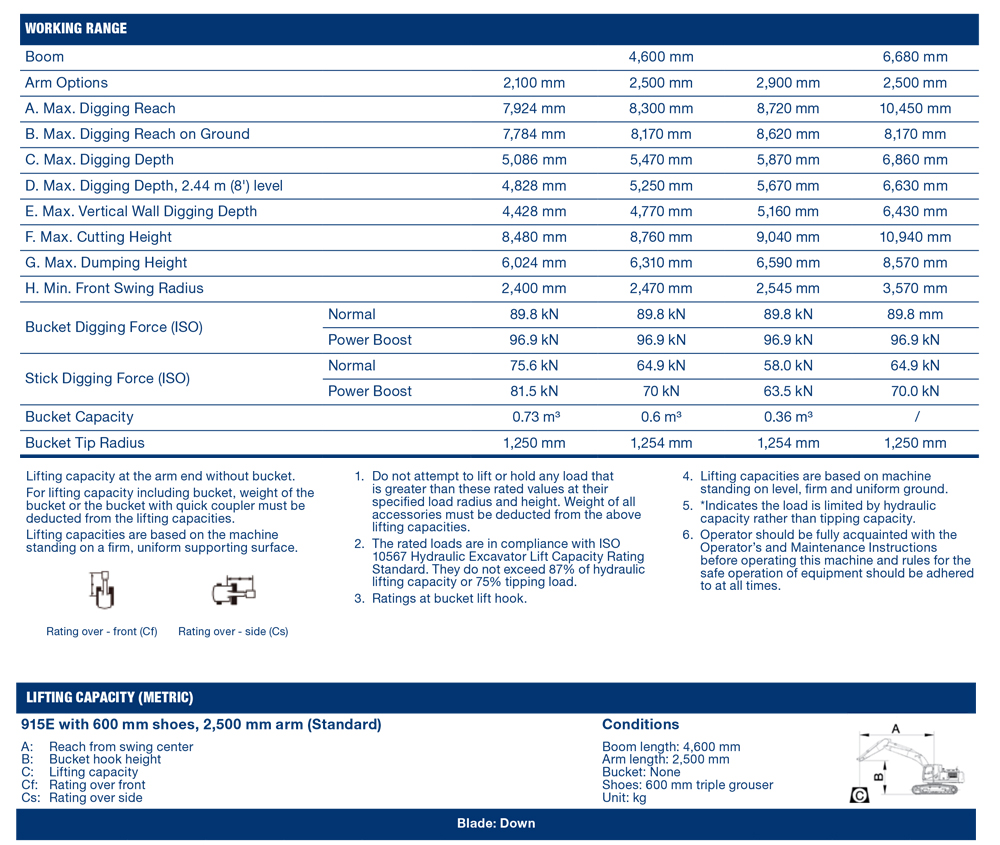

Boom 4600 mm
Arm  2500 mm

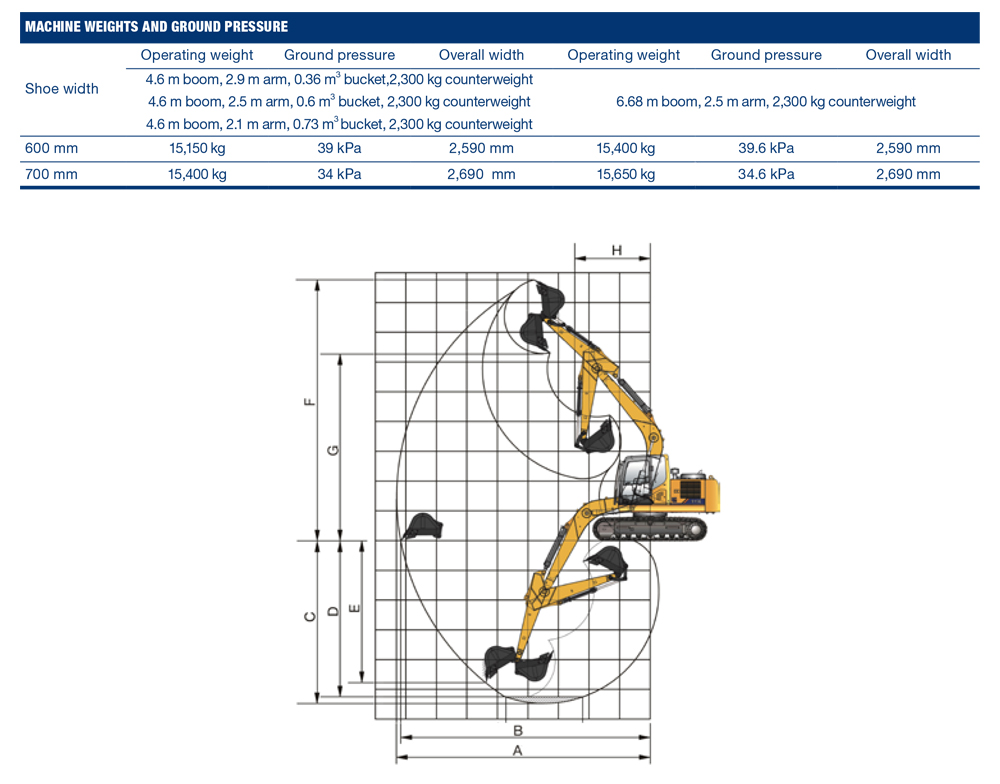

Digging reach 8300 mm
Digging reach on ground 8170 mm
Digging depth 5470 mm
Vertical wall digging depth 4770 mm
Cutting height 8760 mm
Dumping height 6310 mm
Minimum front swing radius 2470 mm
Model Cumz QSF 3.8
Emission Stage IIIA
System maximum flow 2x120 L/min (2x32 gal/min)
System pressure 34.3 MPa
