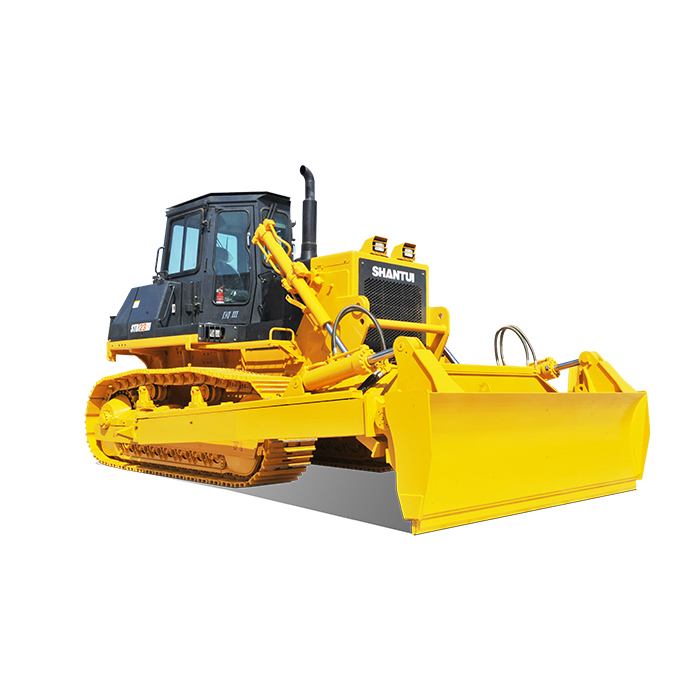

SHANTUI 25ton STR23 Trimming Crawler Bulldozer for Sale

Introduction:

Power System

● The installed QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 180kW, featuring high torque reserve coefficient.

● The radially sealed intake system is applied to effectively prolong the engine life


Product Detail

Product Tags

Video

CHARACTERISTIC

Drive system

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market

Driving/Riding Environment

● The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

● The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.

● The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience

Working adaptability

● Shantui’s stable and reliable chassis system is applicable to diversified severe working conditions.

● The product features long ground length, high ground clearance, stable driving, and good trafficability.

● The trimming blade and the rear guard are installed to achieve better operating adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher operating safety and reliability

Easy maintenances

● The structural parts inherit the excellent quality of Shantui’s mature products;

● The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.

● The openable large-space side hoods make the repairs and maintenance easier.

● All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances

246346 (2)
246346 (1)

Paracteristic

Parameter name STR23(Trimming bulldozer, ore version)
Performance parameters
Operating weight (Kg) 25540
Ground pressure (kPa) 69
Engine
Engine model QSNT
Rated power/rated speed (kW/rpm) 179/2000
Overall dimensions
Overall dimensions of machine (mm) 5535
Driving performance
Forward speed (km/h) F1:0-3.8 F2:0-6.8 F3:0-13.8
Reversing speed (km/h) R1:0-4.9 R2:0-8.5 R3:0-14.3
Chassis System
Center distance of track (mm) 2000
Width of track shoes (mm) 560
Ground length(mm) 2840
Tank capacity
Fuel tank (L) 485
Working device
Blade type Trimming blade
Digging depth (mm) 740
Ripper type
Ripping depth (mm)
