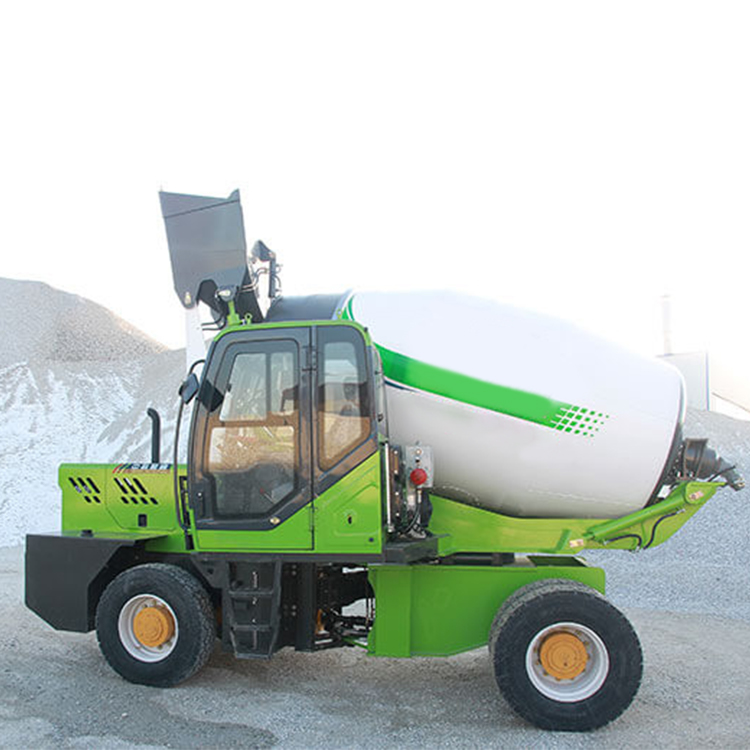

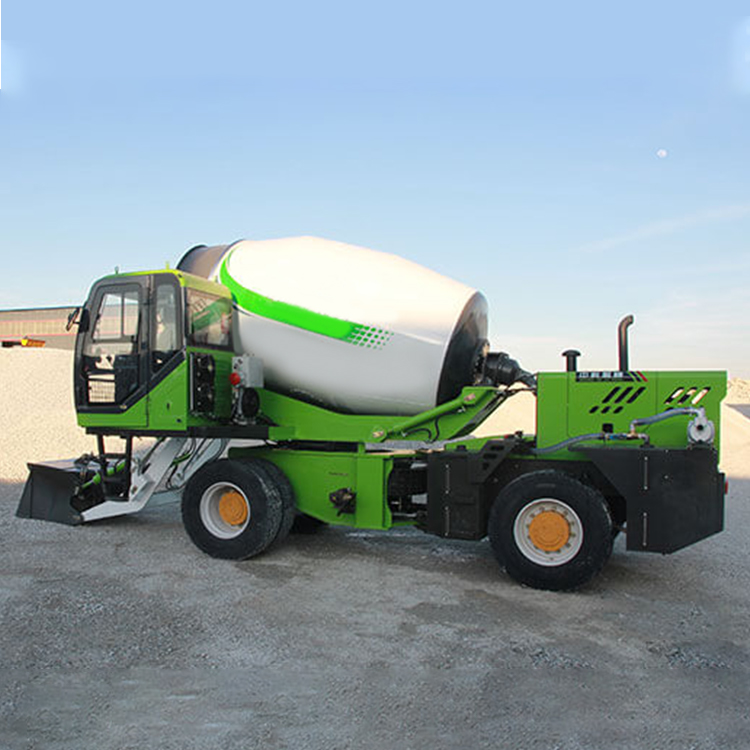

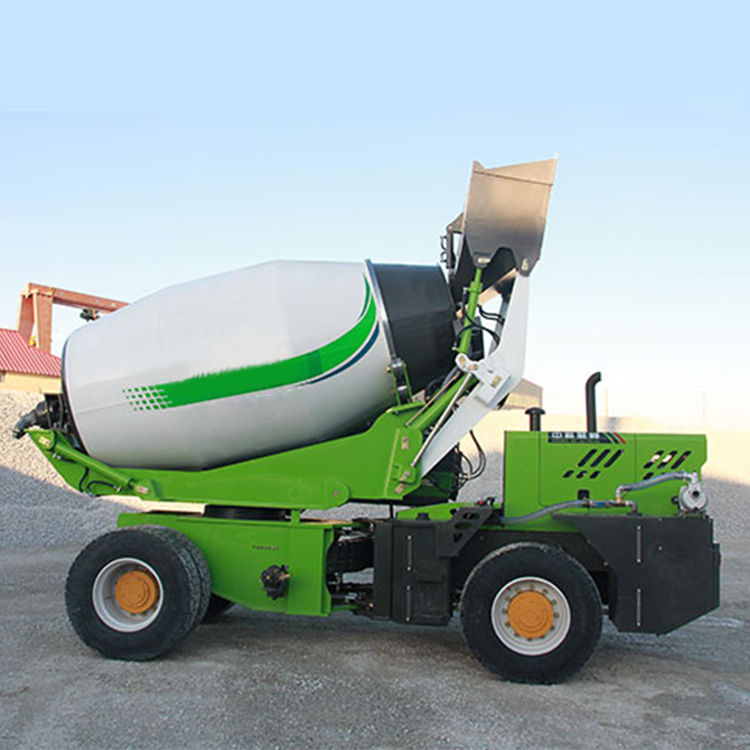

CNCMC 5.5m3 CSM-55 Self Loading Mobile Concrete Mixer Batch Truck

Introduction:

The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

Inquiry

Product Detail

Product Tags

Features

1.CSM-55 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture..

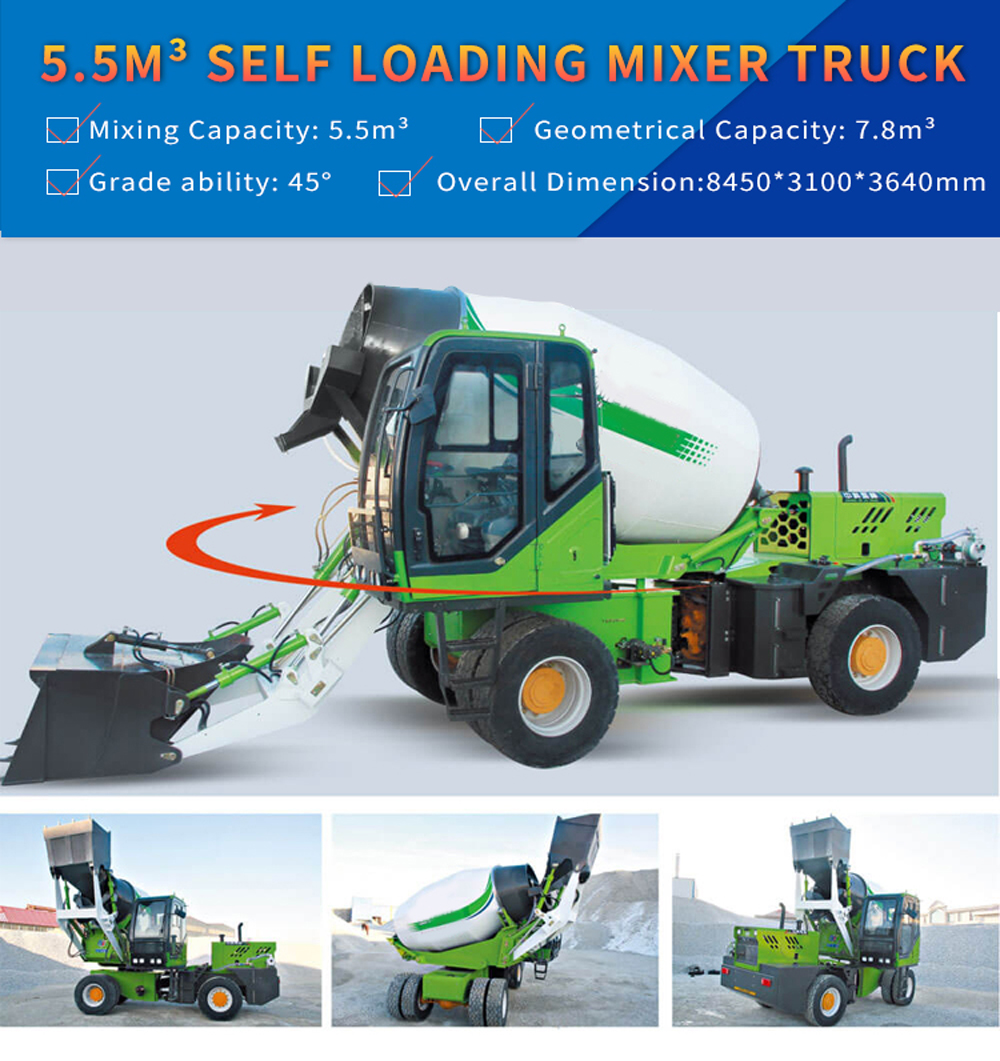

2. Cab and mixer drum can be integrated , rotate 270° together, which makes forward-reverse universal. Rolling drum can also be lifted up 20° to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.

3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.

4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.

5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.

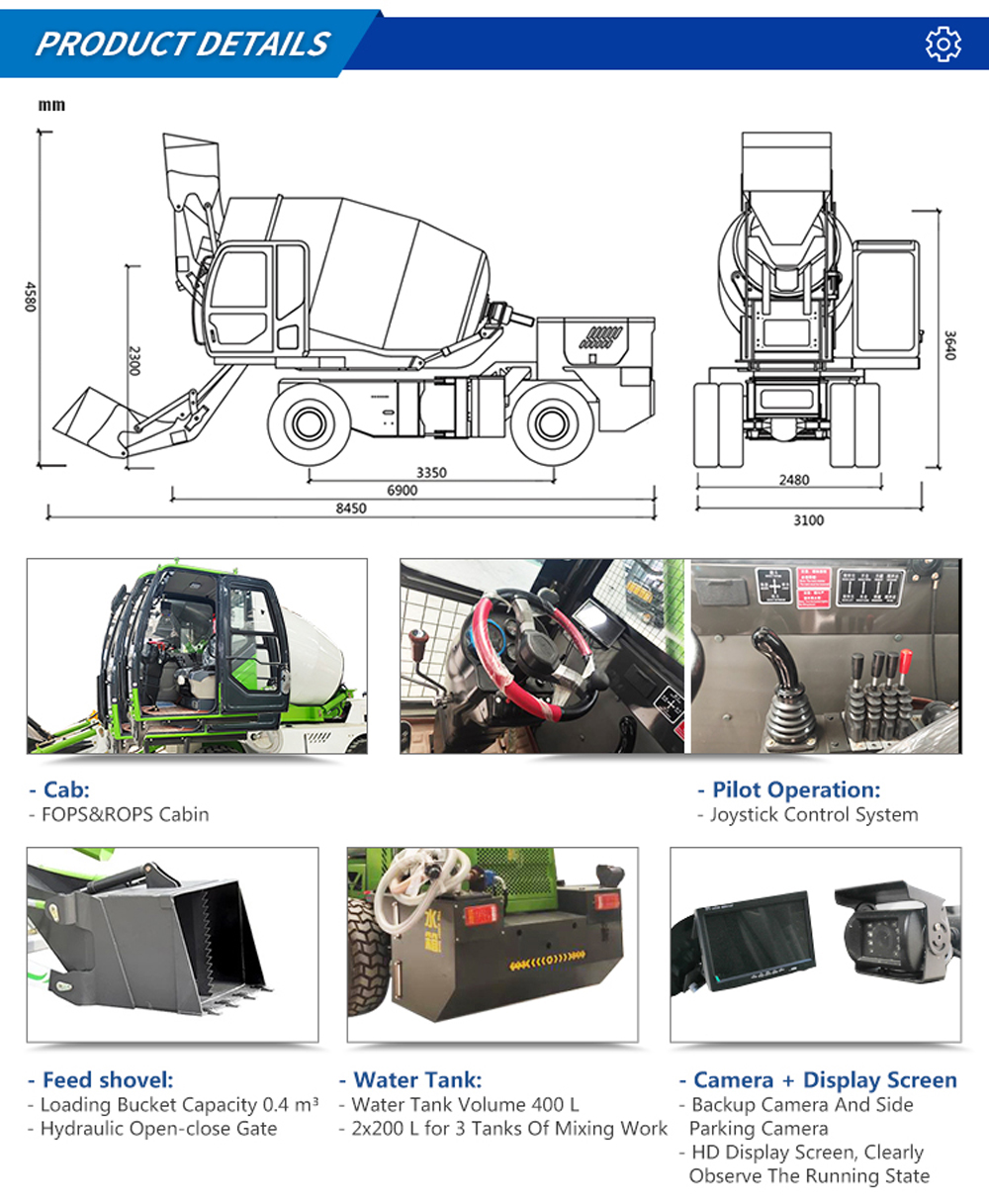

Product details

Model	CSM-55	Max. Water suction Volume	550 L/min. (Self-priming Hydraulic Water Pump)
Mixing Capacity	5.5m³	Water tank Volume	2x430 L
Geometrical Capacity	7.8m³	Max. Travel Speed	42 km/h
Concrete Output	5.5m³/batch, 22m³/h	Grade ability	45°
Drum Rotating Speed	16.5 Upto 20 rpm	Min. Turning Radius	6.2 m
Drum Rotating Angle	270°	Operating Weight	11,200 Kg
Model	FAWDE 6110	Max. Load	13,200 Kg
Loading Bucket Capacity	0.8m³	Max. Gross Weight	24,400 Kg
Loading Times to Full Drum	7 Times	Overall Dimension (LWH)	8450*3100*3640 mm ( Full Height to 4580 mm )
Discharge chute	2 Sets	Fuel Tank Volume	75 L
Total Hydraulic System Capacity	75 L	Oil Tank Volume	16 L
