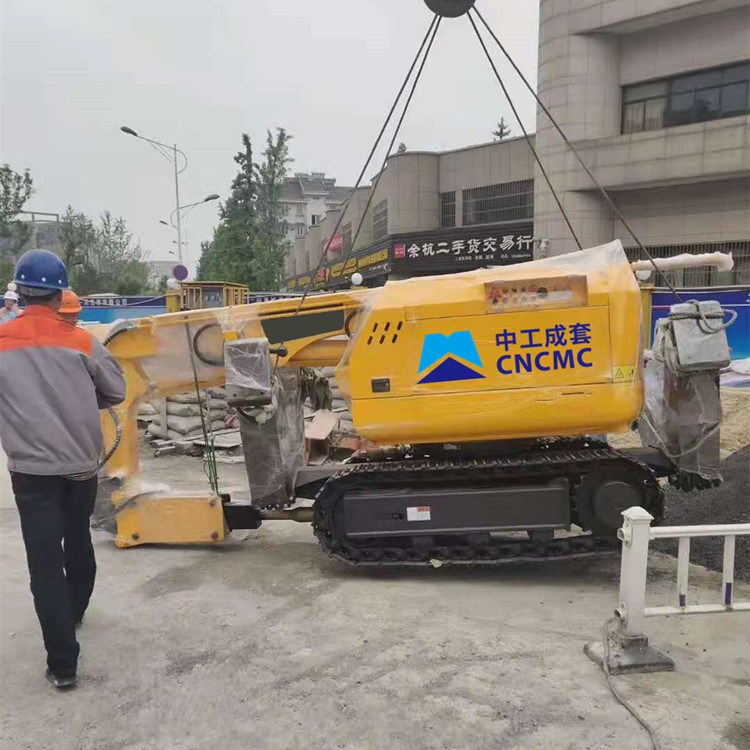

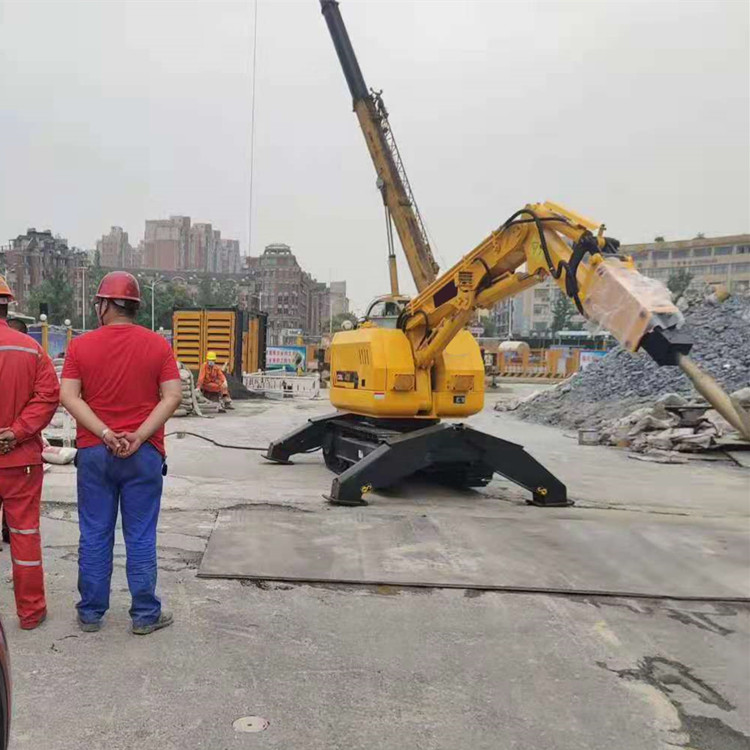

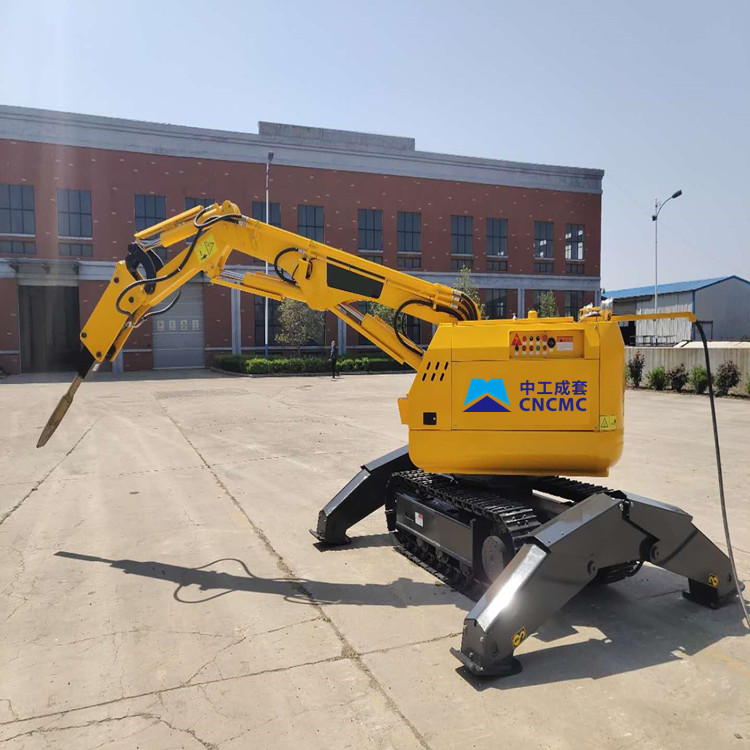

CNCMC PC100 small Demolition Robot remote control demolition breaker machine

Introduction:

Remote Control Demolition Robot is designed to remove large concrete structures in a very secure way, it can largely reduce the risks of falling rubble and debris, it is robust and powerful, and the machine is capable to break, crunch, clear, drill and scrabble any concrete structure


Product Detail

Product Tags

Specification

Basic performance
Hammer model PC100
Work radius 3.5m
Grade ability 30°
Rotary speed/range 6rpm/360°
Max walking speed 2.5km/h
Outrigger 4, frog type
Noise level 85.8dB(A)
Weight 1050kg
Dimension(LxWxH) 1900x800x1200 (mm)
Hydraulic system
Drive mode Electron-hydraulic proportional
Hydraulic pump Type Load sensitive variable axial piston pump
Hydraulic valve type Electron-hydraulic proportional valve
Hydraulic system capacity 40L
Max flow rate of hydraulic pump 50L/min
System pressure 16Mpa
Power system
Power option 1 Diesel engine 16Kw/2100rpm
Power option 2 Electric motor 14Kw(380V/Hz)
Start mode Soft start
Control system
Operation Portable remote controller
Signal mode Digital
Control mode Wired/wireless
Remote control distance 300m

Features

Remote Control Demolition Robot is designed to remove large concrete structures in a very secure way, it can largely reduce the risks of falling rubble and debris, it is robust and powerful, and the machine is capable to break, crunch, clear, drill and scrabble any concrete structure.

The operator will have a comprehensive view of the work being undertaking as the machine is radio controlled thus providing a unique perspective. The operator is free to select the best location from which to supervise and progress the works at a safe distance.

Robotic demolition brings incredible benefits: allowing access to areas not possible with traditional methods, such as cross a single doorway, staircases, carried by elevator, safety for HAVS, high altitude demolition, cleaning of cement plant kiln, cleaning of steel smelting furnace, cleaning of radioactive cement for nuclear power plant, etc.

Main Features

1. Small size, light weight, suitable for indoor, roof, tunnel underground and other narrow spaces.

2. Two Power modes, diesel type insures long working hours, Electric type effectively cut noise.

3. Select high-definition wireless image transmission system to realize remote control.

4. The operation interface is intuitive and easy to operate.

5. Wireless remote control operation mode to keep operators away from dangerous sites.

6. Four legs support, low center of gravity, strong stability, and can work on uneven high slope surface. Cost-effective, safety, labor-saving.

8. Three-arm structure, 360° rotation, wide operating range.
