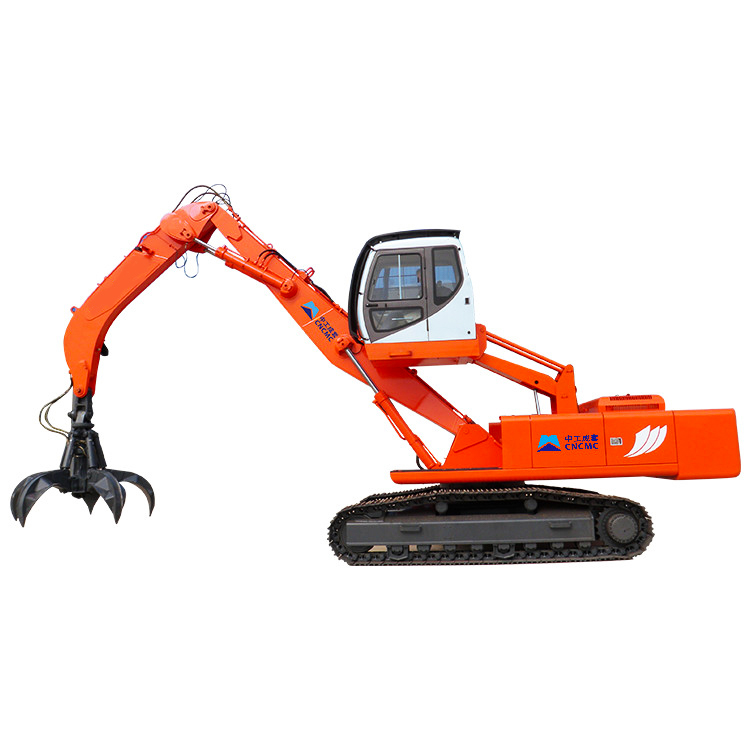

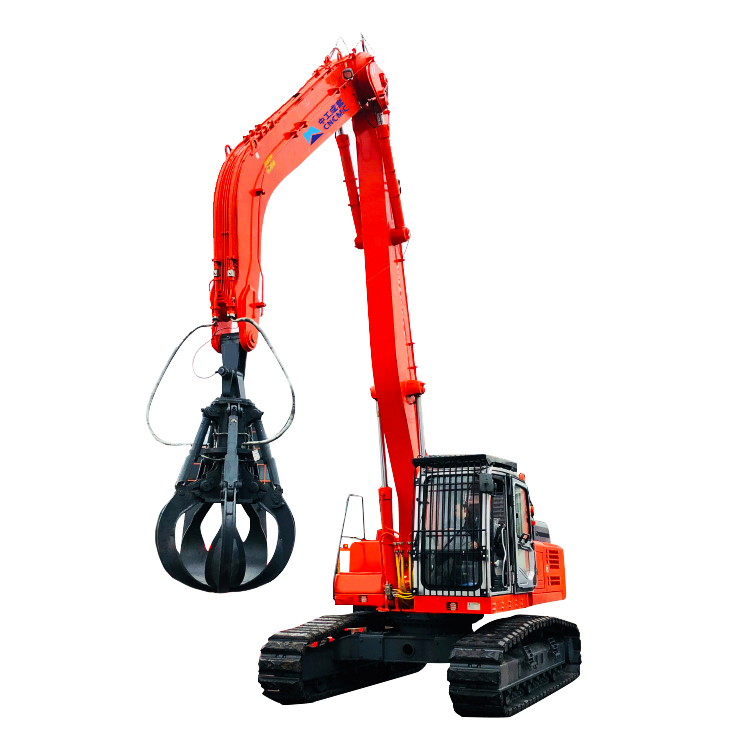

CNCMC—CNMH32 Hydraulic Material Series Handler

Introduction:

CNCMC’s material handlers are efficient special equipment for loading and unloading, specially designed for loading and unloading working conditions (including special main valves, special hydraulic systems, etc.), not simple modification from excavators.

Applicable for loading, unloading, stacking, transferring and packing in scrap steel yards, wharf yards, railway yards, as well as light material industry.


Product Detail

Product Tags

Features

1. CNCMC series material handler is the latest products in CNCMC, it is equipped with the world famous brand hydraulic components. it adopted special undercarriage, enlarge distance between sprocket and idler, and two tracks, largely improve the working stability and elevating capacity; develop the working attachment further, largely improve the operation efficiency under ensuring the working reaching.

2. CNCMC material handlers have several individual scheme combinations between power unit, working attachment, working tools, driver’s cab and undercarriage, can be fully satisfied the personalized requirements of customers.The following advanced systems can be selected individually or in combination as required: Monitoring system with displayer, electronic weighing system, radiation detection system, automatic central lubricating system, rubber track, tools applicable (Multi-tine Grab, Clamshell grab, Wood grab, Hydraulic shear, etc.).



Product parameter

Item

Unit

Data

Machine weight

t

31

Diesel engine power

kW

169

Rated speed

rpm

2000

Max. flow

L/min

2×224

Max. operation pressure

MPa

30

Swing speed

rpm

12.3

Travel speed

km/h

3.4/5.2

Cycling time of operation

s

16-22

Working attachment

Data

Boom length

mm

6800

Stick length

mm

5800

Capacity with multi-tine grab

m3

0.8 (semi-closure)/1.0 (open type)

Max. grabbing reach

mm

13407

Max. grabbing height

mm

10874

Max. grabbing depth

mm

7415
