Heli 2-3.5t Engine Forklift-seriesG Series diesel _ gasoline _ LPG counterbalanced Forklift Trucks

Introduction:

This lift truck is equipped with high performance engine to meet EU EC and USAEPA new regulations.

The core components such as gearbox and drive axle are made by ourselves , and the key components are imported , with low failure rate and reliable quality.

Using cast steering bridge , good performance , high reliability and long life.


Product Detail

Product Tags

Video

Product intro

This lift truck is equipped with high performance engine to meet EU EC and USAEPA new regulations.

The core components such as gearbox and drive axle are made by ourselves , and the key components are imported , with low failure rate and reliable quality.

Using cast steering bridge , good performance , high reliability and long life.

The lifting system is equipped with a buffer function as standard , so that the goods fall smoothly and the operation is safer .

Equipped with LED energy-saving lamps , with high brightness , low energy consumption and long life.

The modular electrical system with P56 protection level is adopted , which is safe reliable and convenient to maintain .

The main structural parts of the truck have high safety factor and strong carrying capacity.

Equipped with a large handle on the car , the control handle is placed on the right , there versing and light handles are arranged in a car style , a small-diameter steering wheel , and a floating safety seat , which is easy to operate and comfortable to experience .

Equipped with automatic engine monitoring system , driver presence sensing system parking brake safety protection device , improve the trucks ability to prevent and control operational risks and improve the safety performance of the truck .

Optimized arrangement of the channel steel , cylinder and chain of the mast , with a wide front view.

The style of the instrument panel is uniform with that of the whole truck , with beautiful appearance and strong affinity.

Workplace : Widely used in factories , warehouses , stations , docks , airports , ports , etc.for loading , unloading and handling of packaged goods . After being equipped with other work attachments , it can also be used for the loading and unloading operations of bulk cargo and other unpack aged goods

1
2
3
4
5
6
7

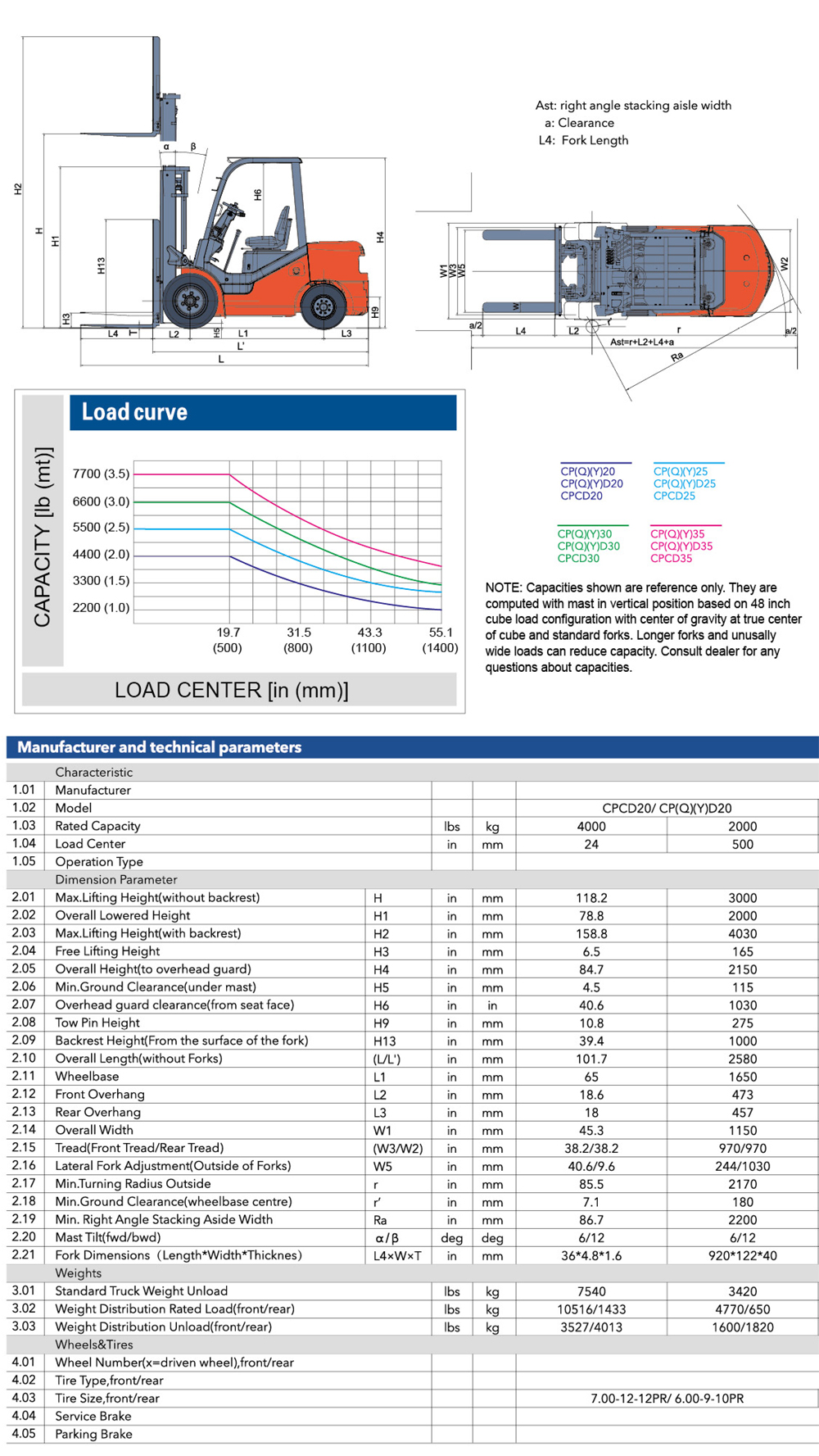

Main Performance Parameters

Model

CPCD20/25/30/35T

Power type

Diesel

Driving style

Seated

Load capacity

kg

2000/2500/3000/3500kg

Load center

mm

500

Overall length

mm

2510/2710

Overall width

mm

1150/1225

Product Display

image-3
2
WechatIMG30

FAQ

HOW IS YOUR PRODUCT QUALITY COMPARED WITH OTHERS' ?

We are a state-owned company with good reputation, all of our products are good quality with cost-effective price. Any after-sales service problems, you can contact us directly without hesitation.

HOW LONG IS OUR PRODUCT WARRANTY ?

The guaranteed period for the main parts of our new machine is 12 months commencing from the issue date of the Bill of loading or within 1500 working hours, depends on whichever occurs first.

The main pars include: the engine, the hydraulic pumps, hydraulic control system, all kinds of hydraulic valves, hydraulic motors, hydraulic gear pumps, hydraulic cylinders, radiator, all pipes and hoses, chassis and shafts, quick-attach system and attachments, etc.

WHAT ARE THE TERMS OF AFTER SALES SERVICE ?

During the guaranteed period, service of guarantee will be supplied on condition that the machine itself appears to have defects. We will supply the maintenance component parts of the machine free of charge.

We also offer engineer training and technology supporting during machine all life

Overseas engineer service is also available if it is agreed by both parties.

HOW LONG IS THE DELIVERY TIME ?

In the case of stock, the delivery time is 7 days after receipt of the balance. In the case of non-stock, the delivery time is 25 days

WHICH PAYMENT TERMS CAN WE ACCEPT ?

Normally we can accept T/T term or L/C term.

(1) On T/T term. 30% by T/T as down payment , the balance will be paid before shipment.

(2) On L/C term. Irrevocable Letter of Credit at sight.
