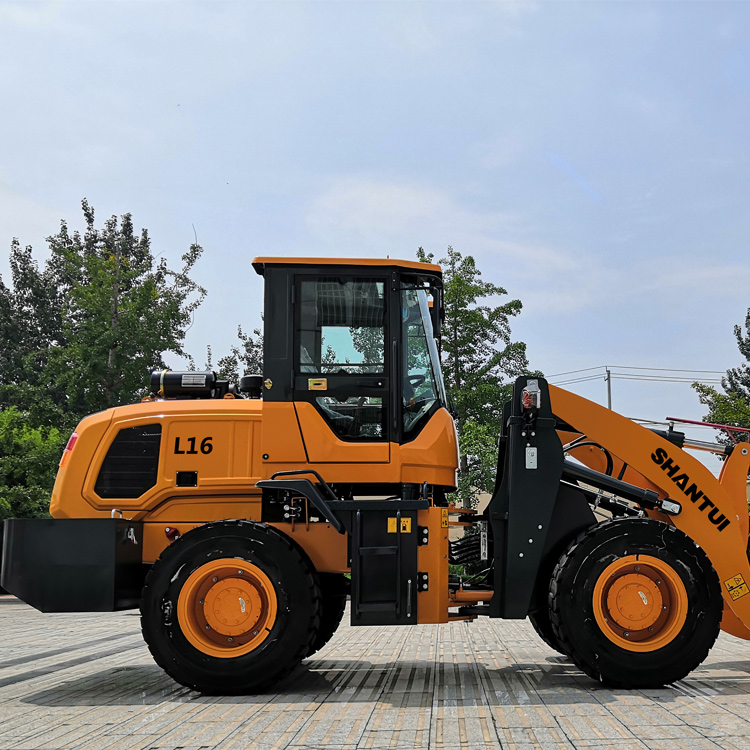

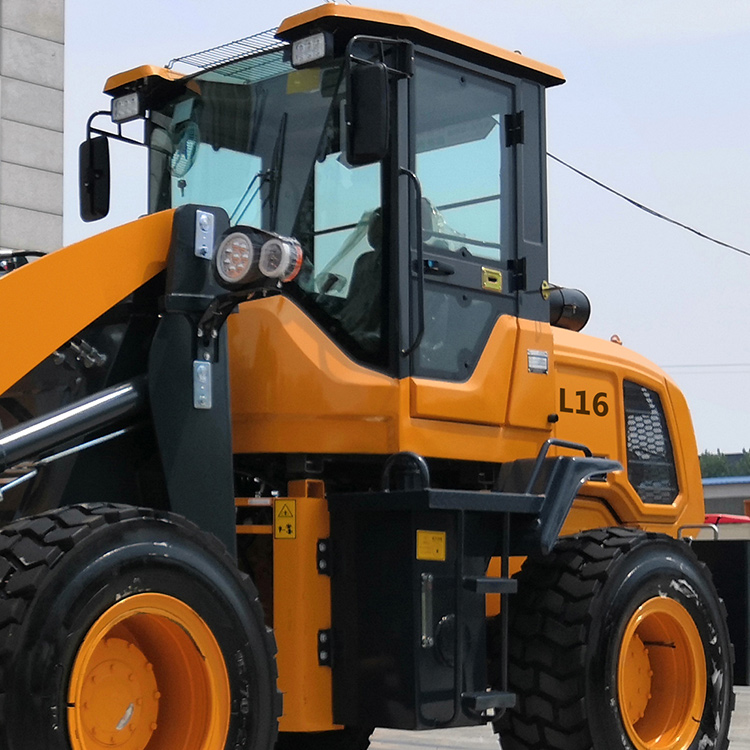

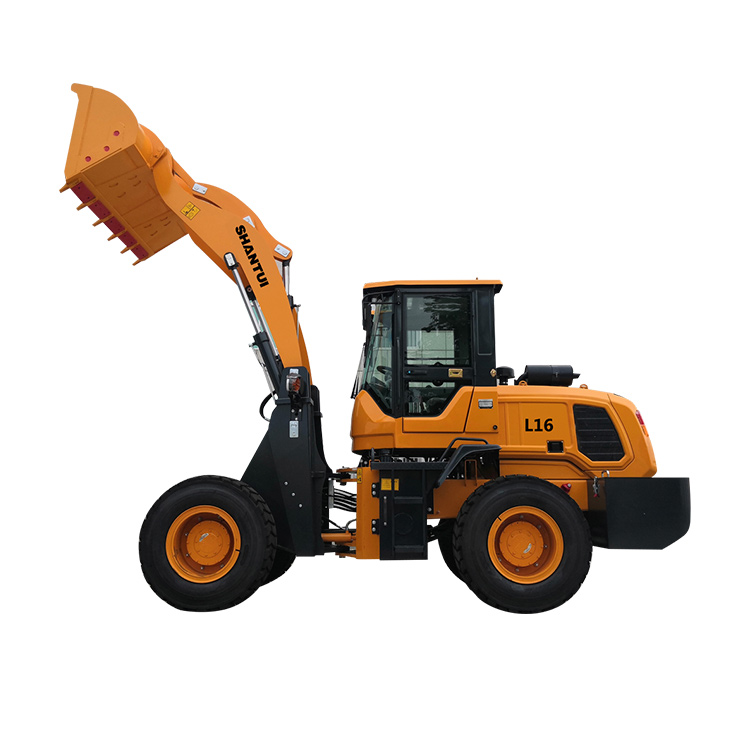

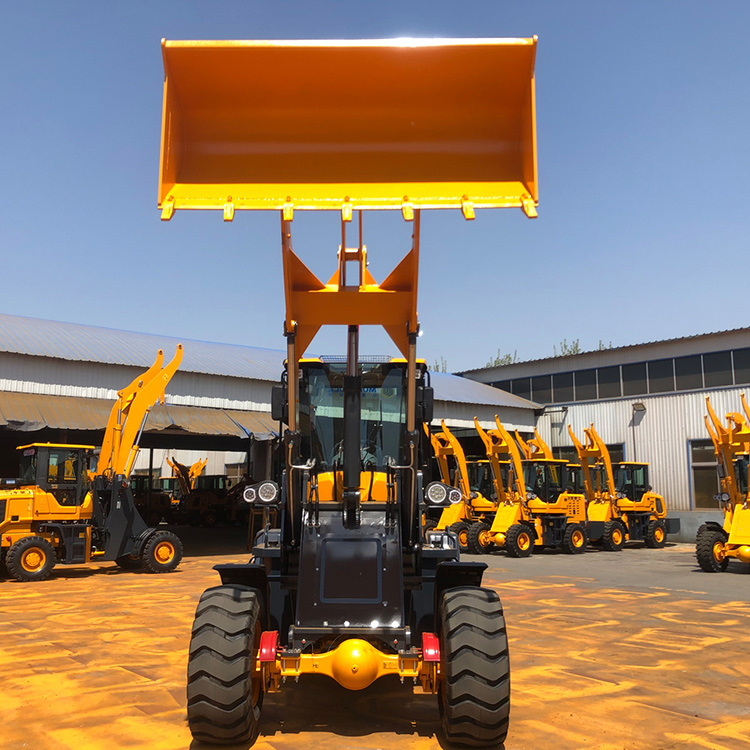

shantui 1.6 ton L16-C3 cheap price for sale mini wheel loader

Introduction:

The L16 wheel loader features operator comfort, performance and versatility. Size, power, performance and work tool interchangeability make this machine ideal for a wide range of jobs.Fast cycle times help you move more material. Large spacious cab with joystick control keeps you comfortable throughout the workday, allowing you to get more done.


Product Detail

Product Tags

features

The engine adopts environmental-friendly XINCHAI498 engine, featuring strong power, reliable performance, and high efficiency and energy-saving.

It’s equipped with Shantui’s  torque converter for power transmission, featuring good power matching, stable motion, and more powerful operations. The split structures ease the repairs and maintenances.

The pipelines are arranged smoothly and the oil tank layout is adjusted to improve the system reliability and maintainability.

The 3,200mm dumping height, guarantees the excellent loading performance and ensures the carrying of higher torsional torque, featuring extensive loading/unloading scope and high efficiency.

The optimized 2,110mm wheelbase guarantees outstanding site adaptability and flexibility and the operation stability to fulfill the loading and unloading operations with ease.

Application for small and medium-sized gravel yards, mixing stations, small coal mines, farms, ranches, and urban construction and road construction.

Parameter

Models L06 L08 L10 L12 L15 L16
engine details model yanmar 3tnv88-bdldw xinchai490 xinchai490 xinchai490 xinchai490 xinchai490
rated power kw 18.9 37 37 37 42 42
rated speed rpm 2200 2650 2400 2650 2400 2400
optional kubota xinchai xinchai xinchai xinchai xinchai
operating specifications bucket capacity m3 0.3 0.48 0.53 0.53 0.6 0.63
bucket width mm 1136 1530 1580 1580 1740 1800
loading capacity kg 600 800 1000 1200 1500 1600
operation weight kg 2000 2100 2700 3300 4040 3850
overall width mm 4030 4500 4920 5140 5940 5500
overall length mm 1136 1530 1577 1600 1705 1800
overall height mm 2499 2450 2510 2670 2600 2700
dumping height mm 2167 2500 2140 2800 2485 3200
dumping reach mm 1132 500 1171 650 1452 700
wheel base mm 1540 1820 1890 2050 2190 2110
transmission performance transmission type automatic automatic automatic automatic automatic automatic
control type joy stick joy stick joy stick joy stick joy stick
brake system drive axle hydraulic 130 130 isuzu isuzu small wheel hub reduction
breakout force kn 20.5 22 22 22 22 36.8
tyre standard type 10/75-15.3 8.25-16 10-16.5 20.5-16 23.5-16 23.5-16
