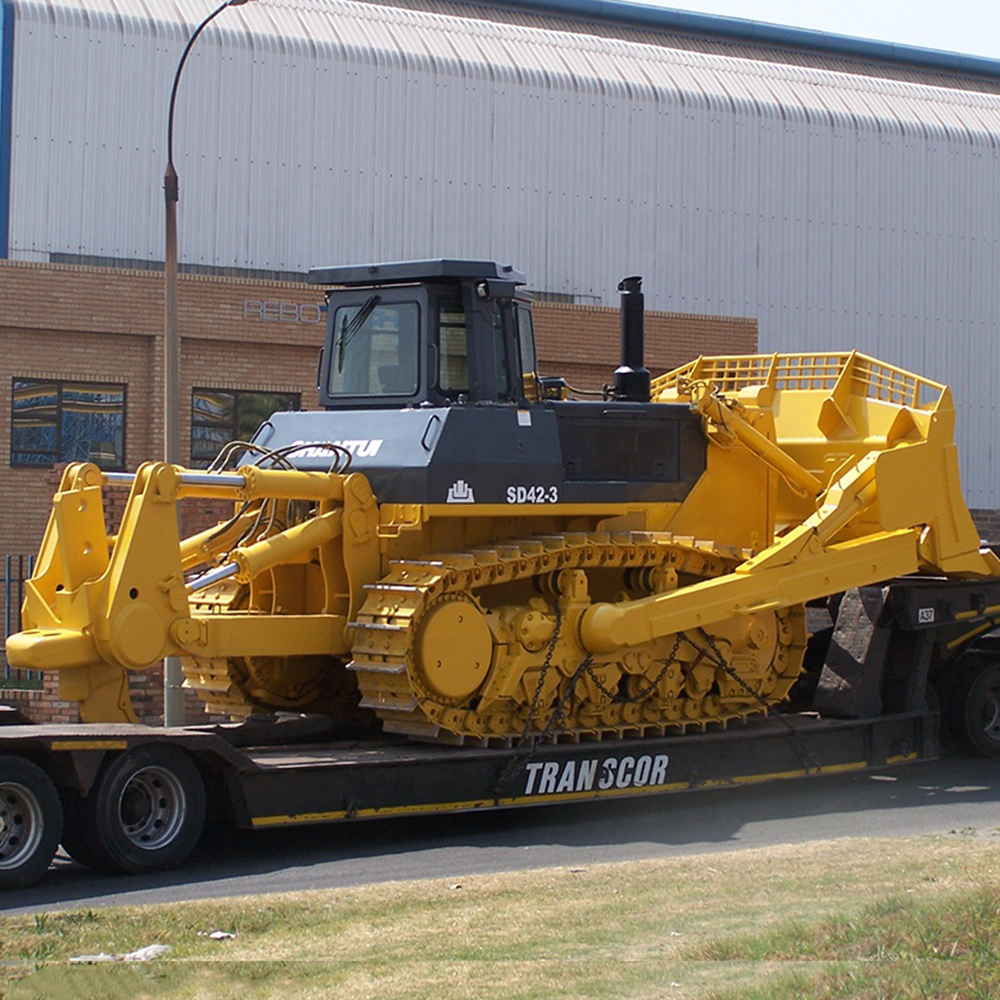

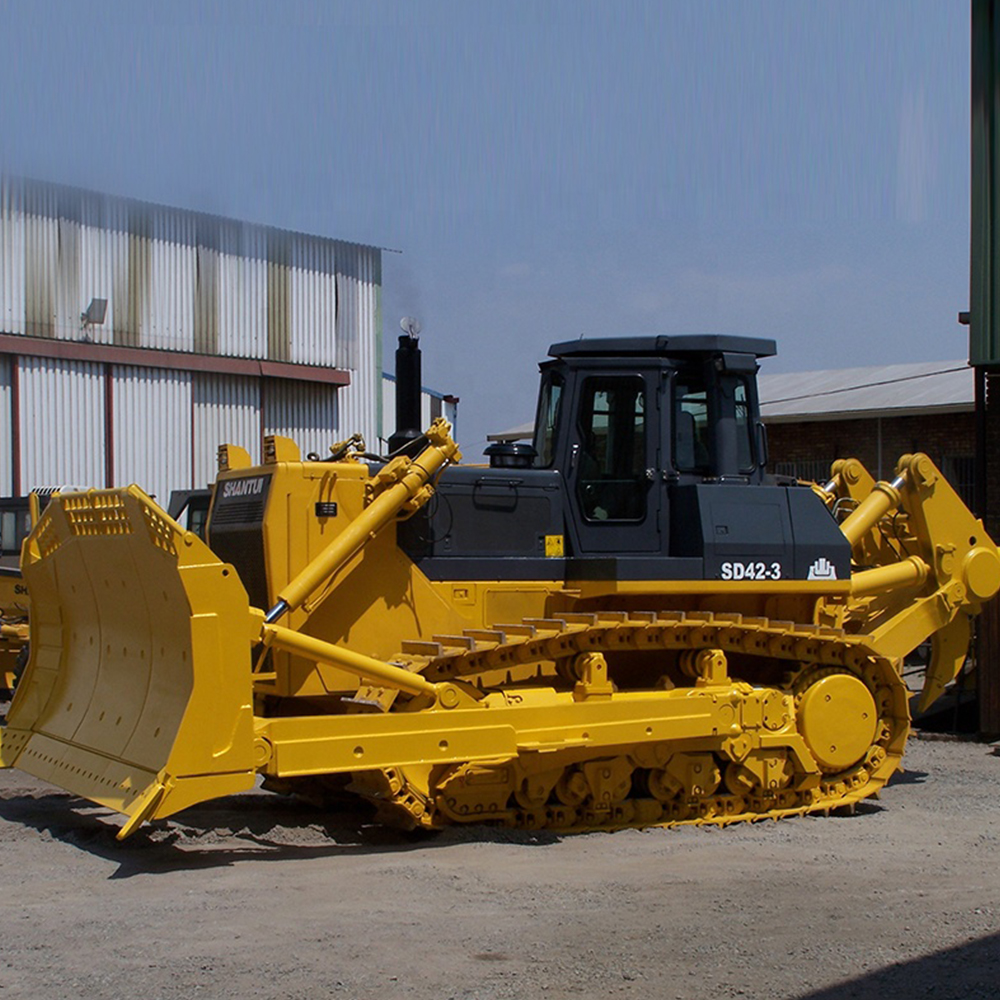

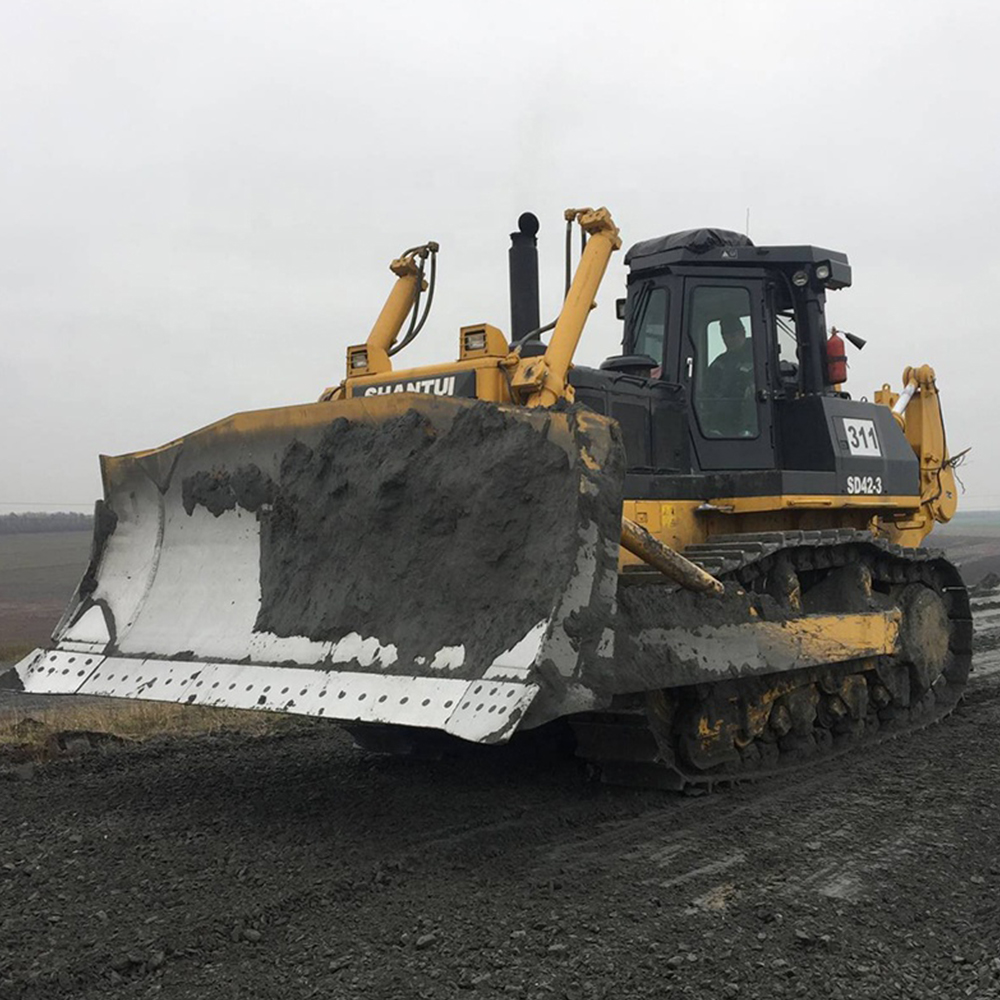

SHANTUI 54.5ton 450hp Attractive Price Shantui Capacity crawler_ track Bulldozer SD42-3 for sale dozer fiyat

Introduction:


Power system

● The Cummins KTA19 vertical 4-storke turbocharged engine features strong power.

● The three-element single-stage single-phase hydraulic torque converter features high operating efficiency.


Product Detail

Product Tags

Video

Transmission system

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Driving Environment

● The ergonomic cab features large space, excellent vision, and good airtightness.

● The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

● The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to realize low vibrating noise.

● The A/C and heating system, the intelligent display and control terminal with integrated instruments, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.

● The safety passage system of the machine guarantees the driver's safety.

Work Adaptability

●The undercarriage system adopts type K track roller elastic suspension to achieve higher ground area, higher traction force, and more powerful traveling of machine on uneven roads.

●The rollover protection structure is installed on the main frame to achieve higher strength and reliability.

●The articulated points of the blade are moved forward to realize more reasonable force application and long life of cylinder.

●The pivot shaft suspension and the independently installed final drive achieve higher design safety and reliability.

Easy Maintenance

●The structural parts inherit the excellent quality of Shantui mature products.

●The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

●The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

●The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

Parameter

Engine Model & type A19-C525 , In-line, water-cooled, 4-cycle, turbo charged, intercooled, direct injection
Horsepower Gross power: 340/450/2000 kW/HP/rpm // Net power: 313/450/2000 kW/HP/rpm
Number of cylinders 6-150 * 150 mm (bore * stroke)
Piston displacement 15.9 L
Operating weight 54.5 t (Ripper included)
Power transmission system Torque converter 3-element, 1 stage, 1 phase
Transmission Planetary gear, multi-disc clutch,hydraulically connected, forced lubrication
Main drive Spiral bevel gear, splash lubrication
Steering clutch Wet, multi-disc, spring loaded,hydraulically separated, hydraulic control
Steering brake Wet, floating band, hydraulic control
Final drive 1-stage spur gear,1-stage planetary speed reduction, splash lubrication
Travel speed Gear 1st 2nd 3rd
Forward 0-3.7 km/h 0-6.8 km/h 0-12.2 km/h
Reverse 0-4.4 km/h 0-8.2 km/h 0-14.8 km/h
Undercarriage system Type K type elastic suspended structure,connection with frame pivot
Gradeability 30°
Stability 35°
Track gauge 2260 mm
Ground length 3560 mm
Number of carrier rollers 2 (each side)
Number of track rollers 7 (each side)
Number of track shoes 41 (each side)
Track type Link master, seal, lubricated type
Width of track shoes 610 mm
Pitch 260.35 mm
Hydraulic System Maximum pressure 14 MPa
Pump type Gear pump
Discharge 243 L/min
Bore of working cylinder * no. 110 mm * 2
Blade Blade Type Semi-U blade
Dozing capacity 16m³
Blade width 4314 x 1875 mm
Max. drop below ground of blade 700 mm
Maximum lift height 1545 mm
Riipper (Optional) Ripper type Single-shank ripper
Ripping depth of ripper 1400 mm
Lifting height of ripper 1130 mm
