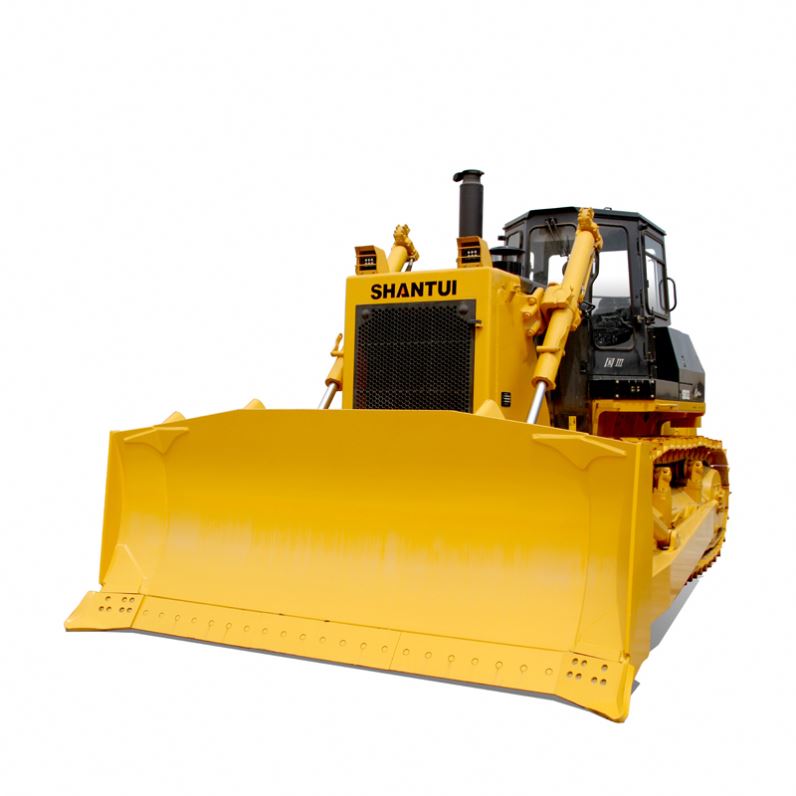

Shantui 20 ton Bulldozer crawler dozer SD20-C6

Introduction:

Powertrain system

● The WP12 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, low fuel consumption, high intelligence and efficiency, high parts universality, and low maintenance cost.

● The normally-closed brake design is applied so that the machine is braked automatically after the stop of engine to ensure high safety.

● The four-point semi-suspension shock-absorbing installation reduces the machine vibration and improves the driving comfort.

● The shock absorbers in crossing shaft rubber block structure are applied to effectively mitigate the vibration from the engine and protect the engine and drive system


Product Detail

Product Tags

Video

CHARACTERISTIC

Driving/Riding Environment

● The ergonomic cab features large space, excellent vision, and good airtightness.

● The single accelerator pedal features comfortable operations.

● The seat and armrests with large adjustment range can provide comfortable operating posture.

● The cab adopts optimized shock-absorbing structure and sound-absorbing sponge to ensure low vibration and noise

Working adaptability

● The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability.

● Depending on specific working condition, the semi-U blade, straight tilting blade, angle blade, three-shank ripper, traction frame, and winch can be installed to achieve power operating capability.

● The standard LED working lamps improve the illumination capability and achieve higher safety and reliability during nighttime operations

Operating performance

● The traveling system is controlled by single hydroelectric control joystick to ensure comfortable and labor-saving operations.

● The hydraulic pilot control is applied for the working device to achieve low operating force and good reliability

Easy maintenances

● The structural parts inherit the excellent quality of Shantui’s mature products;

● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

● The core electric and hydraulic parts are globally procured to ensure stable quality and high reliability.

● The machine adopts the modular design to achieve easy disassembling and assembling, simple repairs, and easy maintenances

1
2
3
4
246 (2)
246 (1)

Paracteristic

Parameter name Standard version
Performance parameters
Operating weight (Kg) 21000 (Including ripper)
Ground pressure (kPa) 60.5
Engine
Engine model WP12
Rated power/rated speed (kW/rpm) 162/1950
Overall dimensions
Overall dimensions of machine (mm) 6805*3460*3305
Driving performance
Forward speed (km/h) 0~3.9/6.8/10.6
Reversing speed (km/h) 0~5/8.6/13.4
Chassis System
Center distance of track (mm) 1880
Width of track shoes (mm) 560
Ground length(mm) 2675
Tank capacity
Fuel tank (L) 415
Working device
Blade type Semi-U blade
Digging depth (mm) 450
Ripper type Three-tooth ripper
Ripping depth (mm) 595

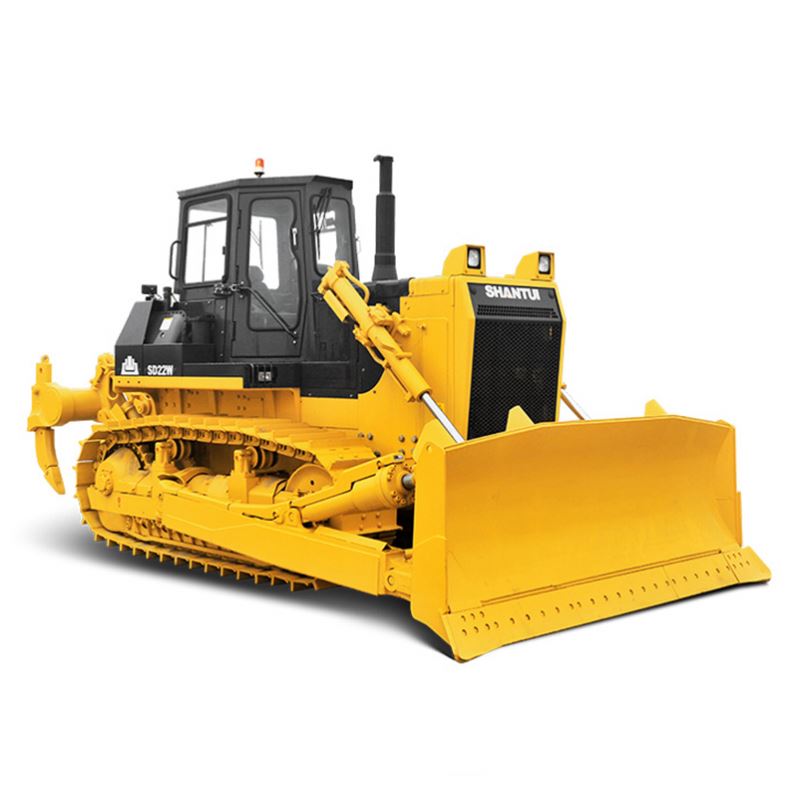

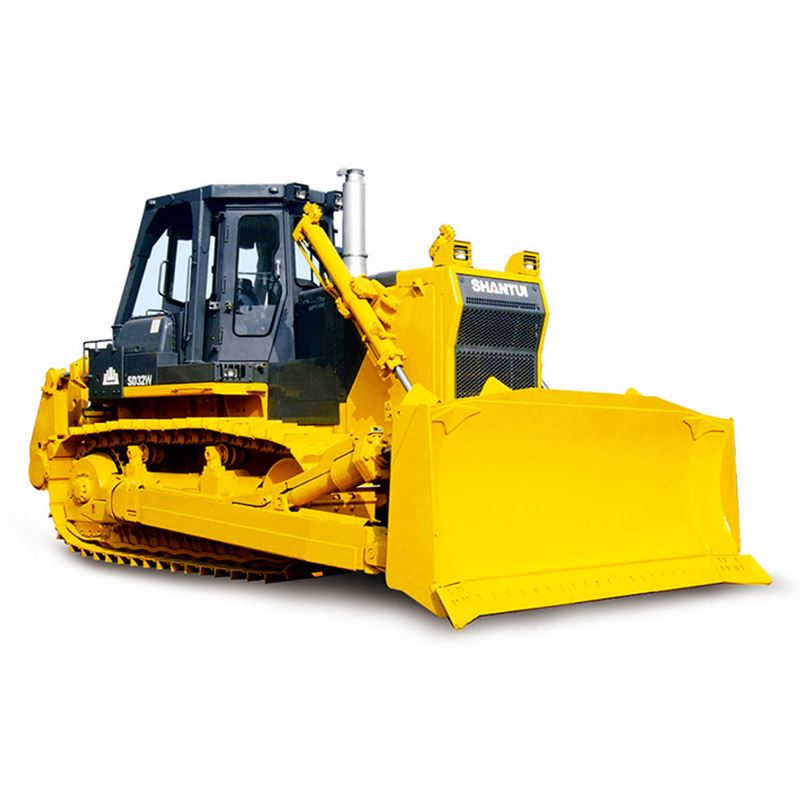

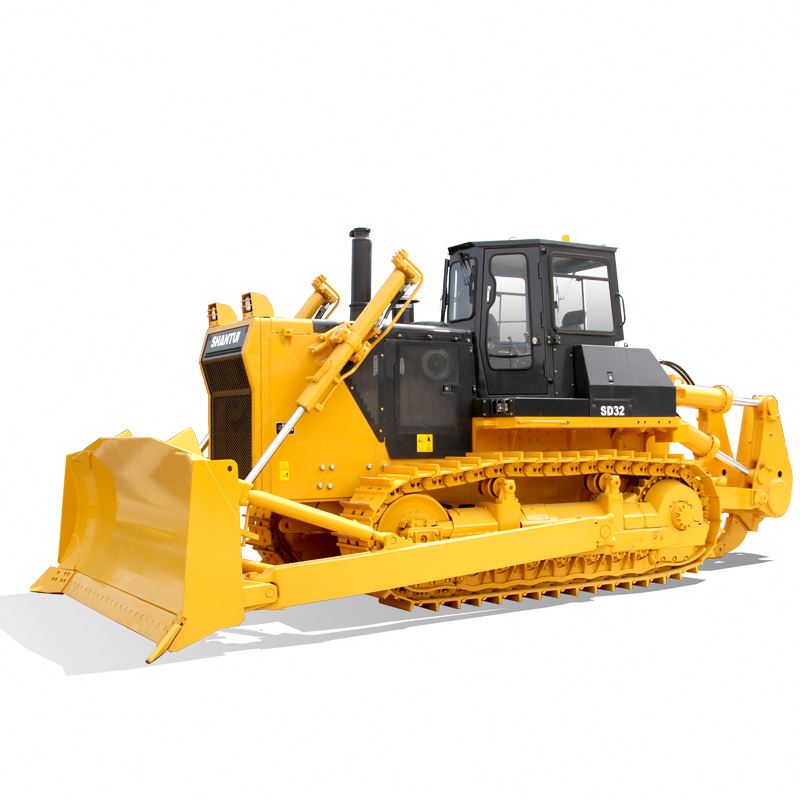

Product IMGs:
