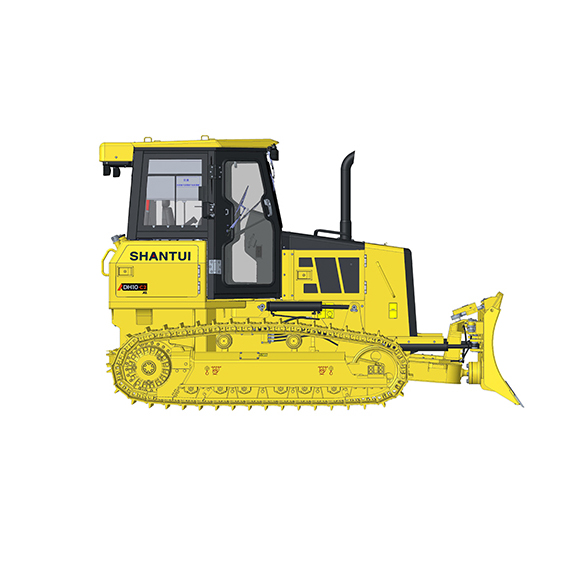

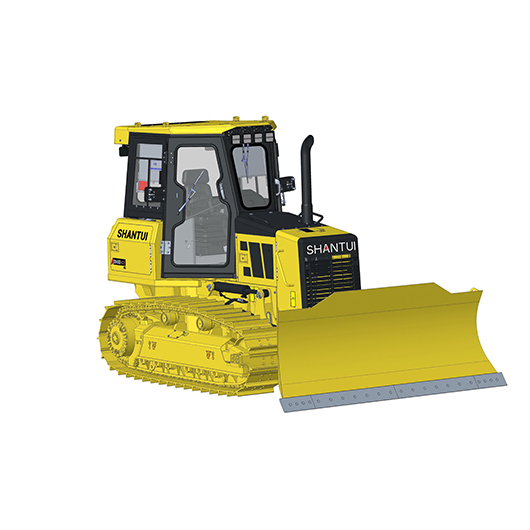

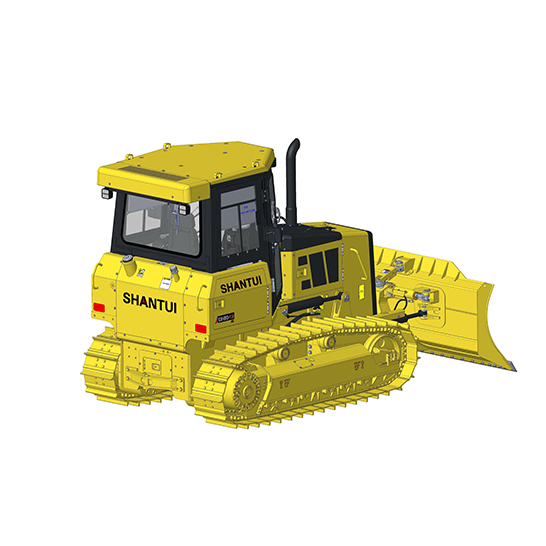

Shantui 10ton Bulldozer DH10-C2 with low Fuel Consumption

Introduction:


Product Detail

Product Tags

Video

CHARACTERISTIC

Power System

• The installed Cummins electronic control engine conforms to China-III/EU StageⅢA emission regulation and features stronger power and higher energy-saving and environmental friendliness. The fuel system with three-stage filter guarantees good adaptability to low-quality diesel in Southeast Asian markets.

• Shantui’s hydrostatic drive optimization technology is applied to achieve maximum working efficiency and most reasonable fuel economy

Control system

• The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.

• The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.

• The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding

Driving/Riding Environment

• The integral sealed cab with 8-point shock-absorbing mechanism features low noise and vibration, large space, and good vision.

• The spacious doors and windows allow the operator to clearly view all corners of the blade and the integrated ROPS remarkably increases the side view of the machine.

• The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.

• The mechanically cushioned seat offers large adjustment range in both longitudinal direction and backrest position. The armrests feature comfortable texture feel and large area. The ergonomic joysticks provide most comfortable operating experiences for the driver

Working adaptability

• The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.

• The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. The standard traction frame and the optional three-shank ripper guarantee high operating capacity. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability

Operating performance

• The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick, featuring flexible, handy, and comfortable operations

Easy maintenances

• The structural parts inherit the excellent quality of Shantui’s mature products.

• The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

• The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

• The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances

680 (5)
680 (2)

Paracteristic

Parameter name DH10-C2 XL (Extended version) DH10-C2 LGP(Super-wetland version)
Performance parameters
Operating weight (Kg) 9680kg/21341lb (With traction frame) 10140kg/22355lb (With traction frame)
Ground pressure (kPa) 44.4 34
Engine
Engine model QSF3.8 QSF3.8
Rated power/rated speed (kW/rpm) 86/2200 86/2200
Overall dimensions
Overall dimensions of machine (mm) 4442*2860*2885 4442*3200*2885
Driving performance
Forward speed (km/h) 0~9km/h(5.6mph) 0~9km/h(5.6mph)
Reversing speed (km/h) 0~9km/h(5.6mph) 0~9km/h(5.6mph)
Chassis System
Center distance of track (mm) 1650 1790
Width of track shoes (mm) 460 630
Ground length(mm) 2320 2320
Tank capacity
Fuel tank (L) 197 197
Working device
Blade type PAT PAT
Digging depth (mm) 450 450
Ripper type Three-tooth ripper Three-tooth ripper
Ripping depth (mm) 340 340

Product IMGs:

680 (3)
680 (4)
