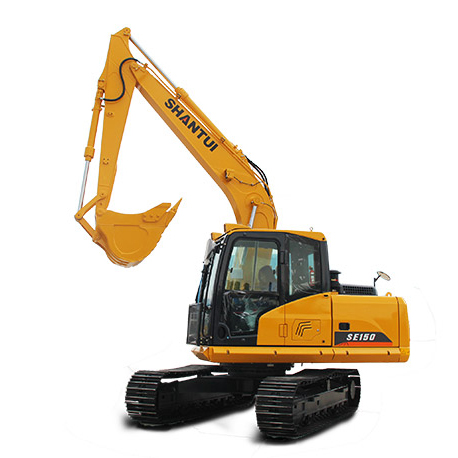

SHANTUI 15ton China Made track backhoe Excavator Digger Machine SE150

Introduction:

The two-sided support track rollers in place of carrier rollers, two one-sided track guides, and the reinforced X-frame are installed to adapt to severe working conditions


Product Detail

Product Tags

Video

Specification

Comparative item SE150 (Standard version)
Overall dimensions
Overall length (mm) 7860
Ground length (During transport) (mm) 4390
Overall height (To the top of boom) (mm) 2860
Overall width (mm) 2645
Overall height (To top of cab) (mm) 2855
Ground clearance of counterweight (mm) 915
Minimum ground clearance (mm) 425
Tail turning radius (mm) 2380
Track length (mm) 3645
Track gauge (mm) 2000
Track width (mm) 2500
Standard track shoe width (mm) 500
Turntable width (mm) 2645
Distance from slewing center to tail (mm) 2375
Working range
Maximum digging height (mm) 8670
Maximum dumping height (mm) 6210
Maximum digging depth (mm) 5490
Maximum vertical digging depth (mm) 4625
Maximum digging distance (mm) 8325
Maximum digging distance at ground level (mm) 8195
Working device minimum turning radius (mm) 2395
Maximum lifting height of bulldozer blade (mm) -
Maximum digging depth of bulldozer blade (mm) -
Engine
Model QSF3.8T (China-III)
Type  4-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L) 3.76
Rated power (kW/rpm) 86/2200
Hydraulic system
Type of hydraulic pump Variable displacement duplex plunger pump
Rated working flow (L/min) 2x130
Bucket
Bucket capacity (m³) 0.65
Swing system
Maximum swing speed (r/min) 11.3
Brake type Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN) 70
Bucket digging force (KN) 97
Operating weight and ground pressure
Operating weight (kg) 14500
Ground pressure (kPa) 43.8
Traveling system
Traveling motor Axial variable displacement plunger motor
Traveling speed (km/h) 3.25/5.2
Traction force (KN) 118
Gradeability 70%(35°)
Tank capacity
Fuel tank capacity (L) 220
Cooling system (L) 20
Engine oil capacity (L) 12
Hydraulic oil tank/system capacity (L) 177/205

CHARACTERISTIC

High-end system configuration

Cummins high pressure common rail electronic injection engine features high power reserve and strong power.

The full set of Kawasaki negative-flow system features high stability and reliability and is the golden configuration among the products of same tonnage.

This machine features high system pressure, high flow, and fast motion response, with maximum digging force up to 105KN.

The comprehensively optimized working device and the cast shaft seats for boom and arm feature high strength, good wear resistance, and long life.

The two-sided support track rollers in place of carrier rollers, two one-sided track guides, and the reinforced X-frame are installed to adapt to severe working conditions.

The optional 0.65m3 rock bucket is designed specially for rock working condition

Enhanced working device

The structures of critical portions are comprehensively optimized and the load-carrying positions are reinforced to resist against severe working conditions.

The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.

Based on the digging path of the bucket, the bucket structure is optimized to reduce the digging resistance and improve the digging efficiency.

The H-shaped track frame features strong carrying capacity and reasonable machine load distribution. The track frame is equipped with standard boarding footplate to mitigate the user’s labor strength and improve the user satisfaction

Drive sprockets, idlers, track rollers, carrier rollers, and tracks

Decades of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and world’s leading technologies.

The world’s sophisticated forging and heat treatment processes guarantee stable and reliable quality

Intelligent electronic control and optimal power control

The intelligent control system realizes the optimal match between power system and hydraulic system to improve the working efficiency. The automatic idling function is provided to lower the fuel consumption and reduce the operating cost.

The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.

Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover

Spacious and comfortable operating environment

The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator’s visual fatigue.

The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.

The high-power A/C is installed and the adjustable wrist rest and the air cushioned seat are provided to help your all-day comfortable operations

Quick and convenient maintenances

The fully openable engine hood is installed with locating mechanism to realize handy and safe opening, large engine compartment space, and easy maintenances.

The electric parts are centrally arranged to ease the checking and maintenances.

The filling of washing fluid, the replacement of air filter element, and the power master switch are easily accessible

Optional equipment of machine

Refueling pump

Cab warning lamp

Cab ceiling lamp

Cab overhead protective net

Cab front upper protective net

Cab front lower protective net

Rubber track

Narrow bucket

Optional attachments

Breaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, quick change coupling, and breaking hammer pipeline
