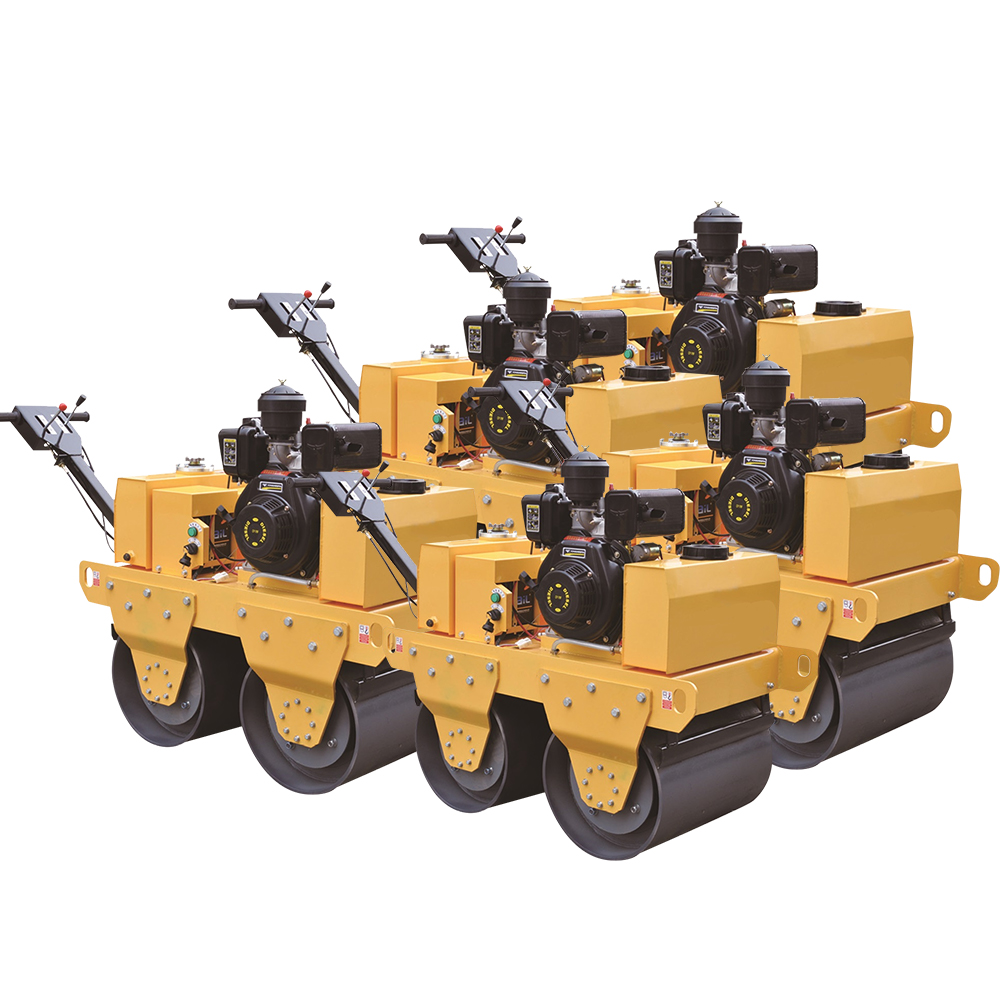

SINOMACH 0.6ton China Suppliers Mini double drum driving vibratory Hydraulic Walk Behind Vibratory Rollers GYW602

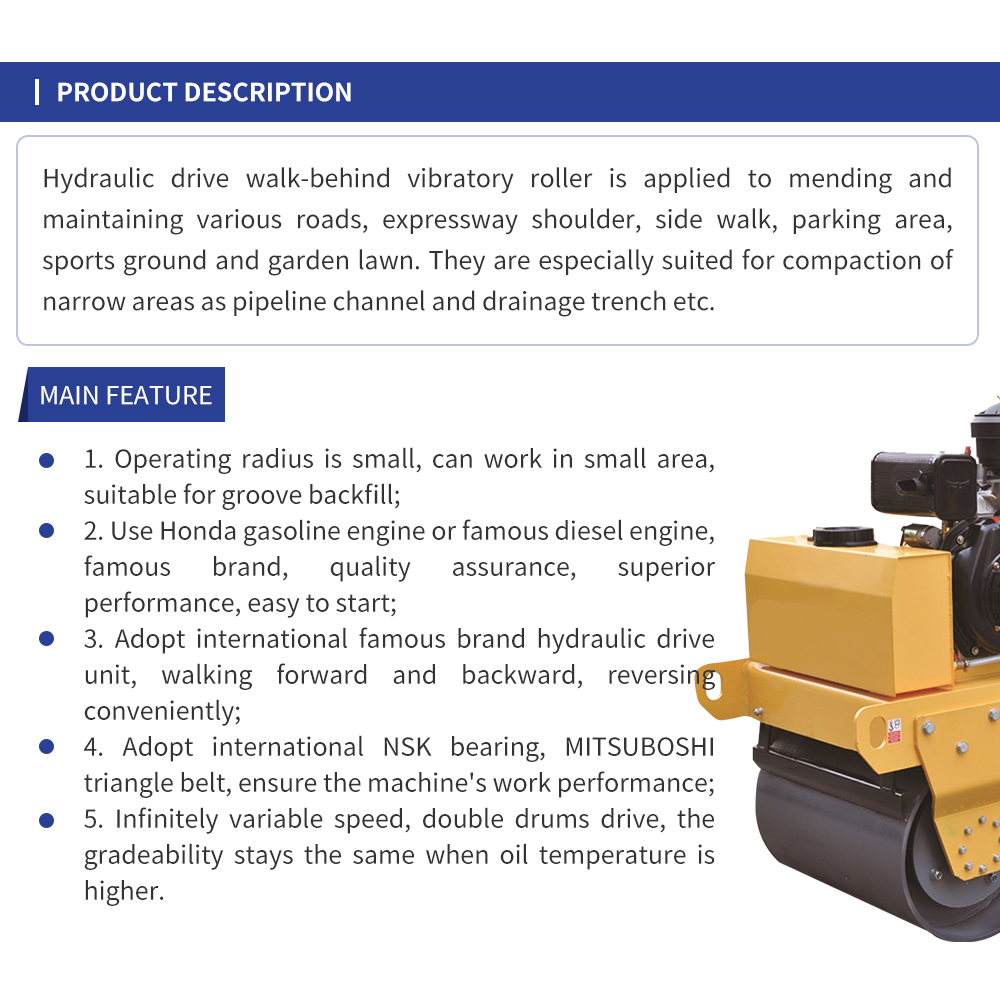

Introduction:

Hydraulic drive walk-behind vibratory roller is applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.


Product Detail

Product Tags

Video

Features

1. Operating radius is small, can work in small area, suitable for groove backfill;

2. Use Honda gasoline engine or famous diesel engine, famous brand, quality assurance, superior performance, easy to start;

3. Adopt international famous brand hydraulic drive unit, walking forward and backward, reversing conveniently;

4. Adopt international NSK bearing, MITSUBOSHI triangle belt, ensure the machine's work performance;

5. Infinitely variable speed, double drums drive, the gradeability stays the same when oil temperature is higher.

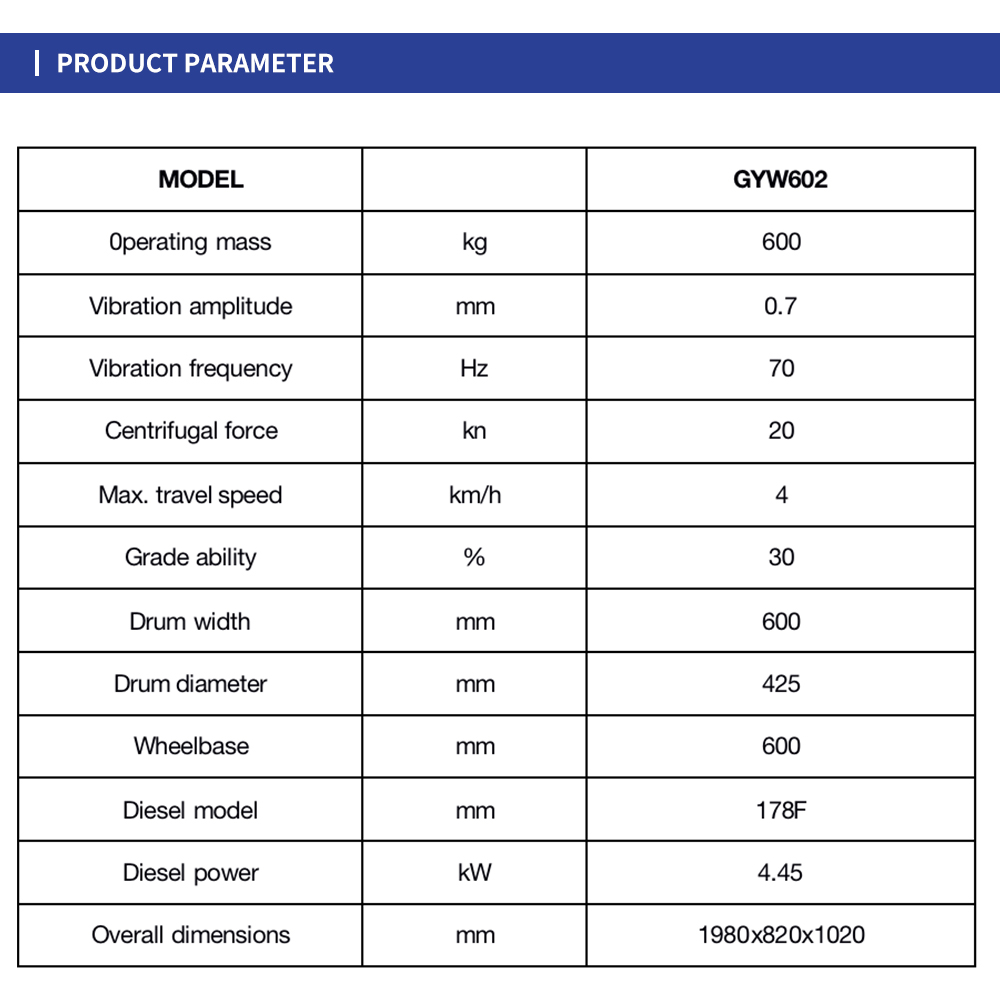

Parameter

Model GYW602
Operating mass kg 600
Vibration amplitude mm 0.7
Vibration frequency hz 70
Centrifugal force kn 20
Max. travel speed km/h 4
Grade ablity % 30
Drum width mm 600
Drum diameter mm 425
Wheelbase mm 600
Diesel model mm 178F
Diesel power kw 4.45
Overall dimensions mm 1980*820*1020
