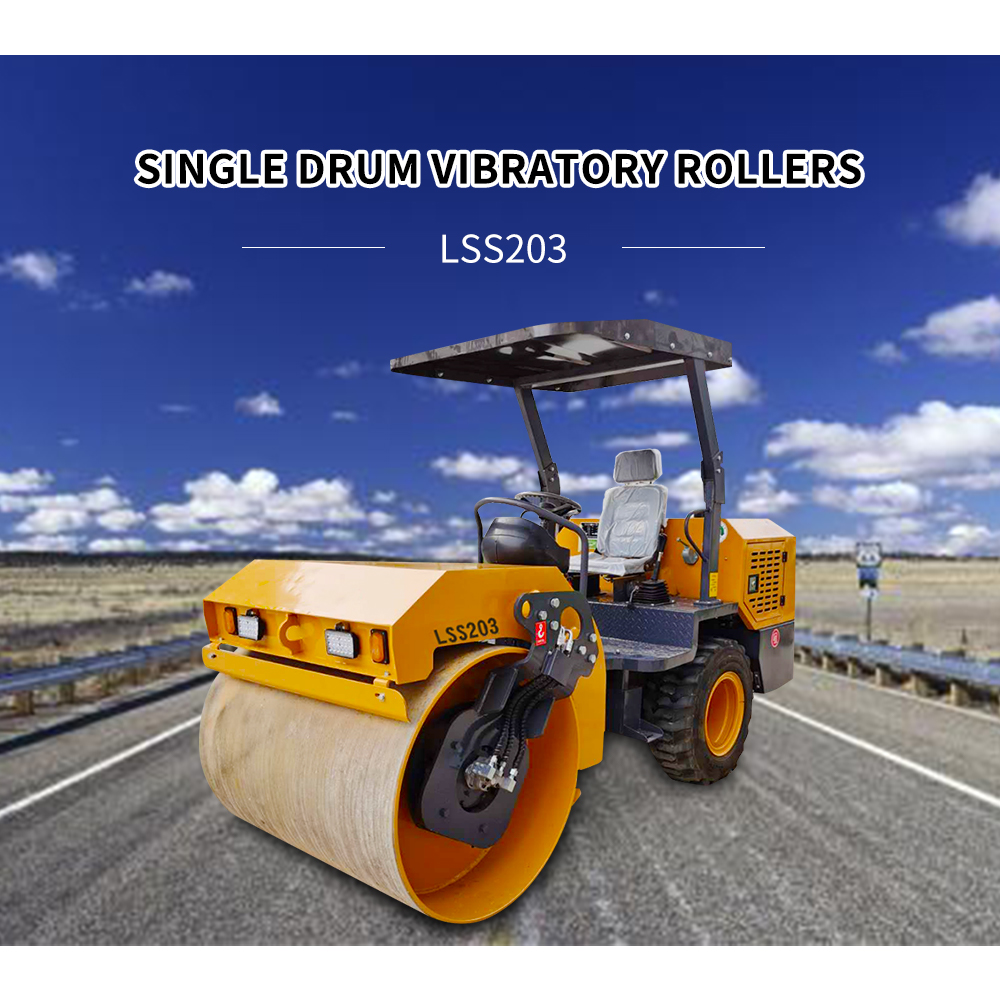

SINOMACH 3 ton Single Drum Vibratory road Rollers compactors LSS203

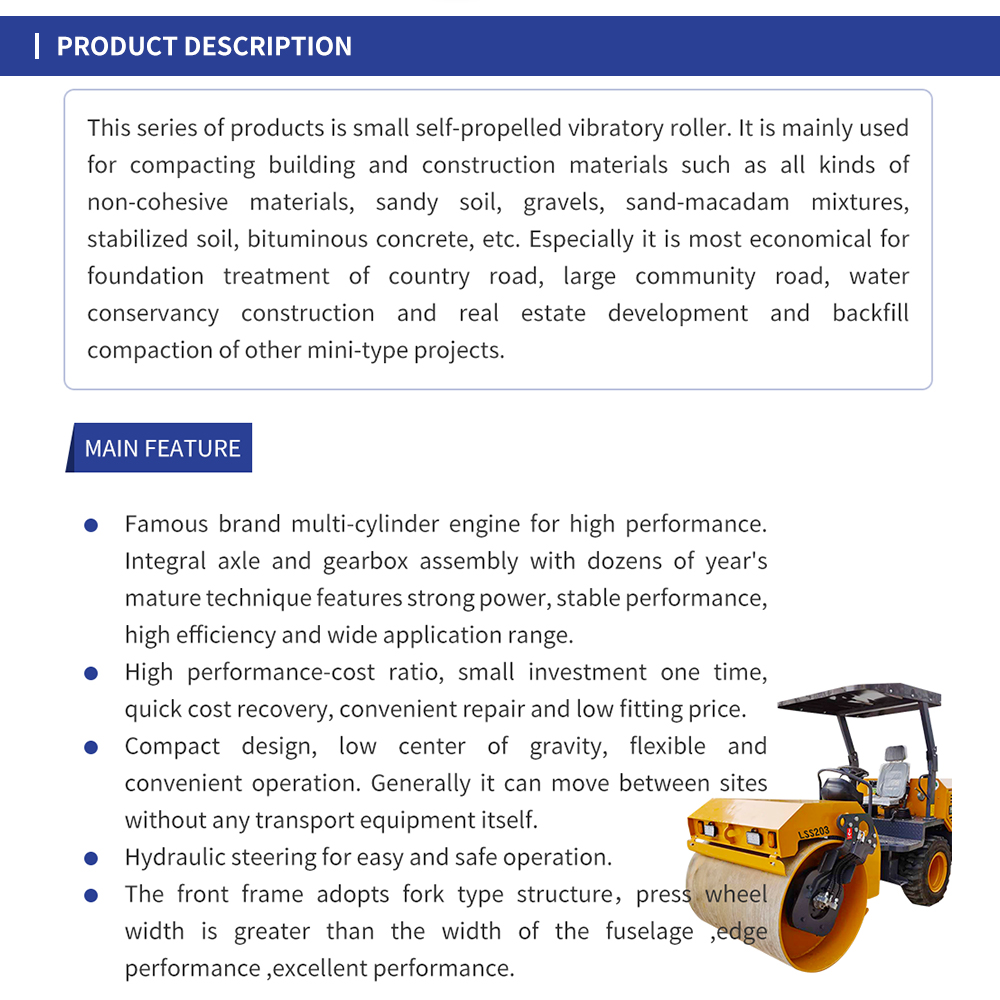

Introduction:

This series of products is small self-propelled vibratory roller. It is mainly used for compacting building and construction materials such as all kinds of non-cohesive materials, sandy soil, gravels, sand-macadam mixtures, stabilized soil, bituminous concrete, etc. Especially it is most economical for foundation treatment of country road, large community road, water conservancy construction and real estate development and backfill compaction of other mini-type projects.


Product Detail

Product Tags

Video

Characteristic

Famous brand multi-cylinder engine for high performance. Integral axle and gearbox assembly with dozens of year's mature technique features strong power, stable performance, high efficiency and wide application range.

High performance-cost ratio, small investment one time, quick cost recovery, convenient repair and low fitting price.

Compact design, low center of gravity, flexible and convenient operation. Generally it can move between sites without any transport equipment itself.

Hydraulic steering for easy and safe operation.

The front frame adopts fork type structure,press wheel width is greater than the width of the fuselage ,edge performance ,excellent performance.

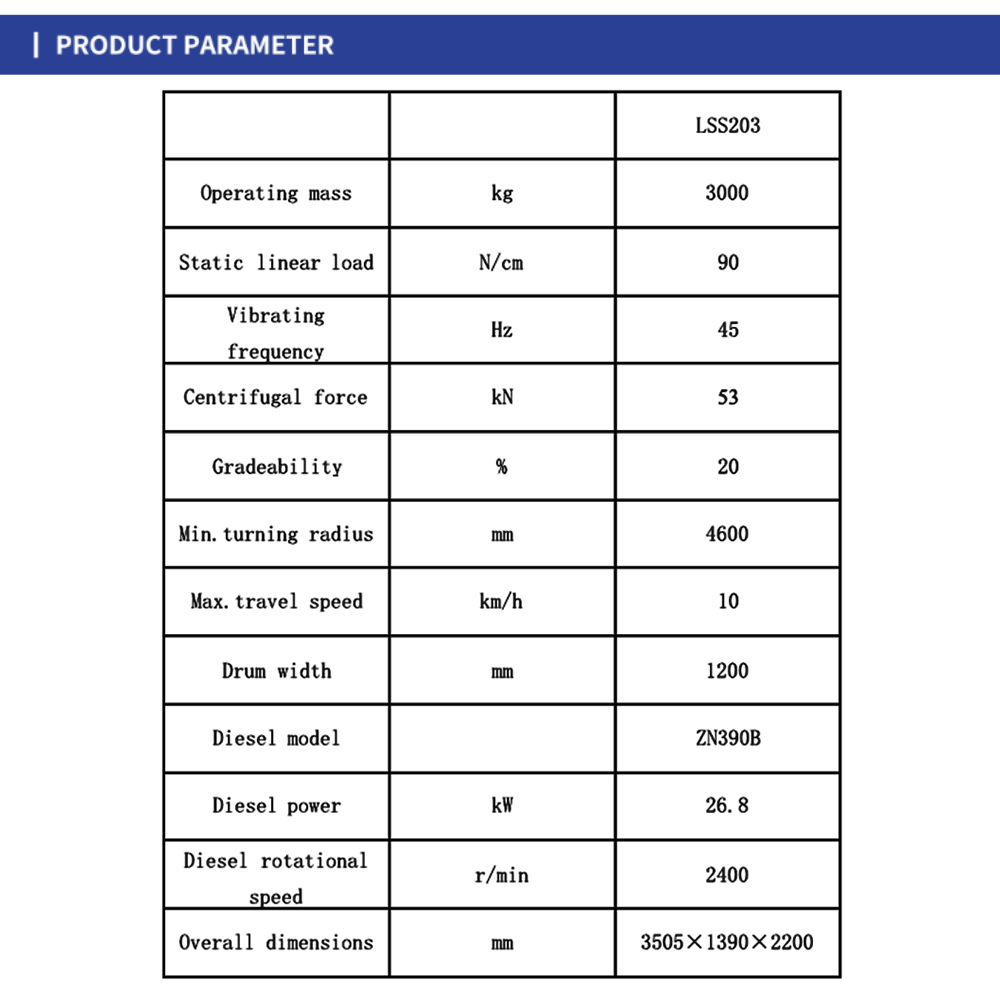

Parameter

Model LSS203
Operating mass kg 3000
Static linear load N/cm 90
Vibration frequency hz 45
Centrifugal force kn 53
Gradeability % 20
Min.turning radius mm 4600
Max.travel speed km/h 10
Drum width mm 1200
Diesel model ZN390B
Diesel power kw 26.8
Diesel rotational speed r/min 2400
Overall dimensions mm 3505*1390*2200

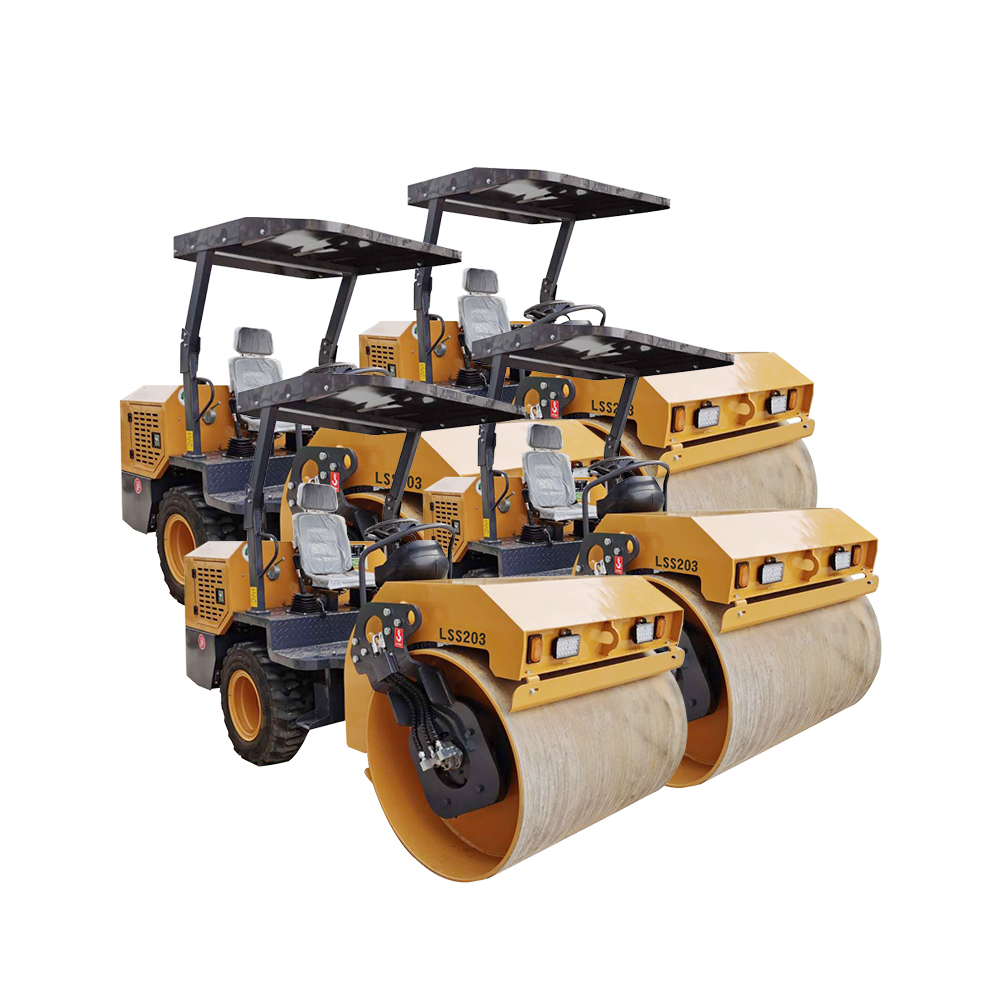

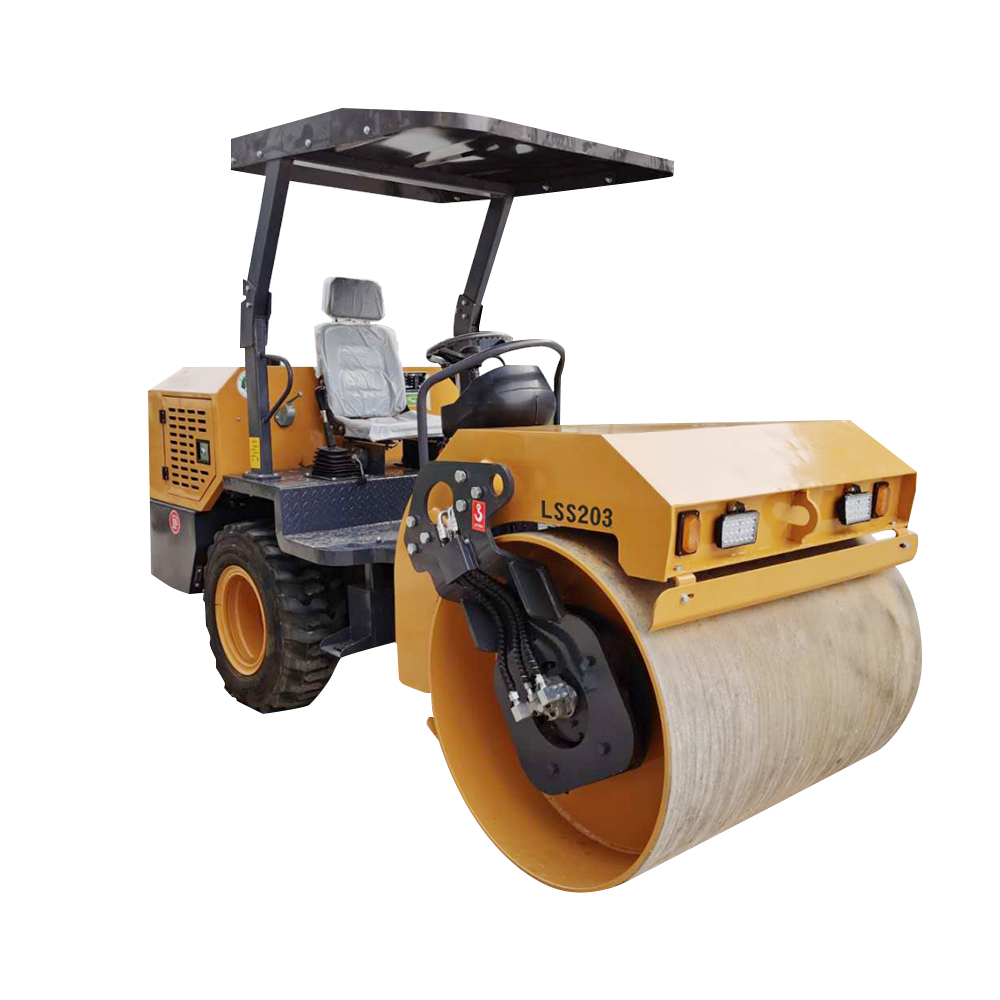

Product Display

5 (1)
5 (3)
5 (2)
5 (4)

Product Display

WechatIMG1

Our company:

详情_01
详情_02
详情_03
详情_04
详情_05
详情_06
详情_07
