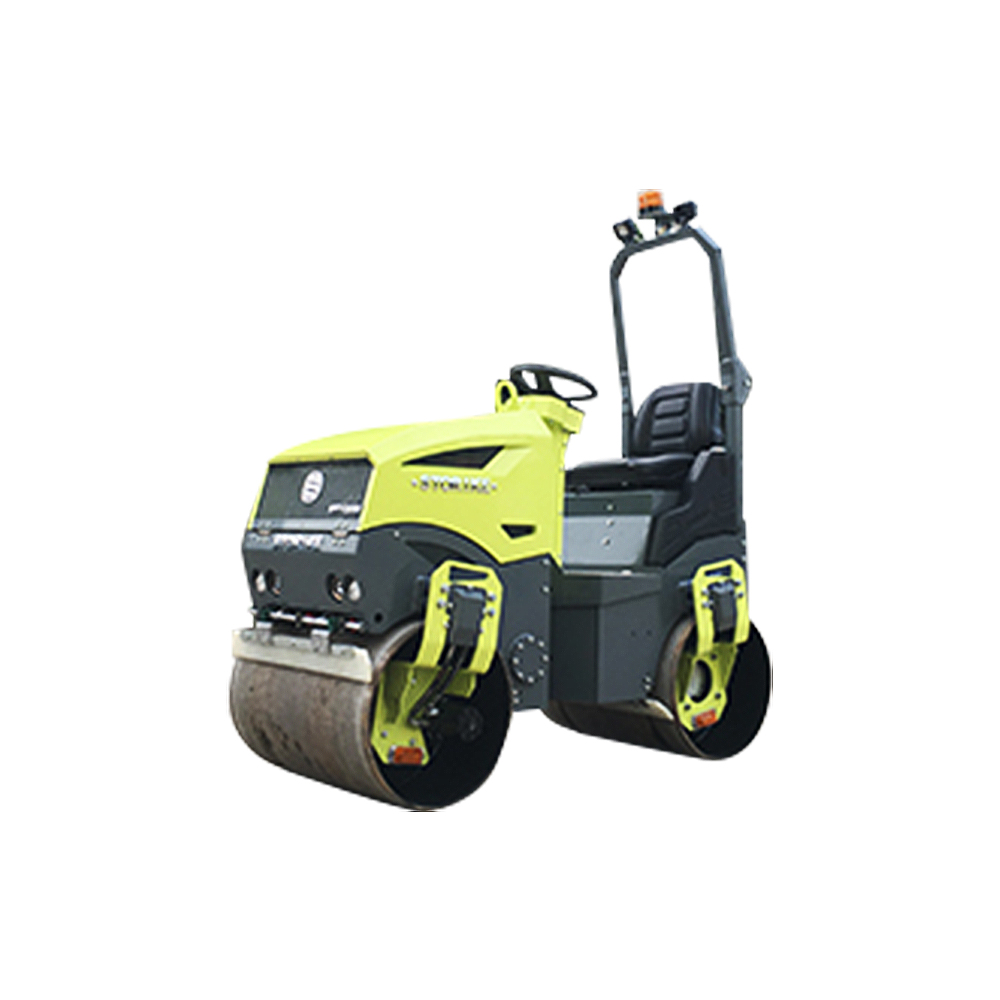

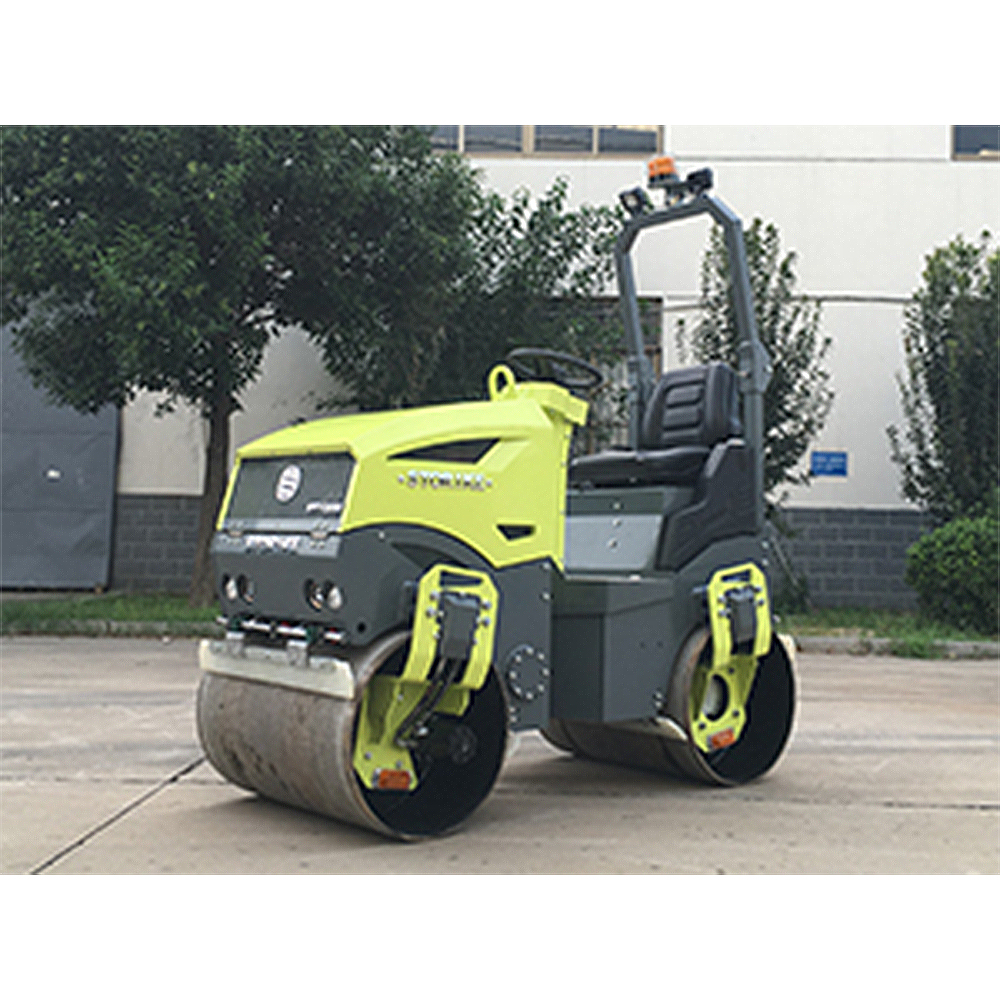

Storike 1.5ton ST1500 diesel engine vibratory road roller factory supply

Introduction:

It can be used for compaction of soil, asphalt roads, sidewalks, bridges and culverts, parking lots, sports grounds and narrow venues. It has vertical vibration, strong excitation force and high compaction efficiency. It is the road, street, and square construction of highways and municipal departments. The ideal equipment.


Product Detail

Product Tags

Video

FEATURES

1. Equipped with famous brand engine, could guarantee quality stability and excellent performance.

2. Hawkeye-shaped body design, wide field of vision and beautiful appearance

3. Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.

4. LED display instrument panel.

5. Assembled with working light and warning light, could work at night.

6. Ergonomic chair.

7. Passed CE, SGS and ISO certification and won Red Star Award design.

8. The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.

Scope of application

It can be used for compaction of soil, asphalt roads, sidewalks, bridges and culverts, parking lots, sports grounds and narrow venues. It has vertical vibration, strong excitation force and high compaction efficiency. It is the road, street, and square construction of highways and municipal departments. The ideal equipment.

Parameter

Technical parameters Unit
Model ST1500A
Operating weight kg 1500
Static line load N/cm 69.5/68
Size
Working width mm 930
Length of the whole machine(protective frame dumped/upped) mm 1980/1940
The height of the whole machine (protective frame is tilted/upped) mm 1540/2125
Outside turning radius mm 2800
Steel wheel width mm 800
Steel wheel diameter mm 560
Wheelbase mm 1356
Drive

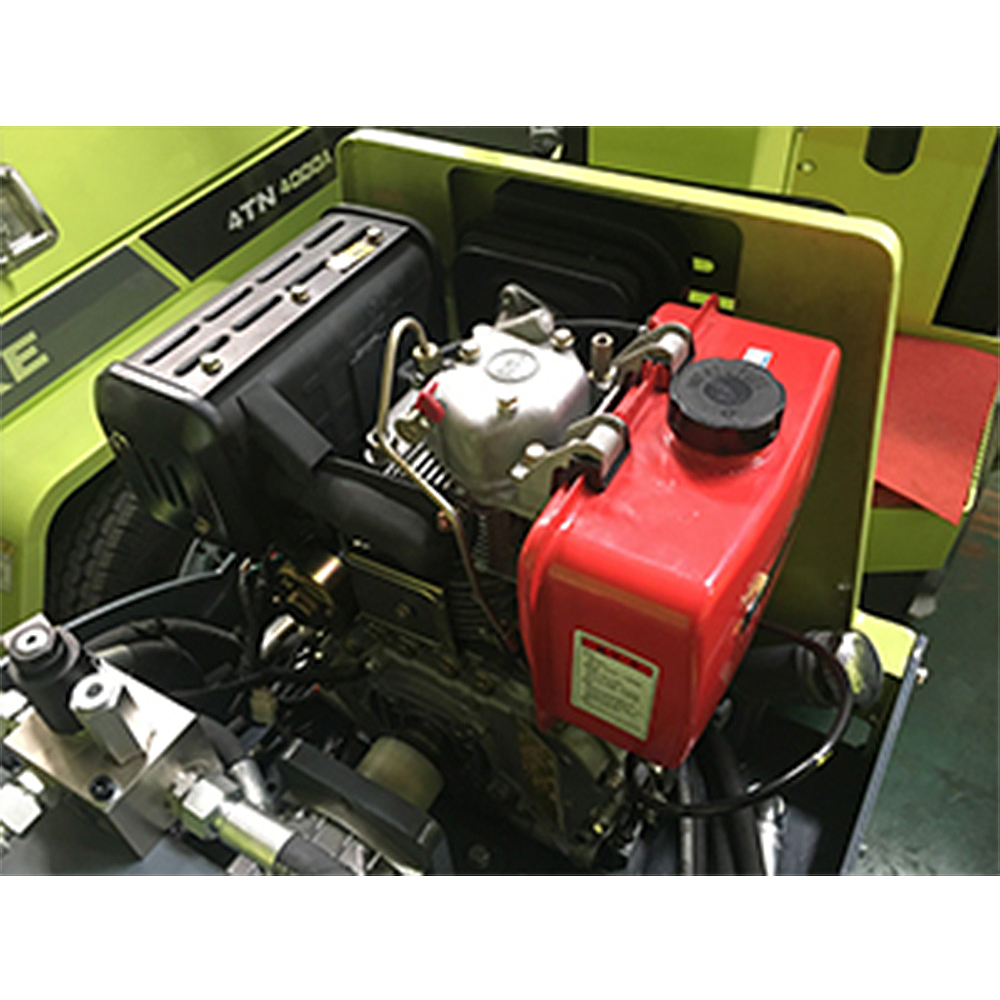

Engine brand Changchai
Engine model 192F
Engine type single cylinder /vertical / air cooling /four  stroke /diesel engine
Number of cylinders a 1
Output power kw 8.1
Rotating speed rpm 3600
Electrical equipment v 12
Drive way Variable plunger pump/Stepless variable speed/Hydraulic double
Walking characteristics
Speed km/h 0--6
Theoretical climbing ability % 30
Brake
Working brake Variable piston pump
Steering
Steering method Hydraulic steering
Steering system Swing articulated
Excitation system
Vibrating steel wheel Forward
Vibration form Hydraulic motor
Vibration frequency hz 65
Vibration amplitude mm 0.5
Exciting force kn 25
Sprinkler system
Form Intermittent electronic pressure water spray
Capacity
Hydraulic oil capacity l 22
Fuel capacity l 5.5
Water tank capacity l 65
