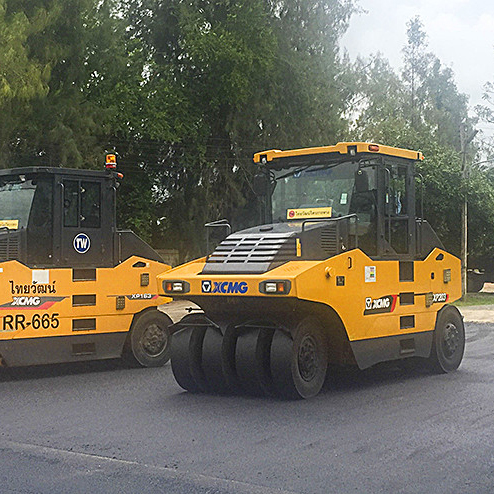

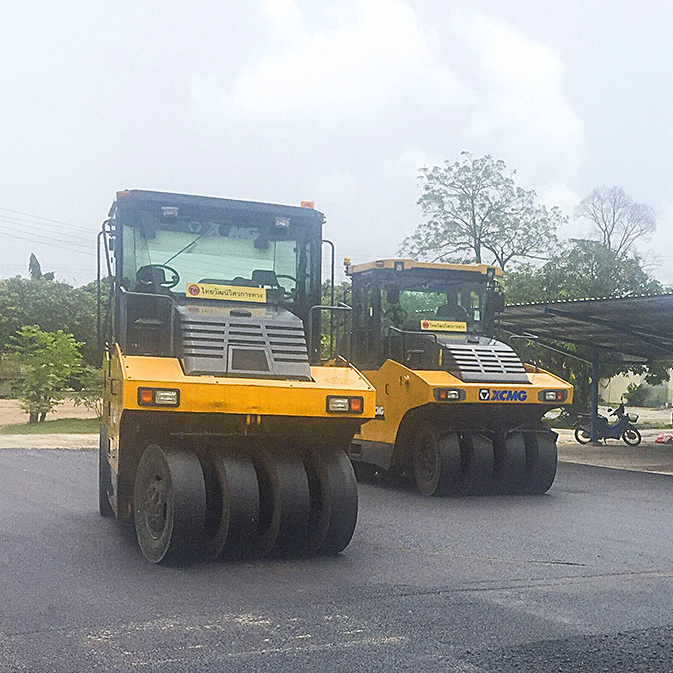

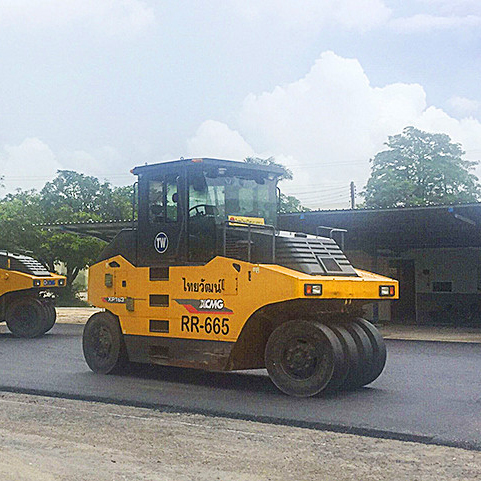

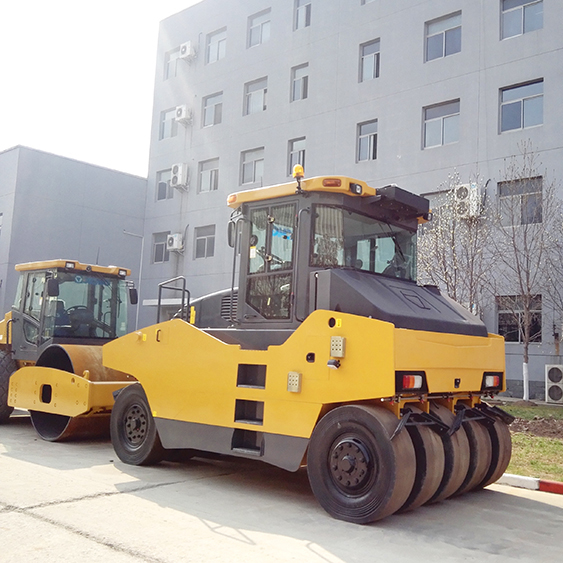

XCMG 20 ton XP203 pneumatic tyre tire compactor machine

Introduction:

XP203 pneumatic tire roller is self-propelled static roller, which is applicable to compacted asphalt pavement, foundation layer, secondary foundation layer and flling engineering and is the indispensable compaction equipment of road construction and water conservancy construction. In particular, compaction of asphalt surface course of highways can obtain compaction effect that other compaction machinery cannot reach.


Product Detail

Product Tags

Video

Characteristic

Shangchai SC4H type diesel engine with power of 86KW, speed of 1800r/min, in compliance with China's non road Stage-ll emission regulations, greatly improved the fuel economy.

Pavement layer will be compacted by special pneumatic tire. It will not damage compaction materials. Flexible compacting function of tire can make compaction material obtain dense pavement surface course.

Ground pressure of the tire can be regulated by decreasing or increasing balance weight and changing inflation pressure of tire to enhance compaction performance and enlarge the scope of application; compacted sandy soil, composite soil and clay soil can obtain good compaction effect to avoid false compaction phenomenon.

Full hydraulic steering, air-assist hydraulic brake and multi-gear shifting transmission system are utilized, fast and flexible. It is more convenient for transfer between construction sites.

Front wheel swing mechanism will be adopted. When the roller is working on unleveled ground, the uniform wheel pressure grounding can be guaranteed and unleveled part of compacted materials can be compacted uniformly.

1
2
3
4
5

Specification

Item

Unit

XP203

Maximum operating mass

kg

20000

Ground pressure

kPa

200~ 400

Travel speed

Gear I

km/h

4

Gear II

km/h

8.3

Gear II

km/h

17.5

Theoretical gradeability

%

20

Minimum turning radius

mm

7330

Minimum ground clearance

mm

260

Compaction width

mm

2250

Overlapped volume of roller

mm

45

Tires

Specification



11.00-20

Quantity



Front 4 rear 5

Engine

Type



SC4H115.4G2B

Rated power

kw

86

Fuel consumption

g/kw.h

≤205

Total length

mm

4800

Total width

mm

2356

Total height

mm

3330

Diesel tank volume

L

150

Water tank volume

L

650
