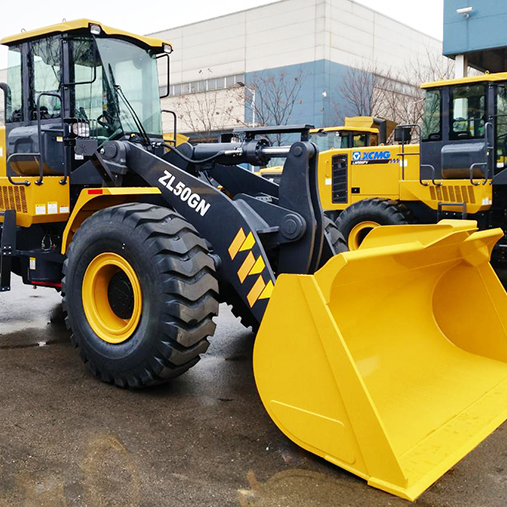

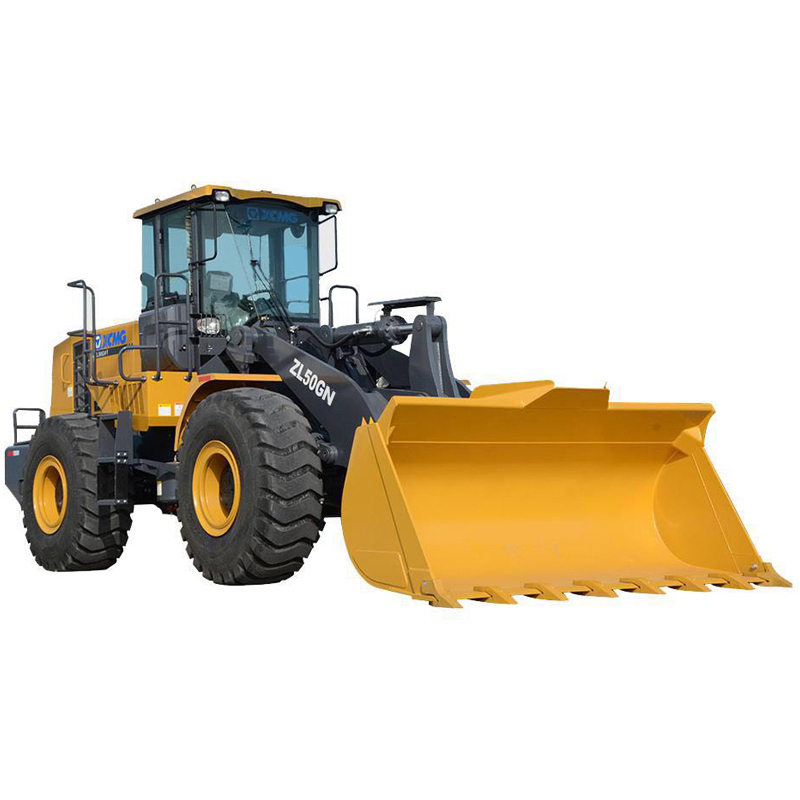

XCMG 5ton construction machinery wheel loader ZL50GN

Introduction:

The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.


Product Detail

Product Tags

Video

Main Parameters

Rated load: 5 ton

Bucket capacity : 2.5~4 M3

Operating weight:17.5 ton

Main Configuration

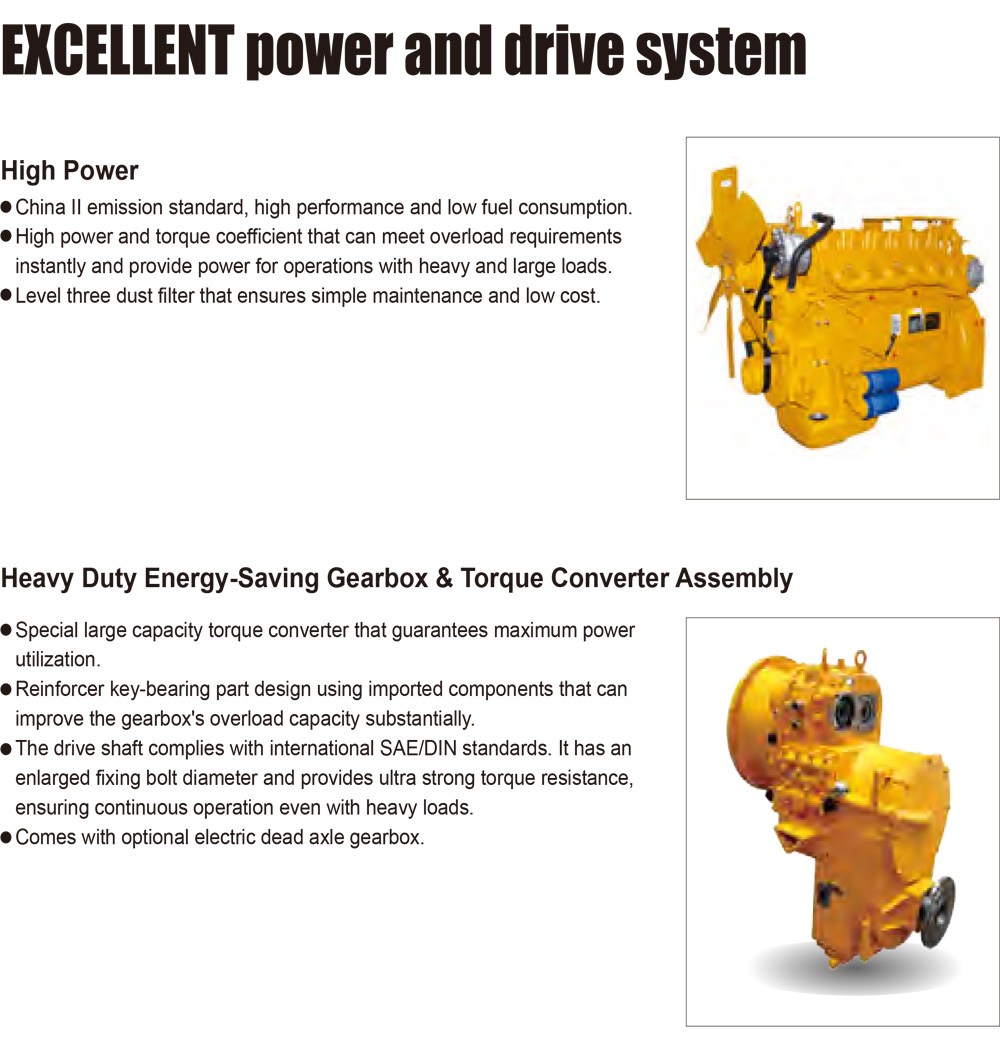

Weichai/Cummins/Shangchai Engine 162KW

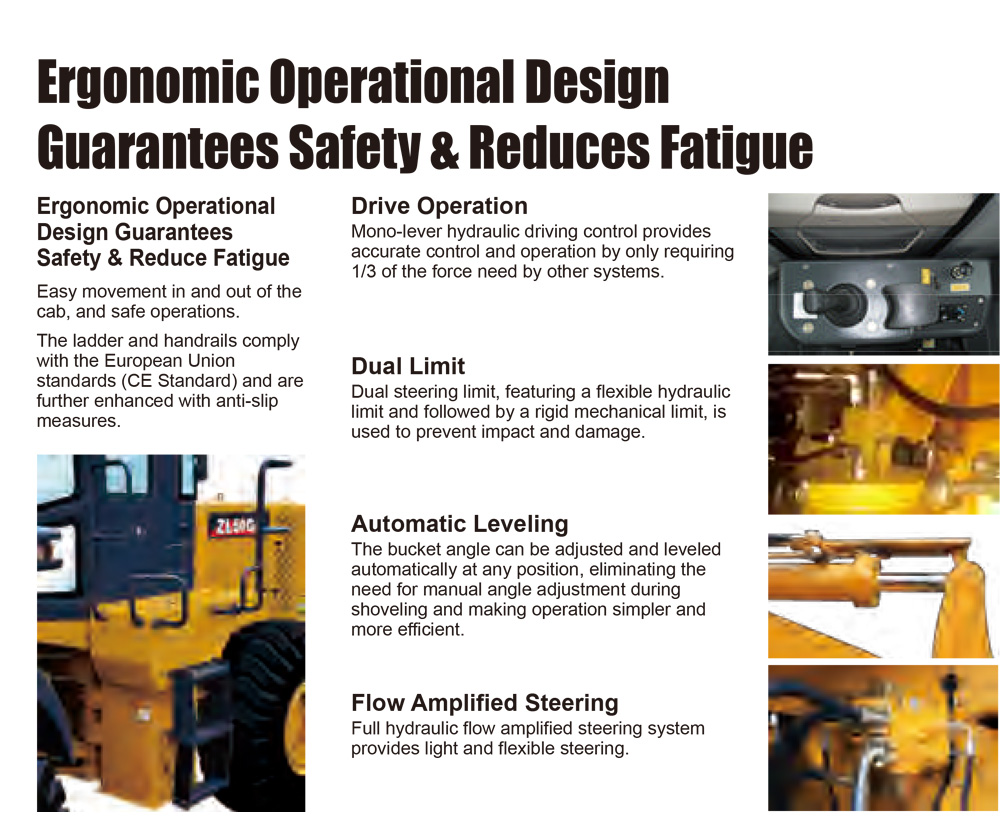

Pilot control

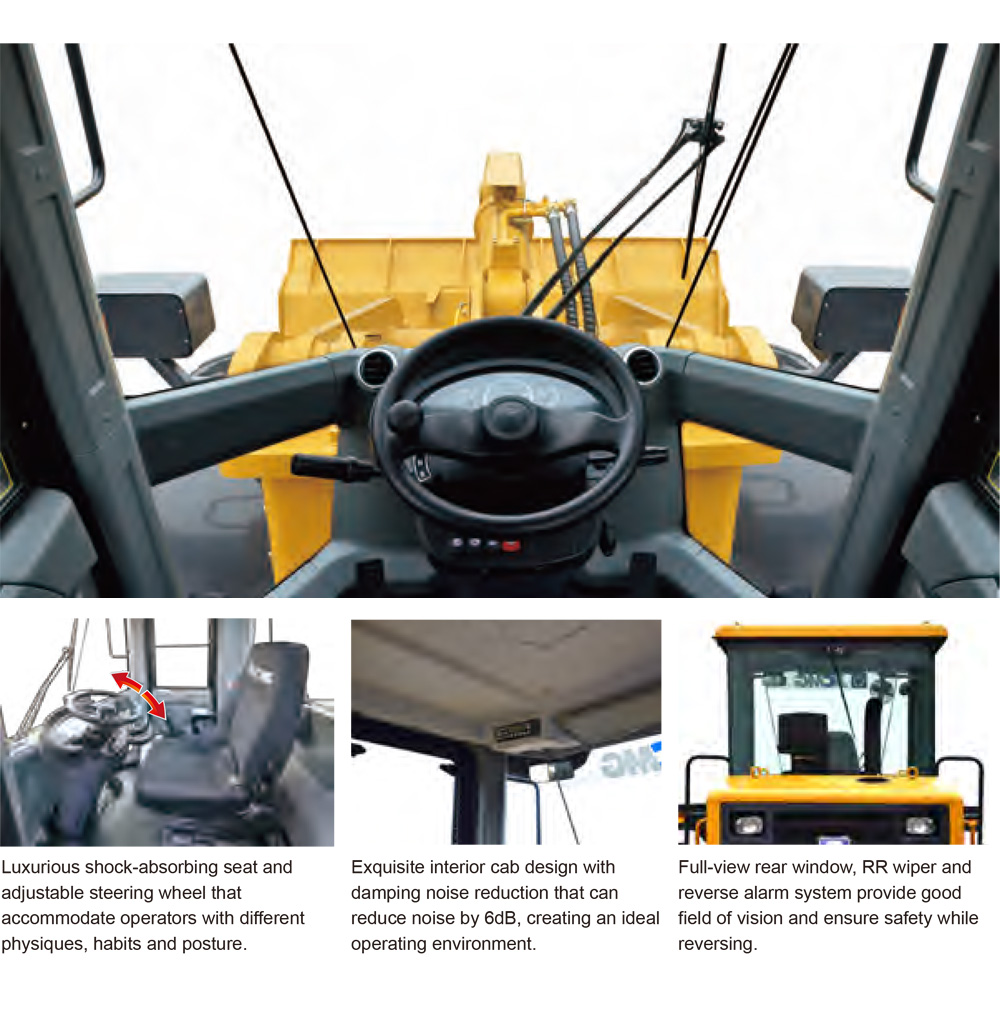

Air conditioner driving cabin

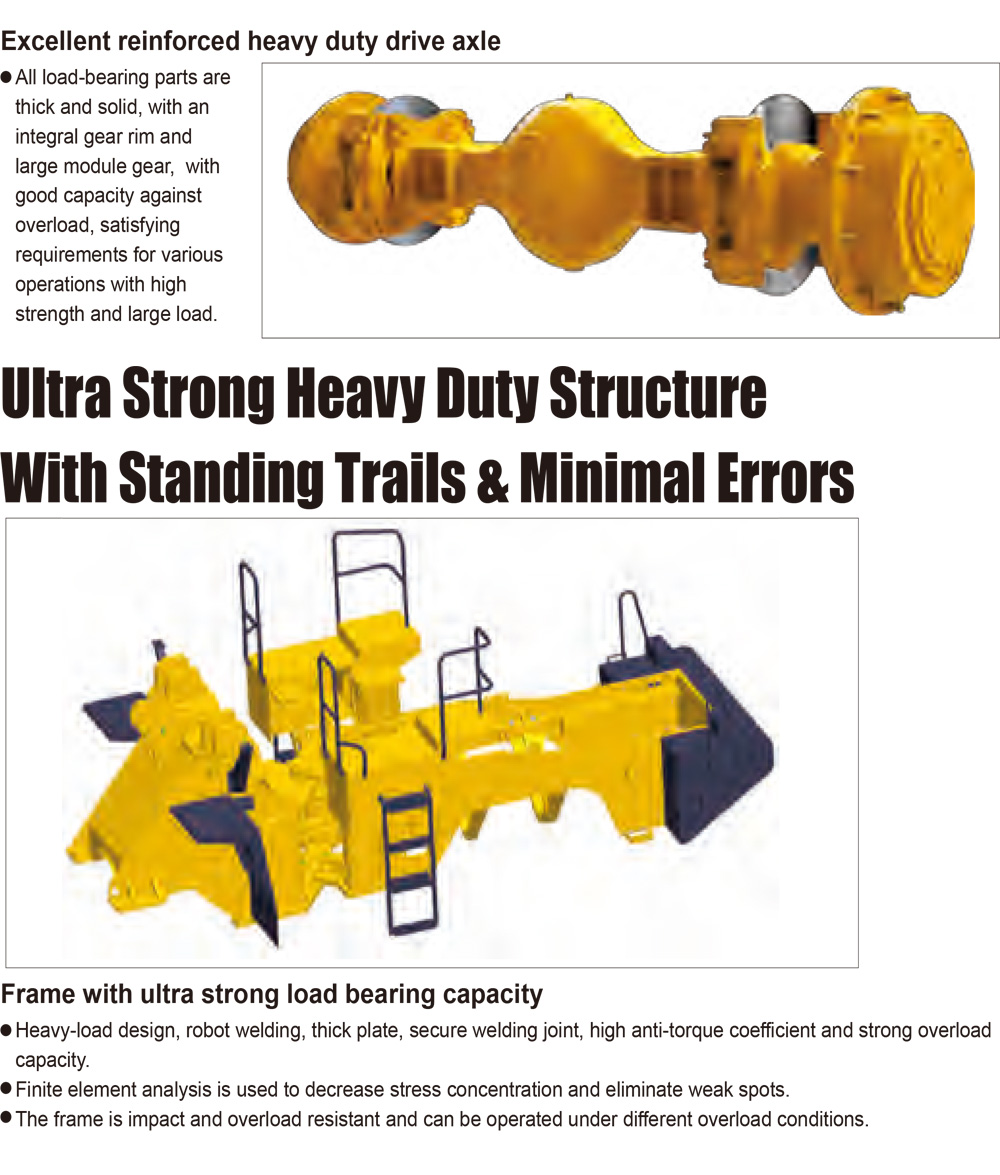

Dry drive axle

Planetary gearbox

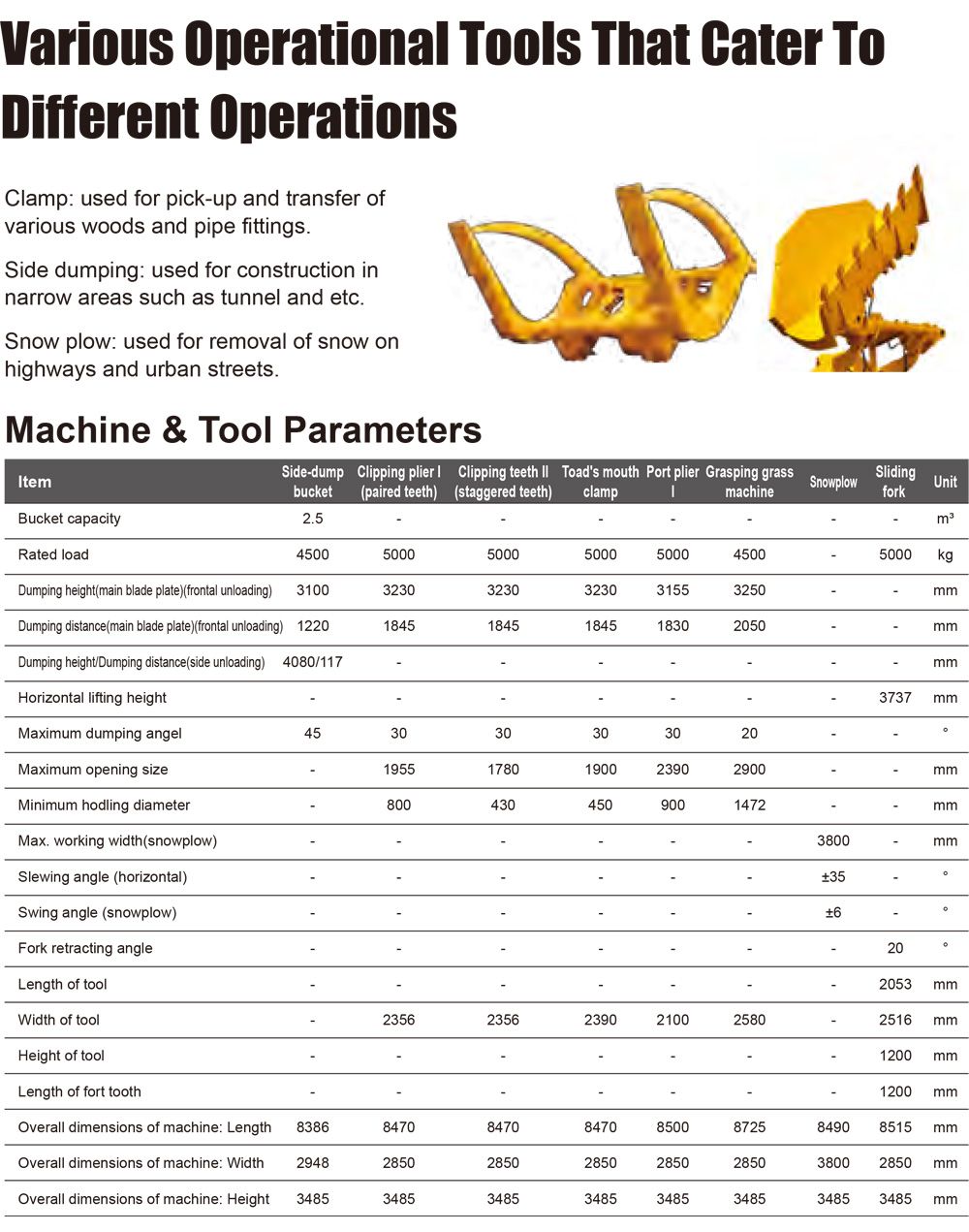

Optional Parts

Grasping grass pliers

Sliding fork

Standard bucket

Side dumping

Mine bucket.

Product Overview

XCMG wheel loader ZL50GN is the most popular model of China 5t wheel loader, Now ZL50GN is upgrading to new model ZL50GV equipped with EURO III engine with electric injector, new model will have high performance.

ZL50GN wheel loader is the latest cross-generation-product developed ,the first-choice equipment for the production organization the fields of ports, mines, engineering constructions, and logistics.

Performance Highlights

Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

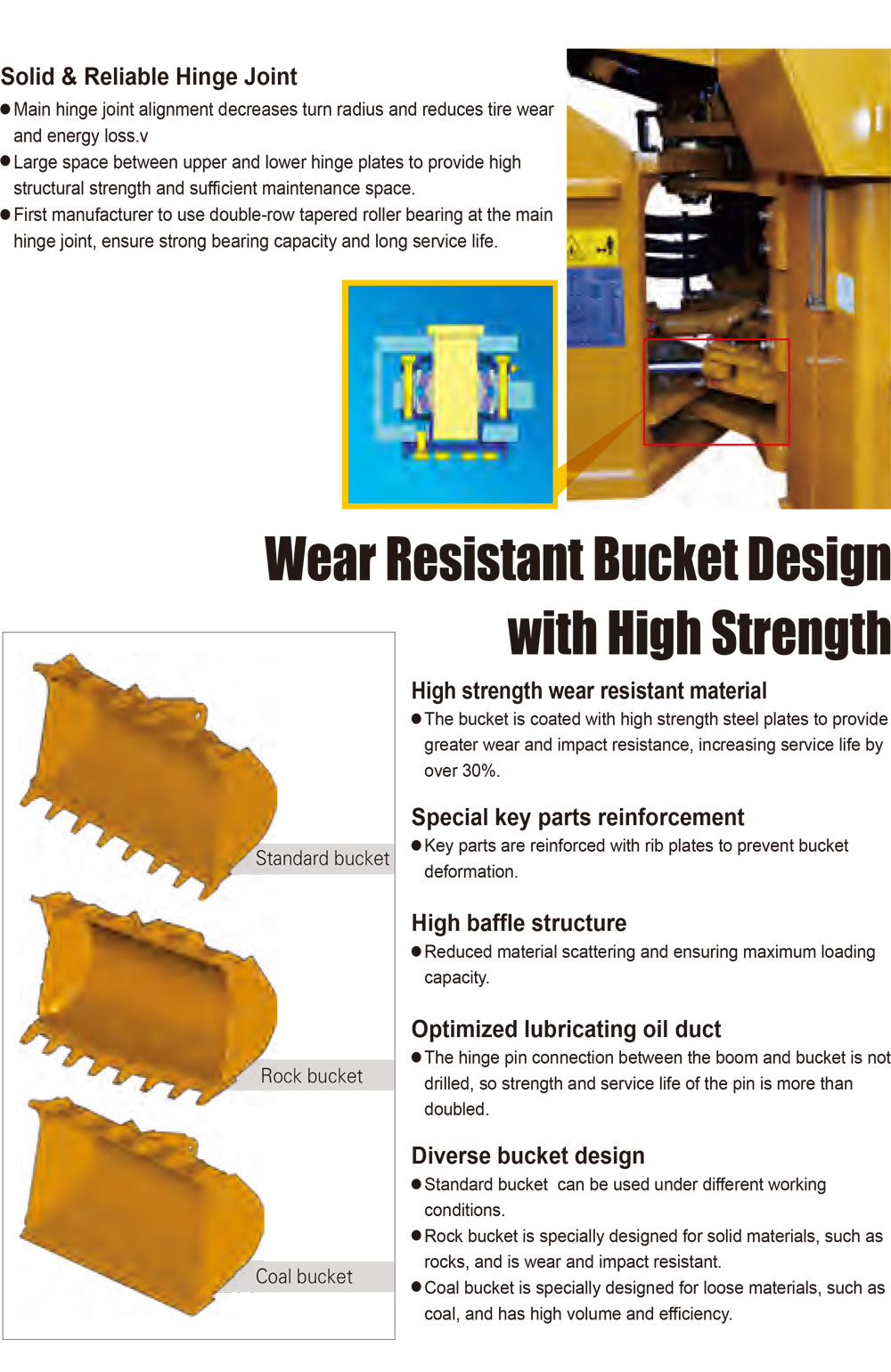

The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of tooth-holder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.

160kN breakout force handle all kinds of materials with ease,≥3.5m high dumping capacity handle the severe conditions with ease.

Specification

1
2
3
4
5
6
7
8
9
10
11

Description

Unit

Parameter value

Rated operating load

kg

5000

Bucket capacity

2.5~4.5

Machine weight

kg

17500±300

Dump clearance at maximum lift

mm

3100~3780

Reach at maximum lift

mm

1100~1220

Wheel base

mm

3300

Tread

mm

2250

Max.breakout force

kN

175±5

Max.horse power

kN

160±5

Hydraulic cycle time-raise

s

≤6

Total hydraulic cycle time

s

≤10.5

Min. turning radius over tyres

mm

5925±50

Articulation angle

°

38

Gradeability

°

30

Tyre size

23.5-25-16PR

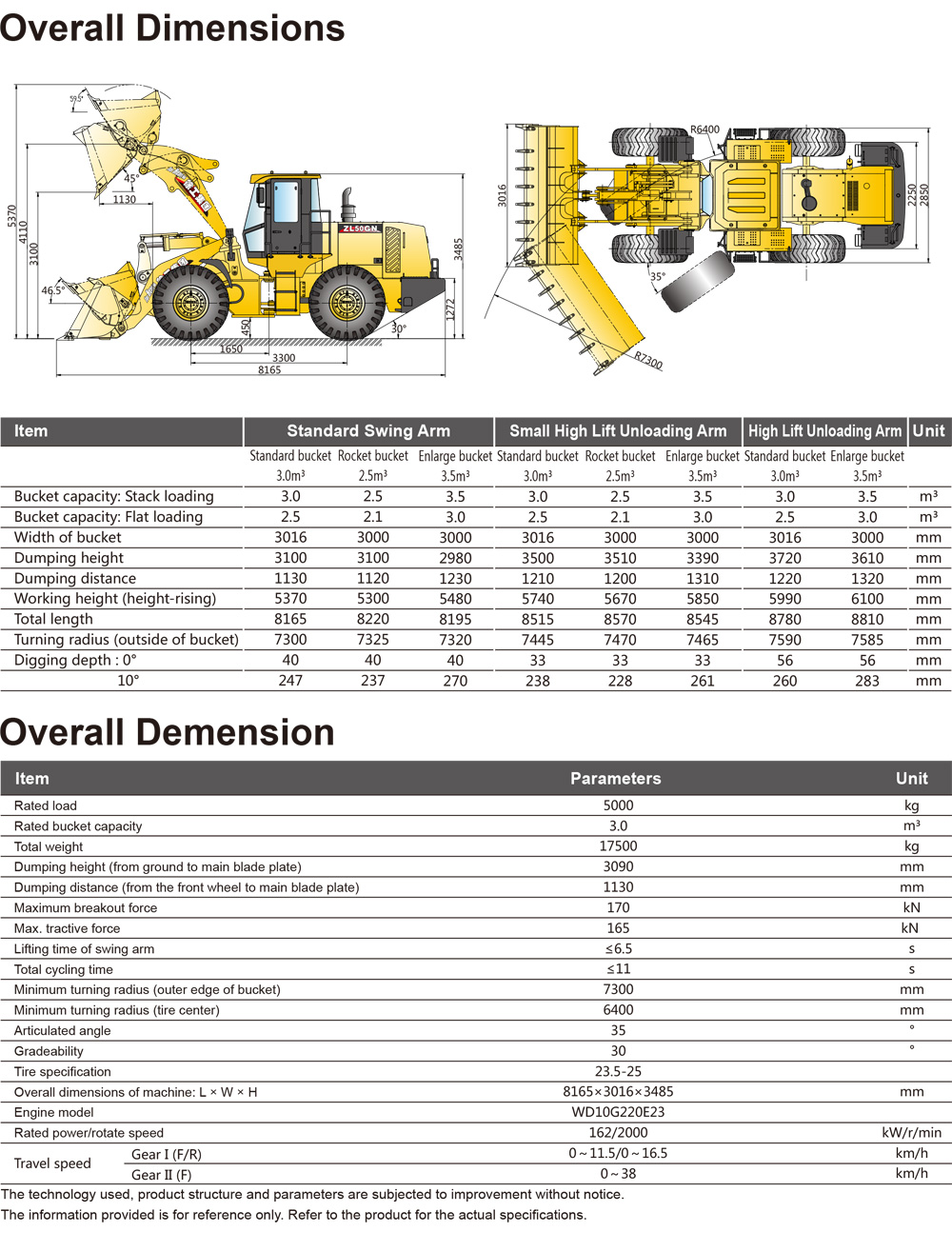

Overall machine dimension L×W×H

mm

8225×3016×3515

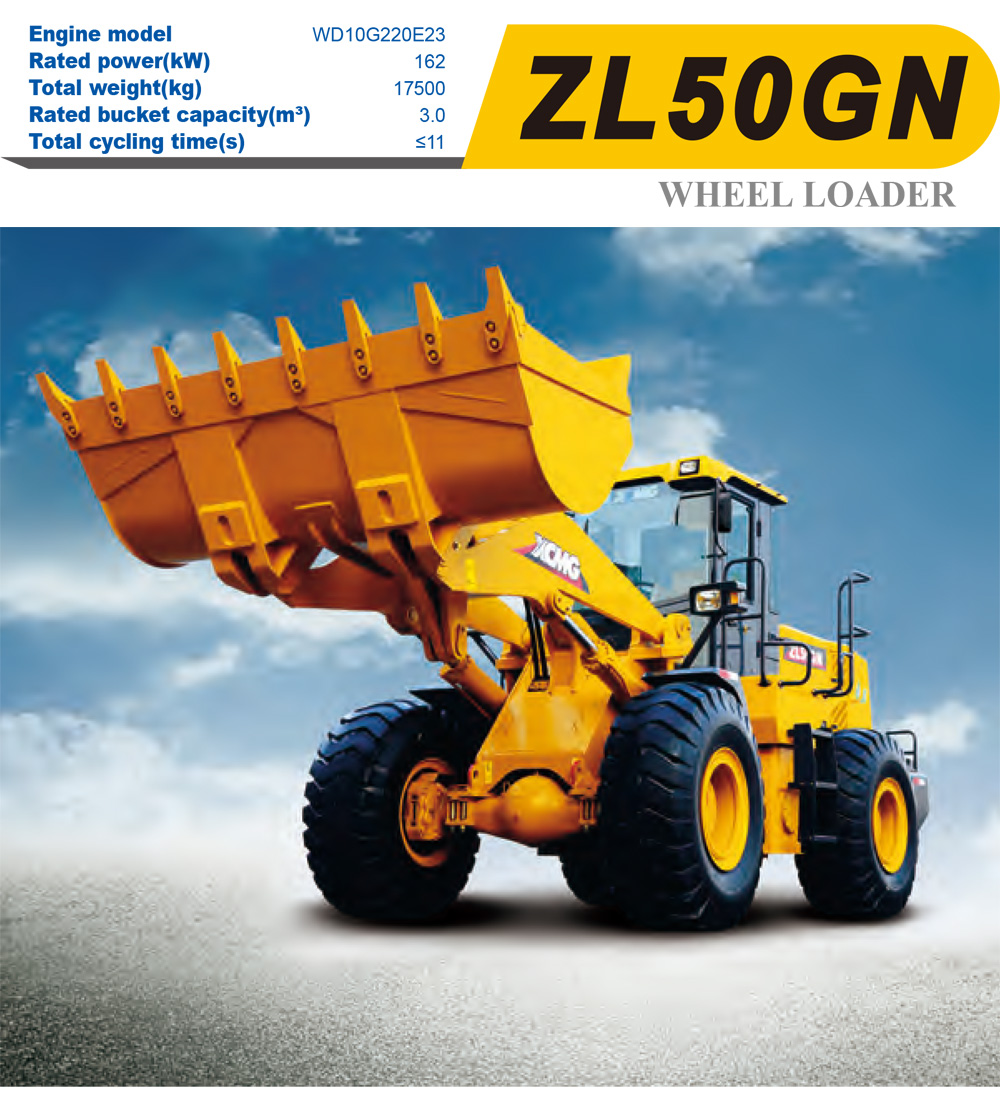

Model

WD10G220E21

Rated Power

kW

162

Travel Speed

Ⅰ-gear(F/R)

13/17km/h

Ⅱ-gear(F)

41km/h

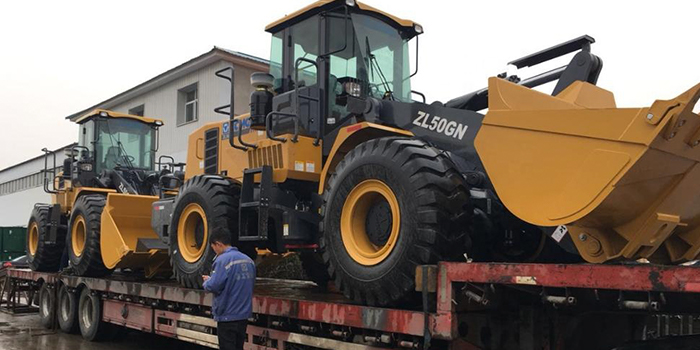

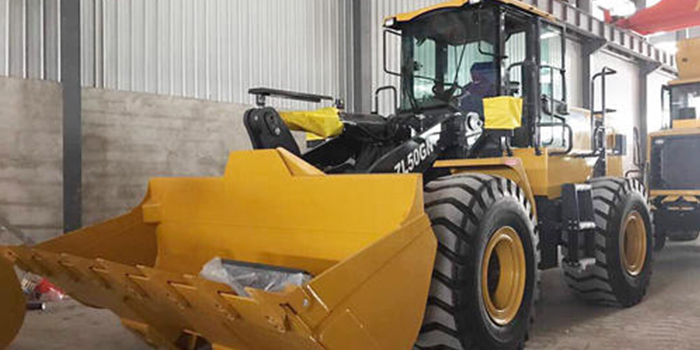

Pictures

1

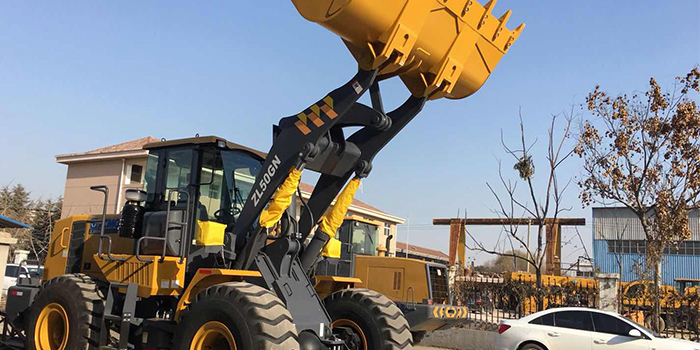

3jpg
2
4
