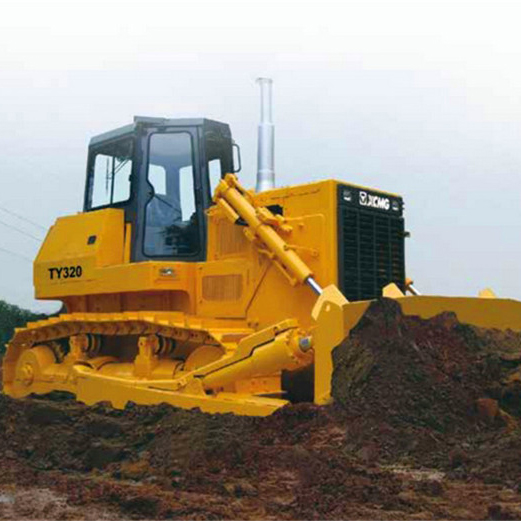

XCMG 25ton factory TY320 320HP crawler bulldozer

Introduction:

The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.

The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.


Product Detail

Product Tags

Video

Characteristic

1. The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.

2. The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.

3. It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.

4. The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bendingmoment and the high quality welds guarantee the life cycle of the main frame.The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.

1
2
3
4
5

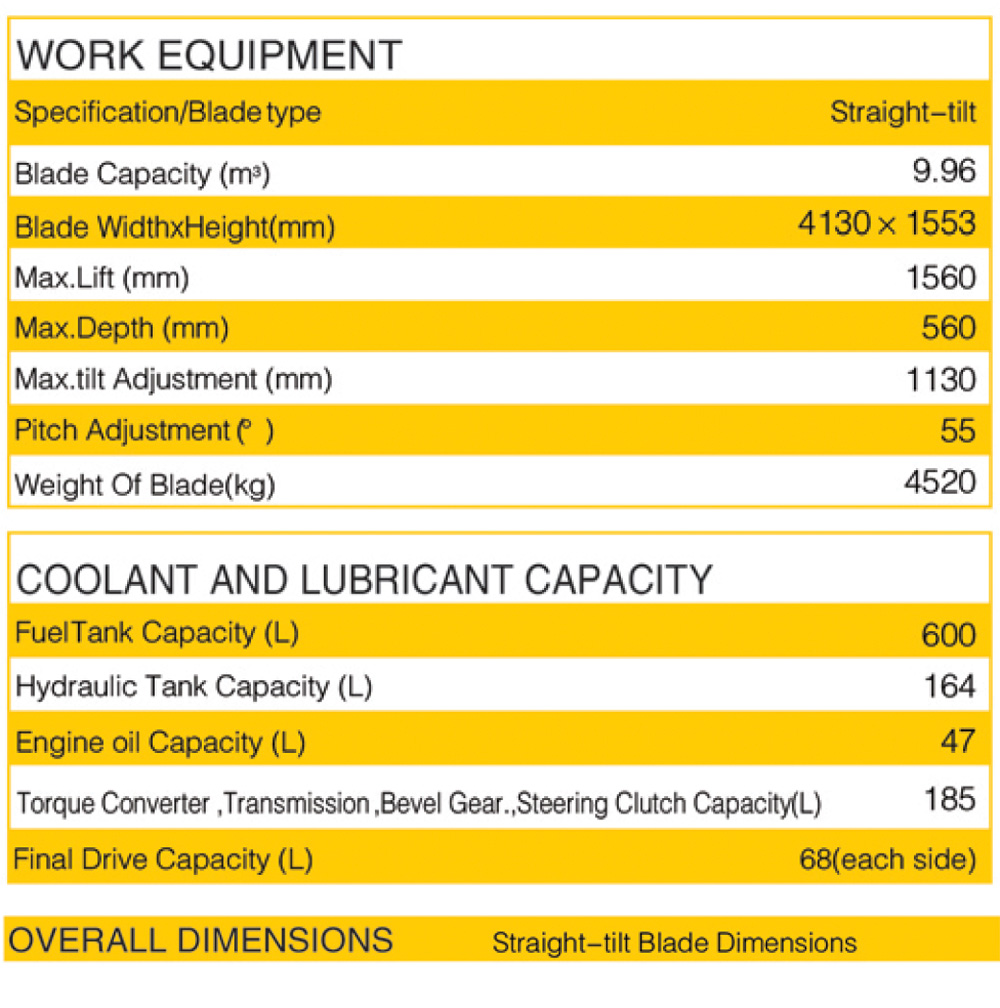

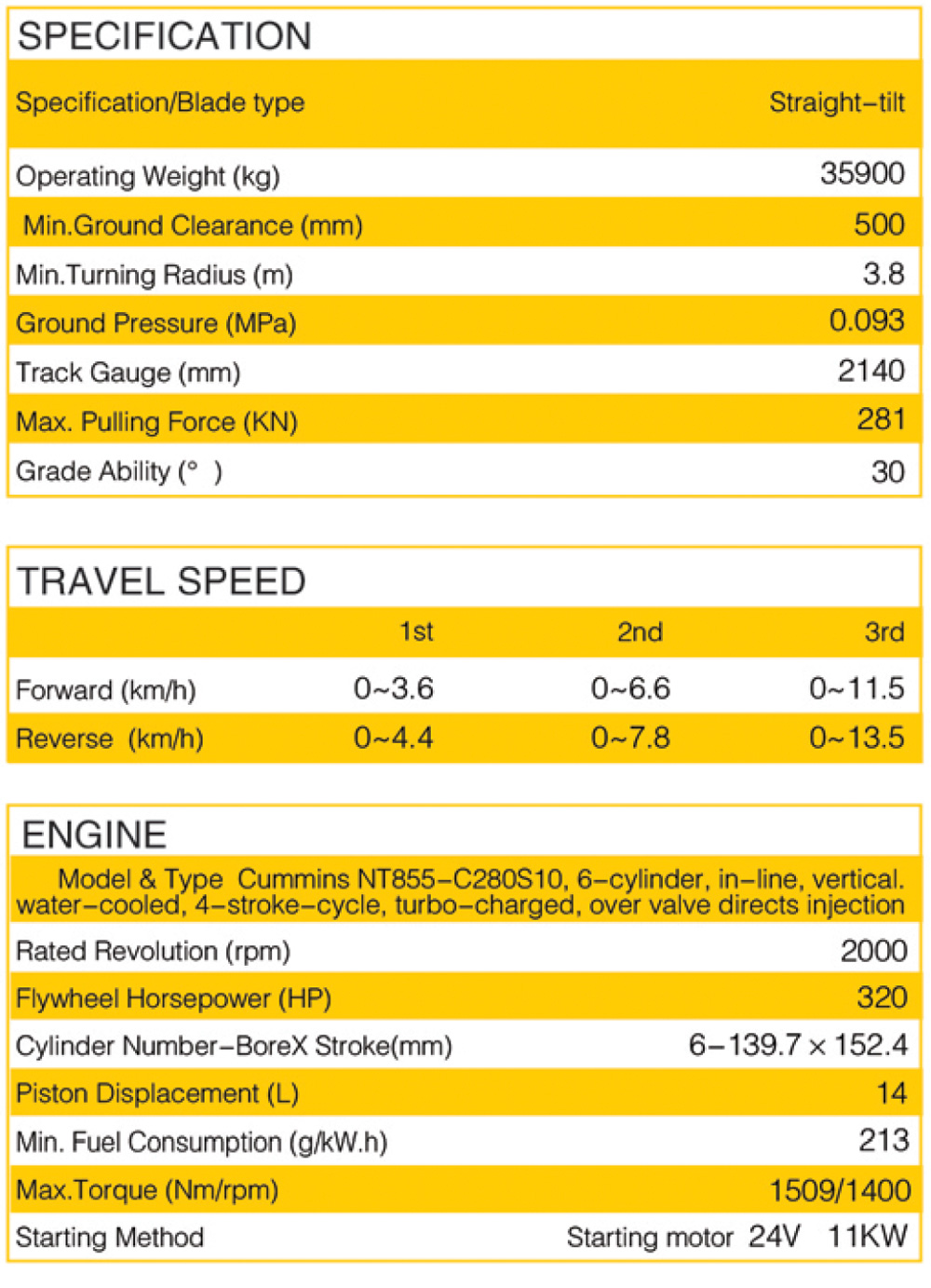

Parameter

Blade type

Semi-U blade

Angle

Width*Height(mm)

4130*1590

4850*1140

Max. lift above ground(mm)

1560

1560

Max. drop below ground(mm)

560

560

Pitch adjustment

55

55

Max. Tilt(mm)

1000

1000

Blade capacity

9.2

6.3
