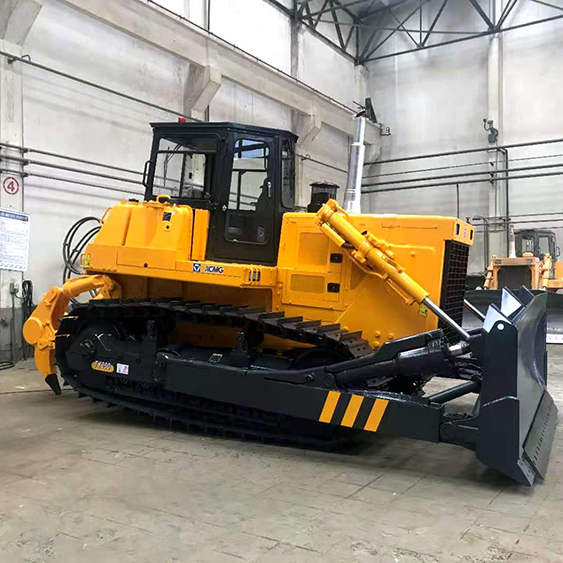

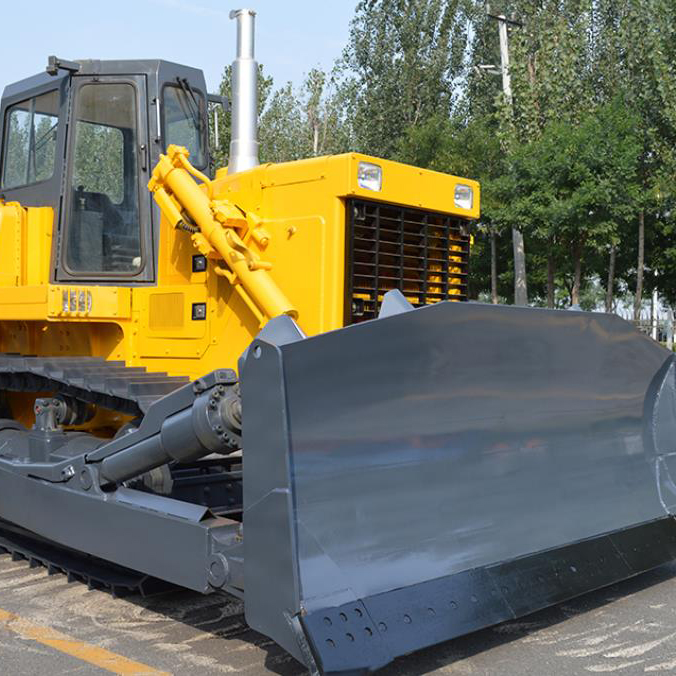

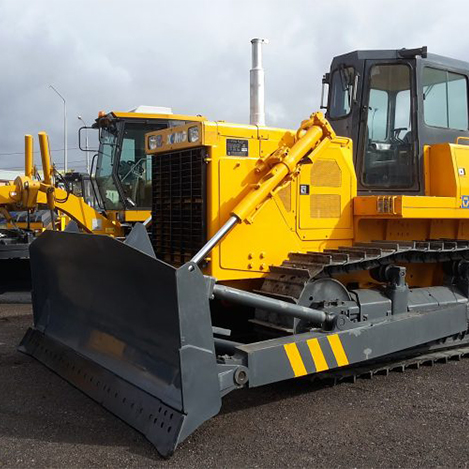

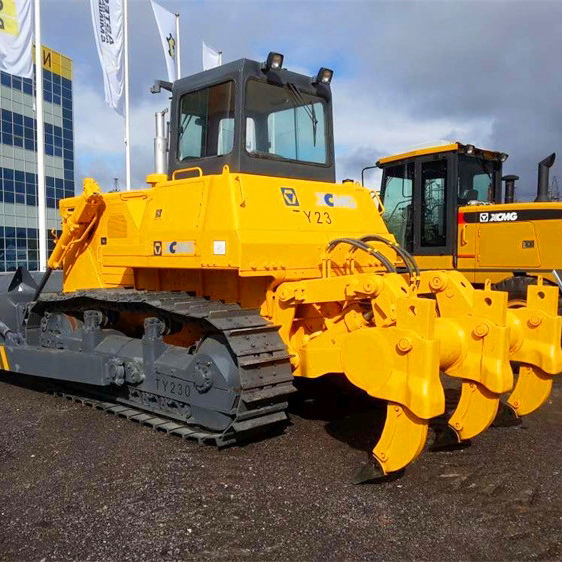

XCMG 25ton TY230 217HP Chinese new crawler bulldozer China brands machine

Introduction:

Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting. * The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.


Product Detail

Product Tags

Video

Main features

Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability.

Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting. * The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.

The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.

Professional Power

Pulse exhaust manifold for improving performance and emission.

With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.

High quality cast iron and special designed valve guide for the seal performance and durability.

Robust and precise balance design for crankshaft.

Advanced turbocharger and water cooler technology.

4 valves per cylinder for high power and low fuel consumption.

1
2
3
4

Parameter

Specification/Blade type

Straight-tilt

Angle

U-Blade

Operating Weight(kg)

17400

17700

17900

Min.Ground Clearance(mm)

400

400

400

Min.Tuming Radius(m)

3.2

3.2

3.2

Ground Pressure(MPa)

0.069

0.070

0.071

Track Gauge(mm)

1880

1880

1880

Max.Pulling Force(KN)

142

142

142

Grade Ability(°)

30

30

30

Blade Capacity(m³)

4.5

4.3

8.6

Blade WidthxHeight(mm)

3416x1145

3970x1037

4061x1386

Max.Lift(mm)

1110

1095

1095

Max.Depth(mm)

530

545

545

Max.tilt Adjustment(mm)

≥860

≥400

≥400

Pitch Adjustment(°)

55

55

55

Capability(m³/H)(Theoreticalvalue 40m)

247

247

260

Weight Of Blade(kg)

2350

2450

2560

Max.lift above ground (mm)

1210

1210

1210

Max.drop below ground (mm)

540

535

540

Pitch adjustment (°)

55

55

55

ENGINE

Model&Type Cummins NT855-C280S10/Shangchai SC11CB200G2B1/Weichai WD 10G200E25,6-cylinder,

in-line,vertical.water-cooled.4-stroke-cycle,turbo-charged,over valve directs injection

Rated Revolution(rpm)

1850

Flywheel Horsepower(HP)

160

Cylinder Number-BoreX Stroke(mm)

Cummins :6-139.7x152.4

Shangchai:6-120.6x152.4

Weicha i:6-126x130

Piston Displacement(L)

14

10.5

9.73

Min.Fuel Consumption(g/kW.h)

212

223

223

Max.Torque(Nm/rpm)

877/1250

830/1100

830/1100

Starting Method

Starting motor 24V 7.5KW
