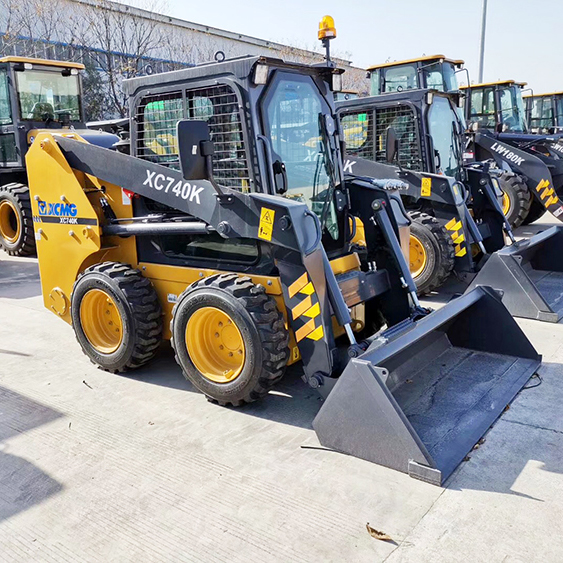

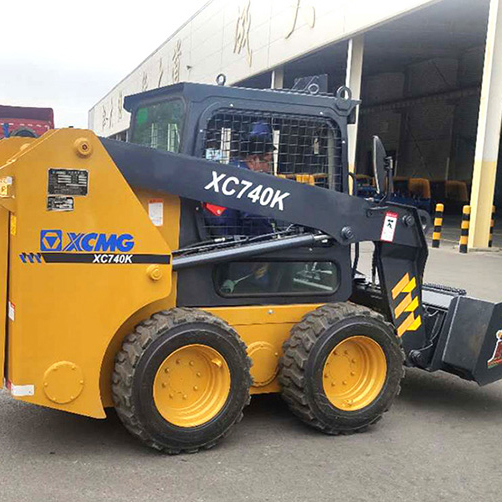

XCMG 3ton Official XC740K Skid Steer Loader

Introduction:

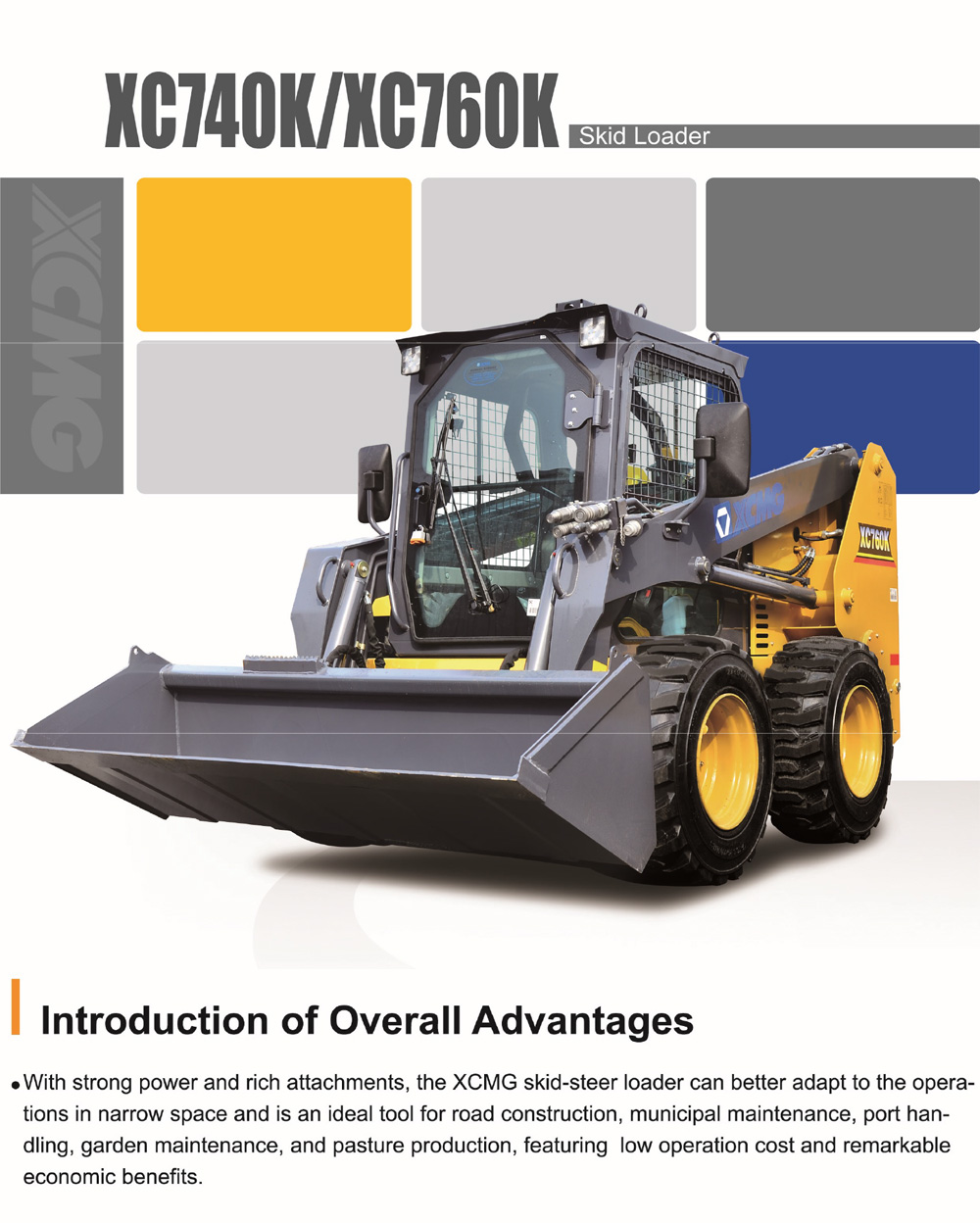

XC740K with strong power and rich attachments, the XCMG skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.


Product Detail

Product Tags

Video

Advantages and Highlights

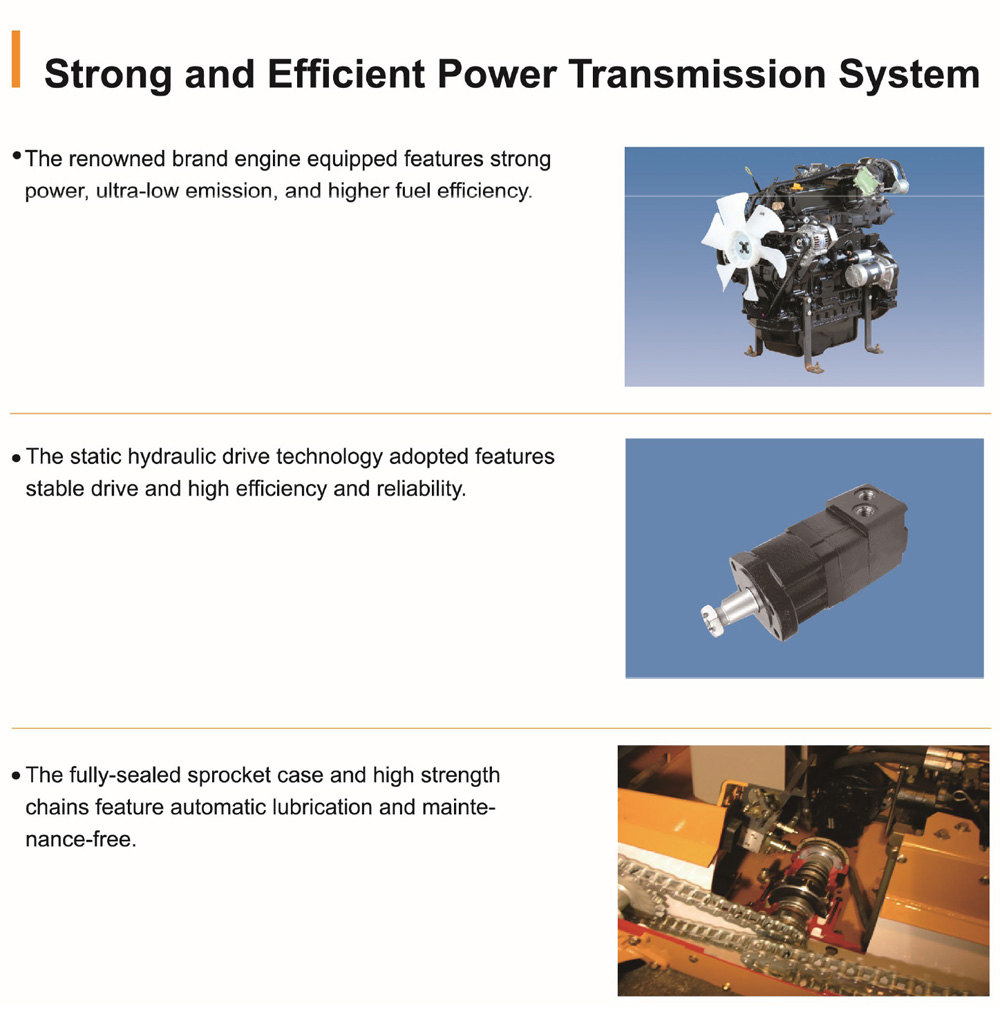

1. Strong and Efficient Power Transmission System * The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. * The static hydraulic drive technology adopted features stable drive and high efficiency and reliability. * The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

2. Solid and Reliable Design *The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realize reasonable stress distribution.

3. Flexible Operations *The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

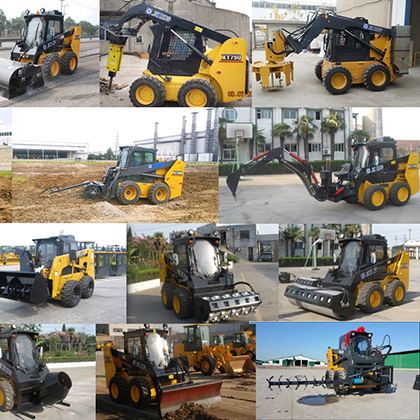

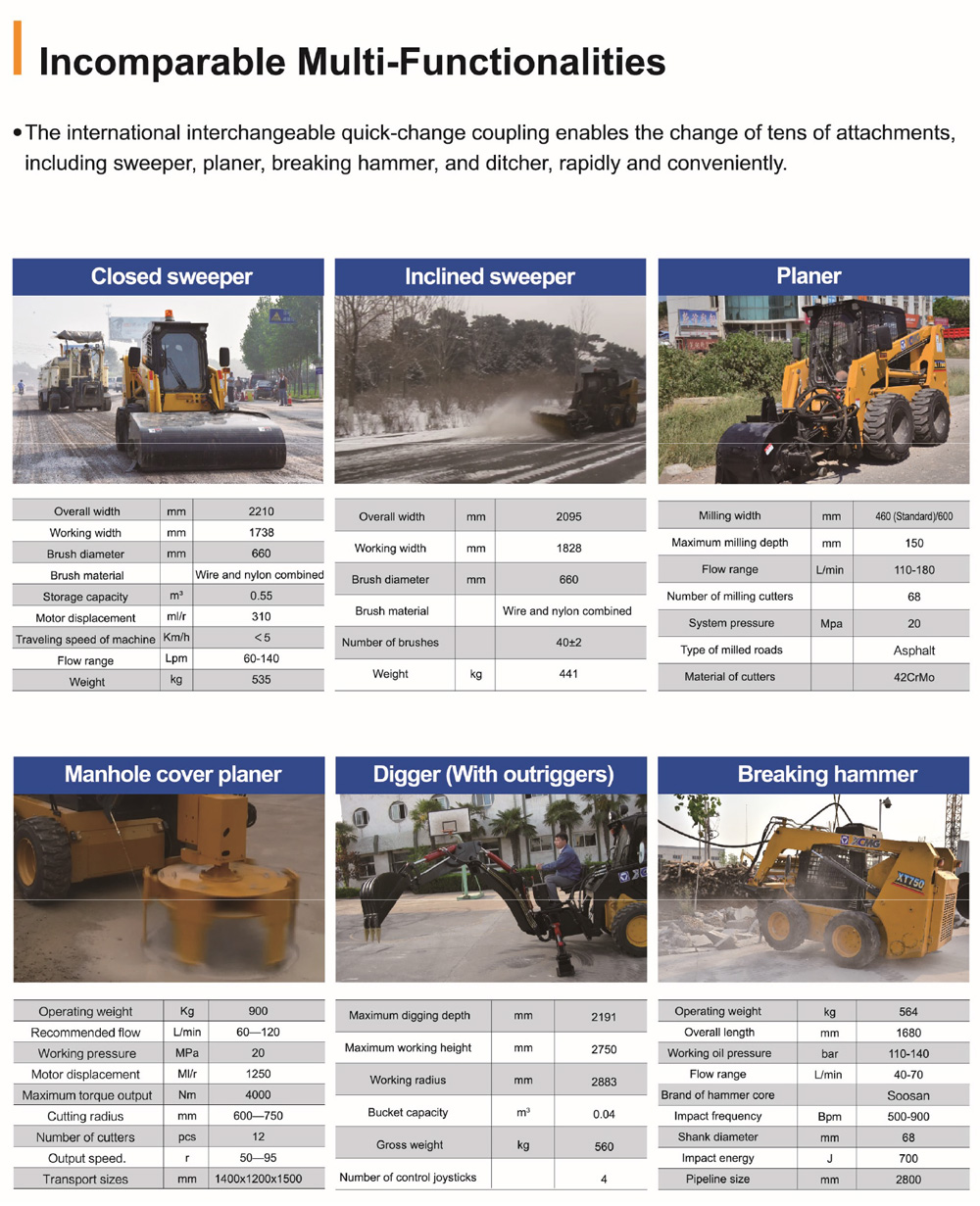

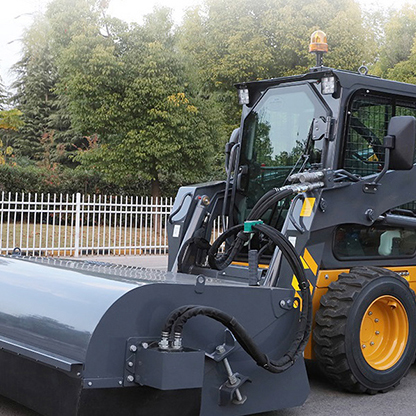

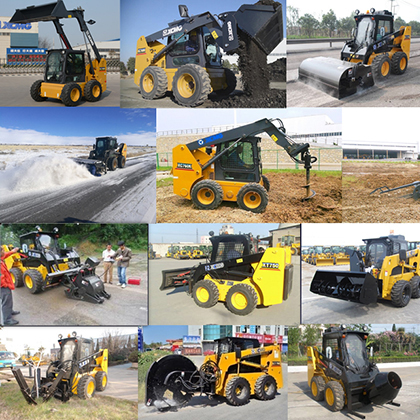

4. Incomparable Multi-Functionalities *The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, etc.

1
2
3
4
5
6

Specification

Description

Unit

Parameter value

Rated load

kg

750

Tipping load

kg

1500

Operating weight

kg

3140

Maximum breakout force

kN

18

Engine

Manufacturer



Xinchai

Model



4D27G31

Rated power

Hp/kw

49.3/36.8

Rated speed

rpm

2500

Cooling mode



Water-cooling

Performance parameter

Operation mode



Mechanical & multi-function electronic control

Tire standard



10-16.5

Maximum speed

Km/h

14

Hydraulic system

Hydraulic flow rate

L/min

62.5

Optional large flow



--

Hydraulic pressure

bar

200

Maximum operating height

mm

3878

Bucket hinge pin height

mm

3057

Cabin top height

mm

1960

Maximum horizontal height of bucket bottom

mm

2851

Length without bucket

mm

2533

Length with bucket

mm

3310

Toppling angle

°

40

Maximum unloading height

mm

2375

Ground-bucket angle

°

30

Rotating angle of bucket at highest point

°

83

Unloading distance

mm

575

Wheel base

mm

1027

Departure angle

°

25

Ground clearance

mm

183

Front radius of turning circle (without bucket )

mm

1183

Front radius of turning circle (with bucket)

mm

2066

Rear radius of turning circle

mm

1564

Length of tail

mm

1005

Wheel track

mm

1380

Tire edge width

mm

1640

Bucket edge width

mm

1800

Bucket capacity (stacking height)

0.45

Bucket capacity (tiling)

0.35

Diesel tank capacity

L

80

Capacity of hydraulic oil tank

L

60
