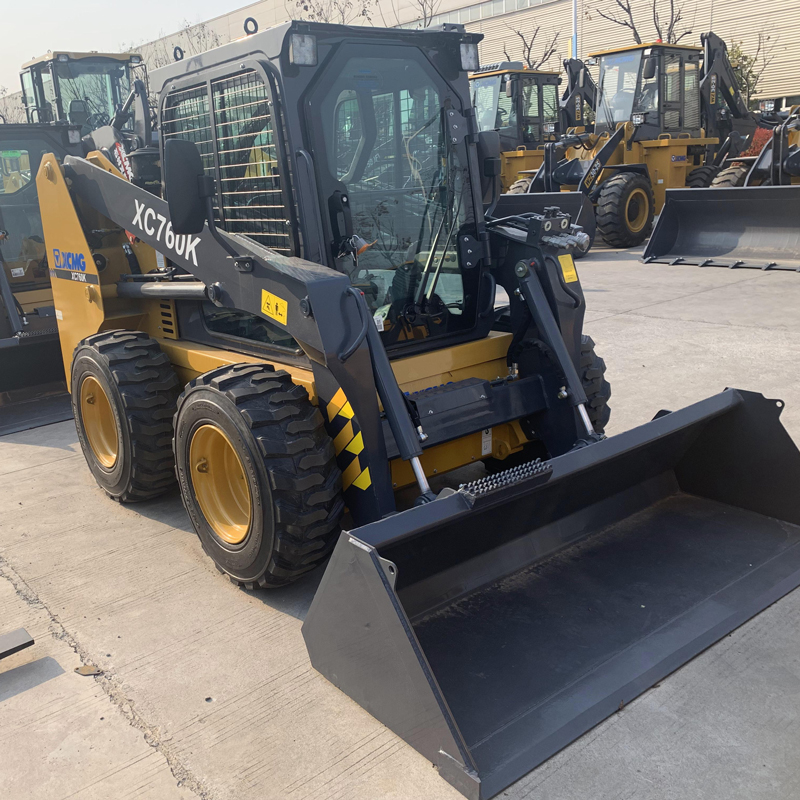

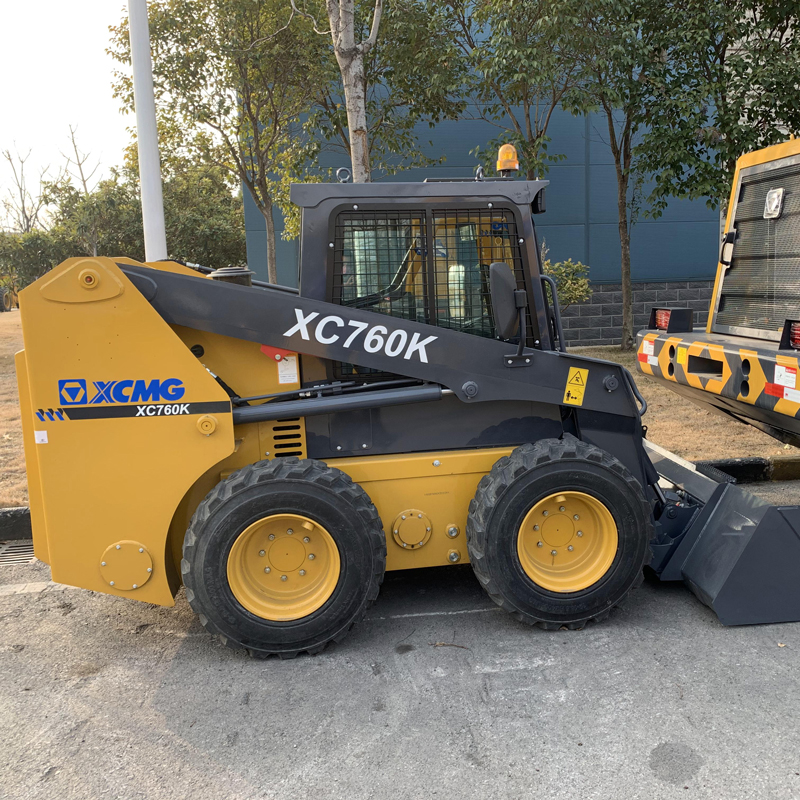

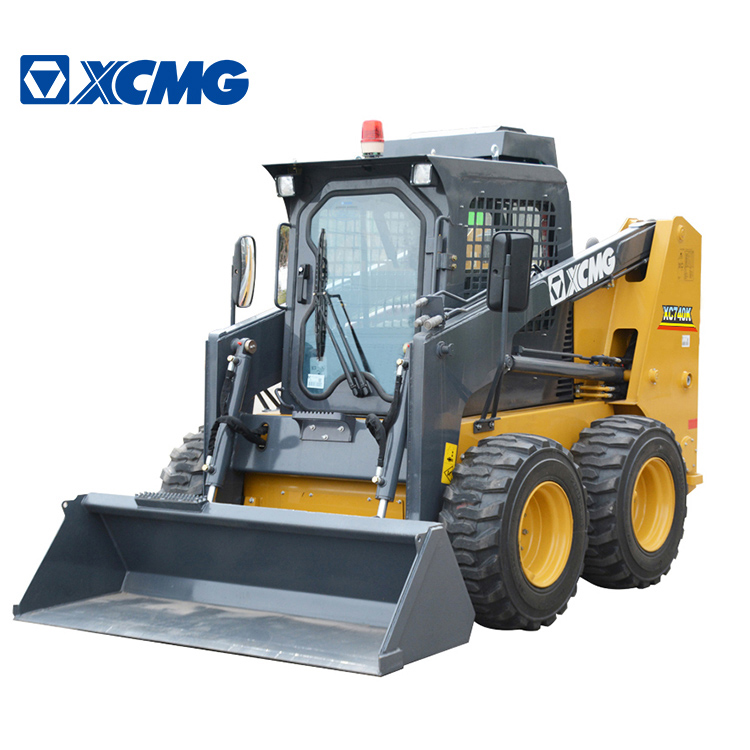

XCMG 3.5ton Official XC760K Chinese wheel track skid steer loader

Introduction:

XC760K with strong power and rich attachments, the XCMG skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.


Product Detail

Product Tags

Video

Characteristic

1. Strong and Efficient Power Transmission System * The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. * The static hydraulic drive technology adopted features stable drive and high efficiency and reliability. * The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

2. Solid and Reliable Design The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.

3. Flexible Operations The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

4. Incomparable Multi-Functionalities The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

1
2
3
4
5
6

Specification

Description

Unit

Parameter value

Rated load

kg

1080

Tipping load

kg

2160

Operating weight

kg

3450

3700

3650

Maximum breakout force

kN

22

Engine

Rated power

Hp/kw

82.2/61.3

80/60

80/60

Rated speed

rpm

2500

2300

2400

Cooling mode



Water-cooling

Performance parameter

Operation mode



Pilot hydraulic control & multi-function electronic control

Tire standard



12-16.5

Maximum speed

Km/h

12.5

Hydraulic system

Hydraulic flow rate

L/min

95

87.4

91.2

Optional large flow



142.5

131

136.8

Hydraulic pressure

bar

210

Maximum operating height

mm

4180

Bucket hinge pin height

mm

3205

Cabin top height

mm

1960

Maximum horizontal height of bucket bottom

mm

2997

Length without bucket

mm

2660

Length with bucket

mm

3610

Toppling angle

°

40

Maximum unloading height

mm

2450

Ground-bucket angle

°

30

Rotating angle of bucket at highest point

°

83

Unloading distance

mm

570

Wheel base

mm

1188

Departure angle

°

25

Ground clearance

mm

205

Front radius of turning circle (without bucket )

mm

1320

Front radius of turning circle (with bucket)

mm

2230

Rear radius of turning circle

mm

1715

Length of tail

mm

1055

Wheel track

mm

1500

Tire edge width

mm

1807

Bucket edge width

mm

2000

Bucket capacity (stacking height)

0.6

Bucket capacity (tiling)

0.47

Diesel tank capacity

L

95

Capacity of hydraulic oil tank

L

70
