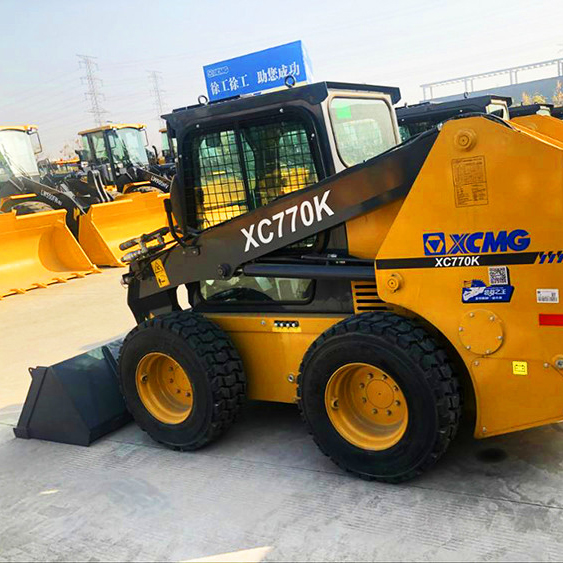

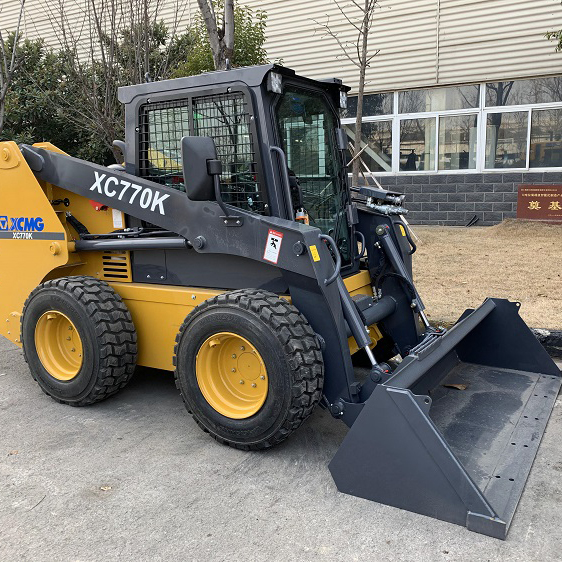

XCMG 4ton XC770K mini skid steer loader

Introduction:

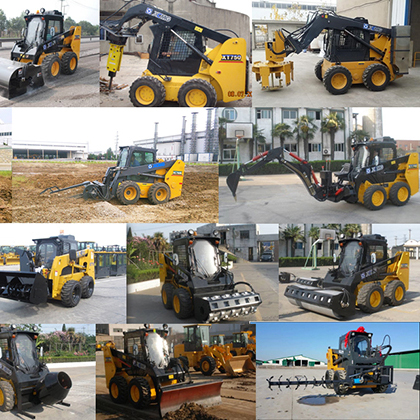

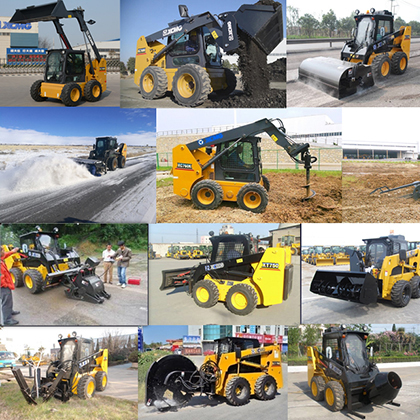

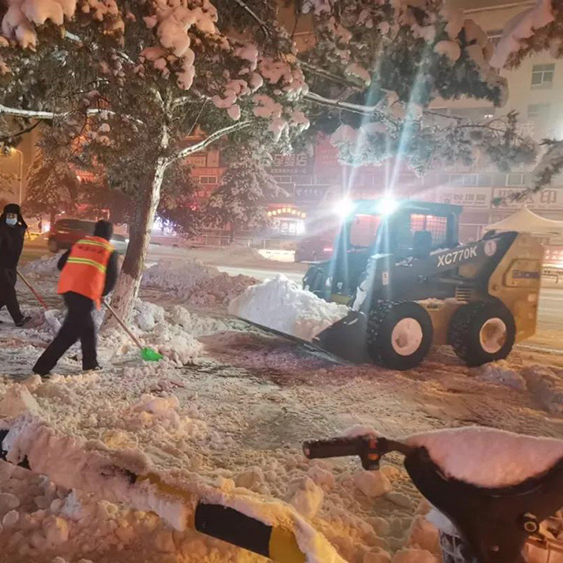

XC770K is an all-new heavy-load skid-steer loader launched by XCMG. This machine is equipped with high power engine to enhance the overall flow and meet the operation needs of numerous attachments. The extended wheelbase of this machine guarantees the stability and safety under high load. It’s mainly applied for high-load working conditions including domestic snow-removing market and municipal maintenance field.


Product Detail

Product Tags

Video

Characteristic

Stong power and high energy-conservation and efficiency The double-speed motor with maximum speed up to 22km/h is installed to achieve high working efficiency.
Platform design for high reliability and firmness The serialization design is applied for the frame based on the skid-steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.

Comfortable operating environment * The cab features a broad space and the seat is adjustable. The width of the cab is increased to 930mm and the height is increased to 1,232mm. The air-cushioned seat is applied to remarkably improve the comfort.

This machine can work under the environment with >-25ºC temperature, featuring high cold resistance. The heating efficiency is enhanced for the interior of cab to improve the user’s operation comfort under cold environment. The integral heating and air conditioning system is applied and the air passage structure is optimized to achieve high airflow rate and more appropriate operation environment.

1
2
3
4
5
6
7
8
9
10

Specification

Rated power

KW

74.9

Operating mass

KG

3700

Rated loading capacity

kg

1250

Dumping height

mm

2450

Dumping range

mm

570

Overall machine dimensions (L×W×H)

mm

3750×2000×1960
