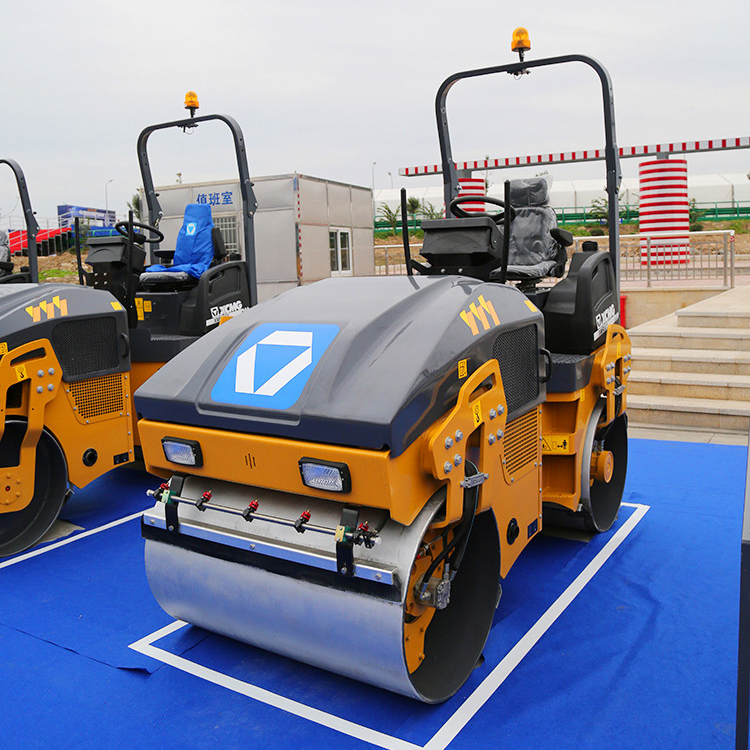

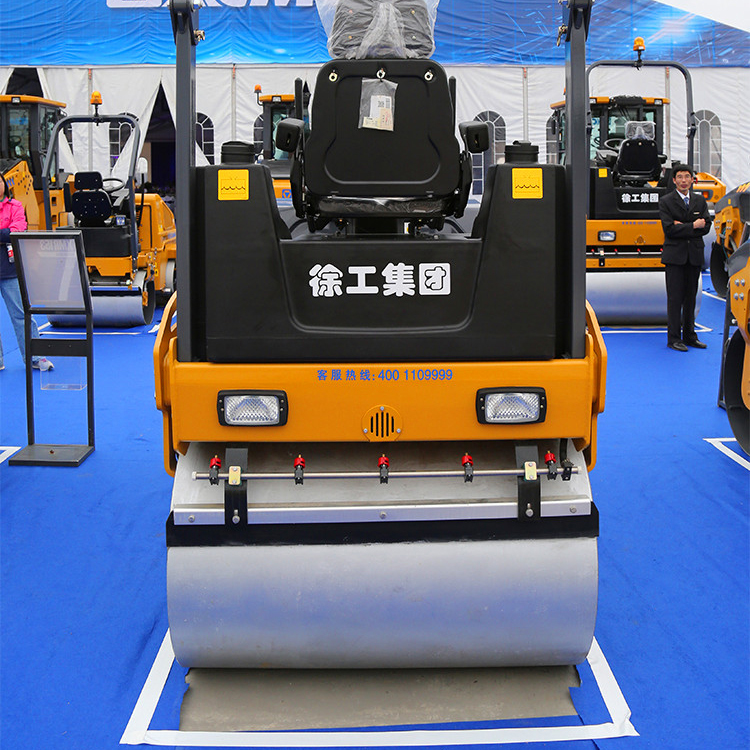

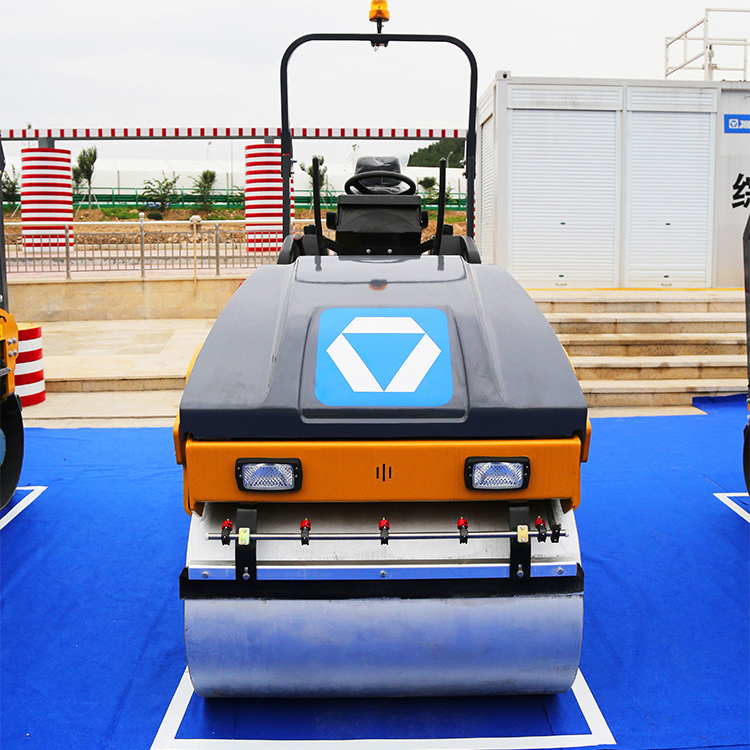

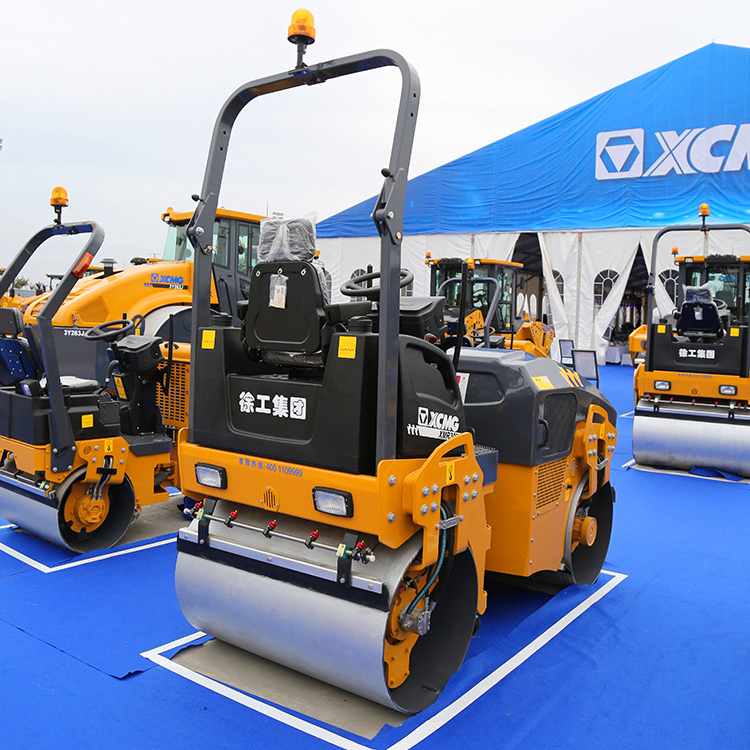

XCMG 3ton XMR303 Vibratory Road Roller Double Drum Roller

Introduction:

XMR303 is a light vibratory roller with operating weight of 3 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work, is the idealist compaction machinery for all sorts of parking lot construction, road, sidewalks and bike-way compaction, as well as a variety of road maintenance engineering.

Inquiry

Product Detail

Product Tags

Video

Performance Characteristics

Closed hydraulic drive system is adopted to realize step-less speed change.

Brake system uses the neutral position braking, emergency braking and parking brake, short braking distance and high braking torque, ensuring the safety of the product.

The front vision of machine is less than 1 x 0.75 m, rear view without any shade, which provides drivers with a good sight range.

The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions.

High frequency vibration and excitation force design, high working efficiency, good compaction effect.

Vibration drum width is larger than frame width, convenient to observe compaction condition of drum edge in the construction.

Specification

Parameter	Unit	XMR303
Working weight	kg	3000
Static line load (front/rear)	N/cm	129/129
Vibration frequency	Hz	60
amplitude	mm	0.46
Exciting force	kN	32
Vibration wheel (diameter x width)	mm	746×1200
Theoretical climbing ability	%	30
Speed of work	km/h	0～ 9.5
Wheelbase	mm	1870
Steering angle	°	±30
Swing angle	°	±10
Minimum turning radius (inner) / (outside)	mm	2990 / 4190
Minimum ground clearance	mm	290
engine model		ZN390B
rated power	kW	28.5
Rated speed	r/min	2600
