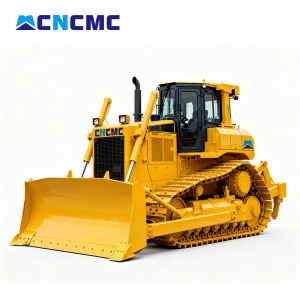

CNCMC TD32 320Hp High-Drive Crawler Bulldozer

Introduction:

  • High Power and Strong Traction

TD32 delivers exceptional pushing force and traction, enabling efficient movement of heavy soil, rock, and debris.

  • Excellent Dozing Performance

The powerful engine and optimized blade design provide superior dozing, spreading, and leveling capabilities, reducing the number of passes required.

  • High Efficiency and Productivity

With strong power and responsive controls, the bulldozer works faster and more effectively, improving overall productivity on large‑scale projects.
Good Stability and Durability.The robust undercarriage, heavy‑duty frame, and balanced weight distribution ensure stable operation in tough conditions and extend machine life.

  • Wide Range of Applications

Suitable for land clearing, road construction, site preparation, mining, and earthmoving, making it a versatile and essential machine for heavy construction.


Product Detail

Product Tags

Model
  TD32
specifications
Dozer   Tilt
Operating weight(including ripper) kg 36800
Ground pressure kpa 94
Track gauge mm 2083
Gradient ° 30/25
Min. ground clearance mm 556
Dozer capacity 11.24
Blade width mm 3940
Max. digging depth mm 582
Overall dimensions(including ripper) mm 7930×3045×3549
Engine
Type   NTA855-C360S10
Rated revelation rpm 2100
Engine power kw 257
Torque storage coefficient % 20
Undercarriage system
Type   Swing type of sprayed beam.Suspended Structure or equalizer bar
Number of track rollers(each side)   8
Pitch mm 216
Width of shoe mm 560
Gear
Forward km/h 0-10.8
Backward km/h 0-13.9
Implement hydraulic system
Max. system pressure Mpa 20
Pump type   High perssure gears pump
System output L/min 220
