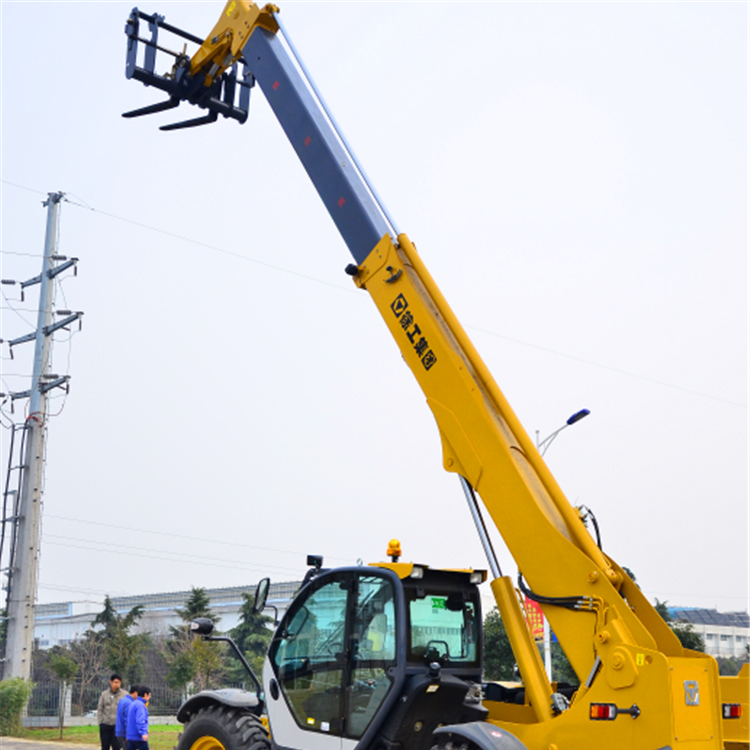

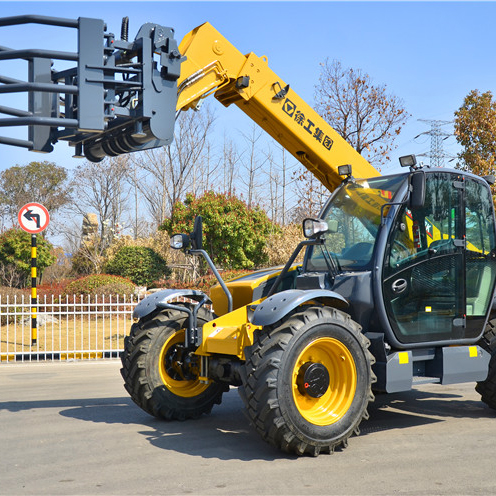

China Factory for Small Forklift - XCMG 3.5 ton 14m telescopic handler XC6-3514K – China Construction Detail:
The panoramic cab and the XCMG’s visual identity appearance design feature good fashion and elegance.
With compact short wheelbase and lateral engine arrangement, this machine features high handiness and flexibility.
The integrated static-pressure steeples variable drive system realizes full speed range drive and stable driving.
The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
The electron-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
The advanced human-machine interactivity, intelligent heat dissipation system, and deducting control system embody high technological sense and intelligence.
This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users’ individual needs.
|
Description |
Unit |
XC6-3514K |
|
Gross weight |
kg |
10500 |
|
Engine power |
kW |
74.9 |
|
Rated load |
kg |
3500 |
|
Effective load at maximum forward reach |
kg |
635 |
|
Maximum lifting height |
mm |
13700 |
|
Maximum forward reach |
mm |
9600 |
|
Center distance of load |
mm |
600 |
|
Luffing angle |
° |
-4~73 |
|
Fork angle |
° |
90~18 |
|
Maximum traction force |
kN |
≥55 |
|
Gradeability |
° |
≥25 |
|
Maximum traveling speed |
km/h |
30 |
|
Turning radius |
mm |
≤4750 |
|
Braking distance |
m |
≤8 |
|
Overall length |
mm |
6380 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
2740 |
|
Wheelbase |
mm |
2980 |
|
Wheel tread |
mm |
2060 |
|
Fork length |
mm |
1200 |
|
Bale clamp diameter |
mm |
800-1800 |
Product detail pictures:
