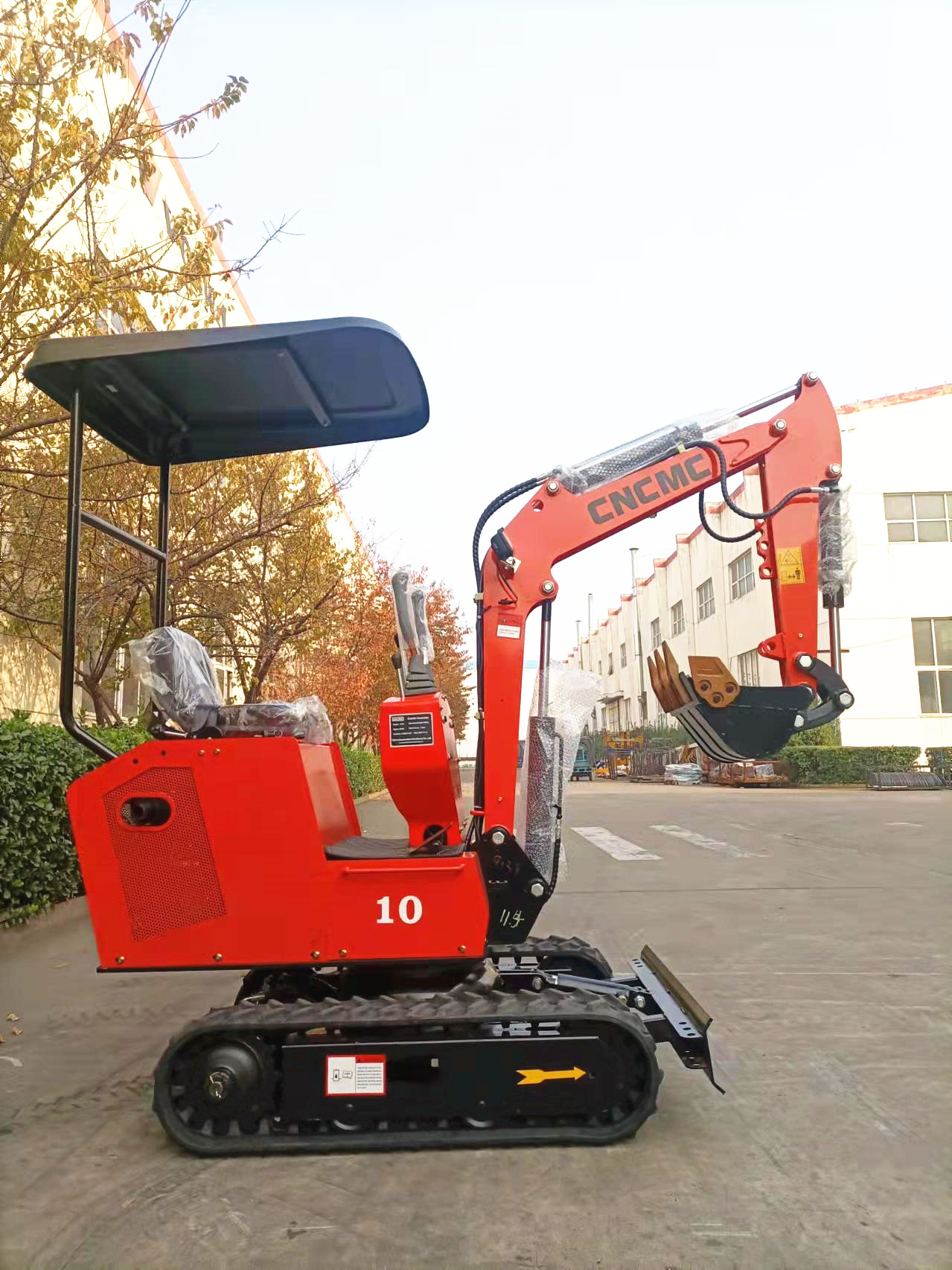

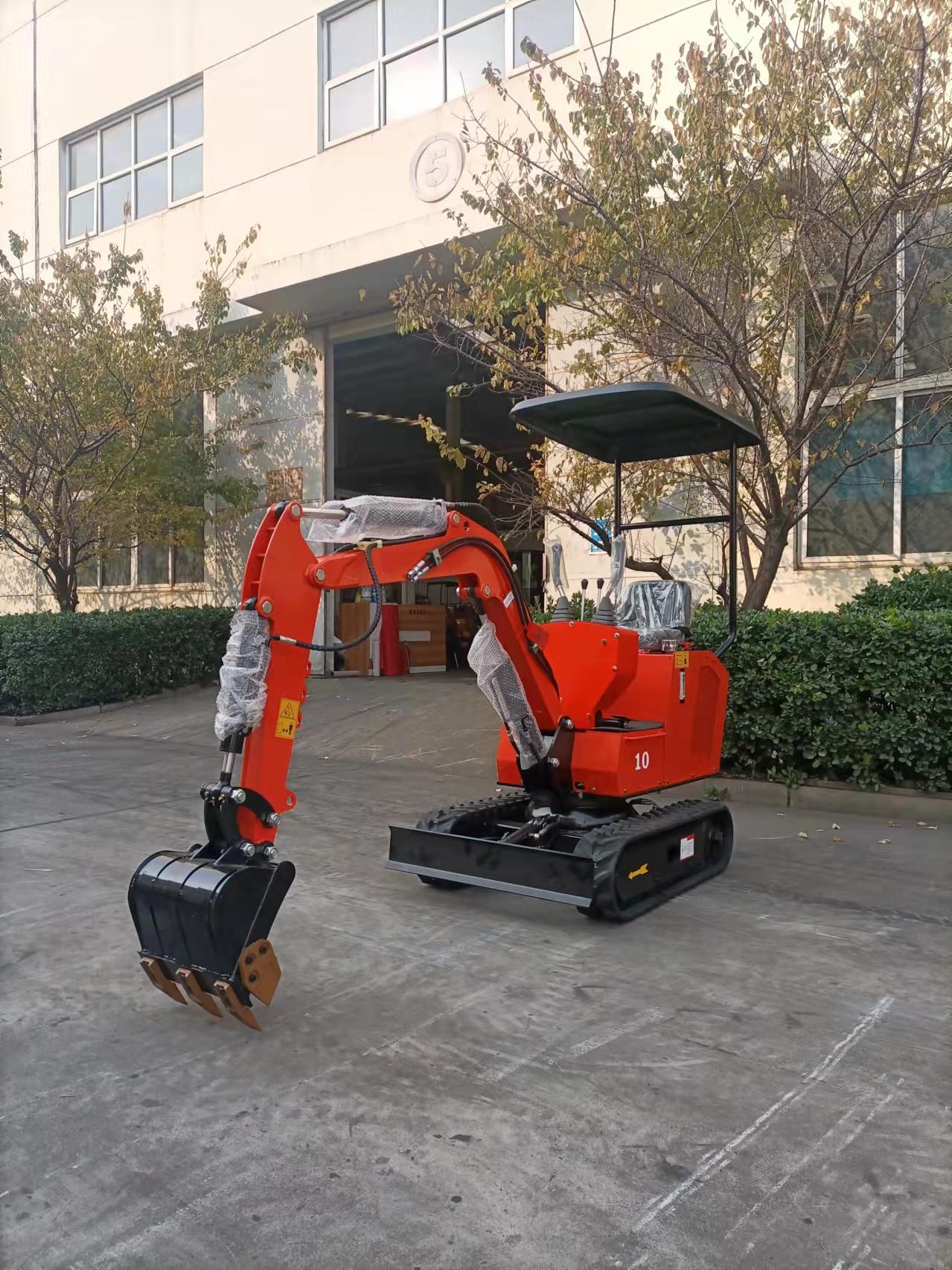

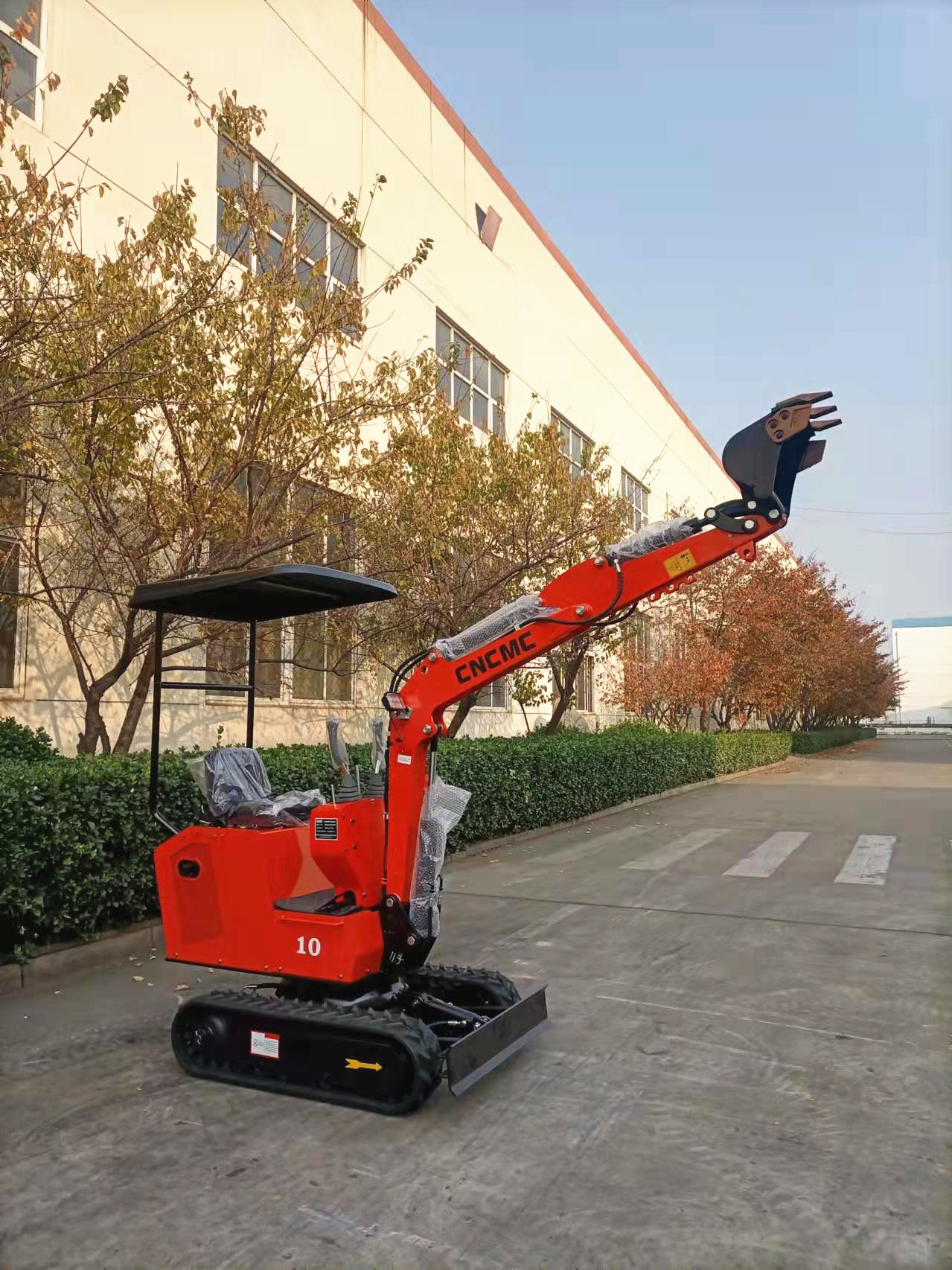

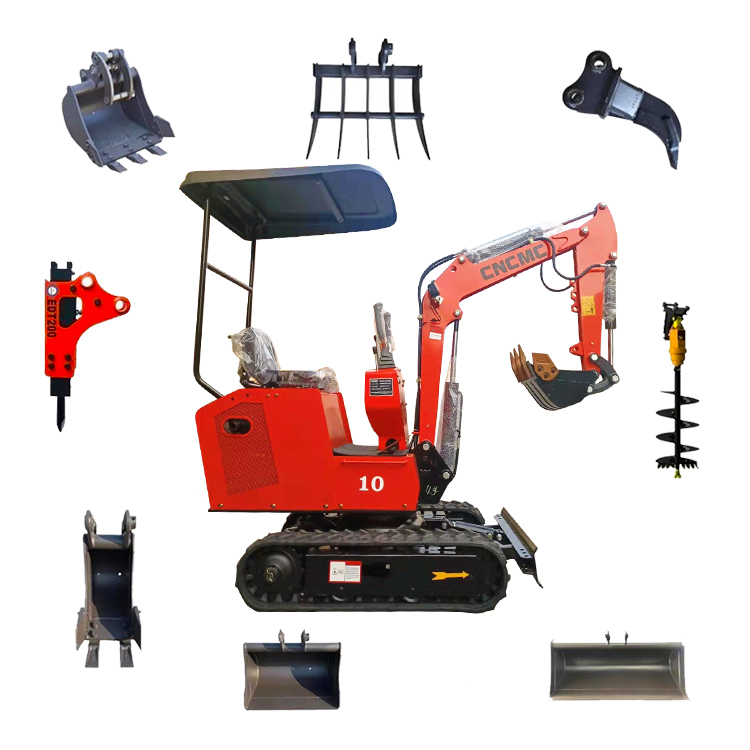

CNCMC 1 Ton CT10 High Quality CNCMC Chinese MINI Excavator

Introduction:

This small excavator provides power and performance in a compact size to help you work in the most demanding applications. It can pass through a narrow area, making it an excellent machine for indoor work.

Inquiry

Product Detail

Product Tags

Video

Features

It is generally composed of power device, transmission device, walking device and working device.

Principle: use the bucket to excavate the material higher or lower than the bearing surface, and load it into the transport vehicle or the earth moving machinery unloaded to the stockyard.

A self-propelled mining machine that uses a bucket to load stripping materials or mineral products from the working face and transport them to the discharge site for unloading.

Product parameter

Performance Parameters (model: CT-10)
Weight	900kg	Power	9.8kw
Bucket width	380mm	Engine model	Changchai/Koop
Gradeability	30°	Bucket capacity	0.025m³
Dimension
Transport length	2770mm	Walking speed	2km/h
Chassis width	890mm	Track width	180mm
Total track length	1230mm	Minimum ground clearance	380mm
Scope of work
Maximum digging depth	1650mm	Maximum digging height	2610mm
Minimum radius of gyration	1330mm	Maximum ground excavation radius	2850mm
Maximum unloading height	1850mm	Dozer blade lifting height	350mm
Transport size	2770x896x1490 mm
