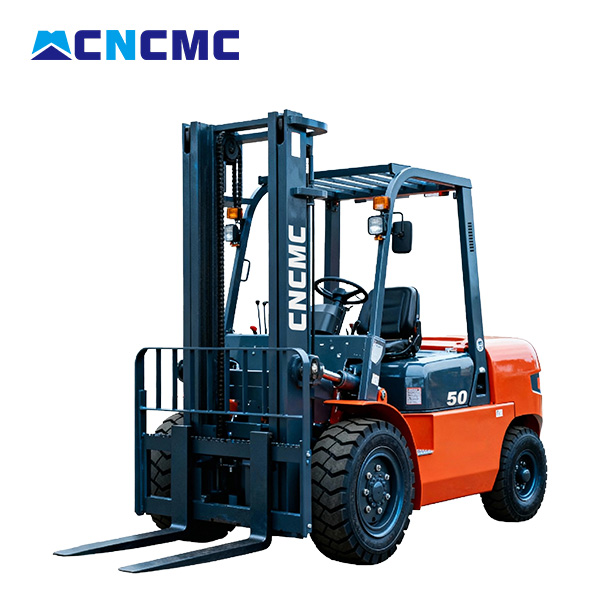

CNCMC 2026 New CPCD50 5 Ton Diesel Forklift

Introduction:

  • Strong Lifting Capacity

Handles loads up to 5 tons efficiently, suitable for heavy pallets, containers, and bulk materials.

  • Stable and Safe Operation

Heavy‑duty counterweight and robust frame ensure stability during lifting and transport, reducing the risk of tipping.

  • High Efficiency

Fast lifting, lowering, and traveling speeds, combined with responsive controls, improve loading/unloading productivity.

  • Flexible and Adaptable

Available in diesel, electric, or LPG models, suitable for warehouses, factories, ports, and outdoor construction sites.

  • Cost‑Effective Performance

Balances power and fuel/energy efficiency, with lower maintenance costs compared to larger forklifts.


Product Detail

Product Tags

Specification   CPCD50
 Fuel type   Diesel
Load capacity kg 5000
Load center mm 500
Lift height mm 3000
Free lift height mm 100
Fork size mm 1070x150x45
Mast tilting angle Deg. 6/12
Min.turning radius mm 2680
Groud clearance mm 135
Overhead guard mm 2160
Front overhang mm 455
Max travel speed km/h 22
Max lift speed mm/s 330
Max.traction power KN 18.5
Max. gradeability % 20
Length With fork mm 4195
Without fork mm 2975
Width mm 1380
Mast extended height mm 4250
Mast lowered height mm 2200
Tires Front   300-15-18PR
Rear   700-12-10PR
Wheelbase mm 2000
Tread mm 1000/970
Service weight Kg 5490
Battery V/Ah 12/80
Engine Model   Xinchai 498
Power kw/r.p. 45
Transmission L Hydraulic, 1/1
Operating pressure Mpa   18.5
