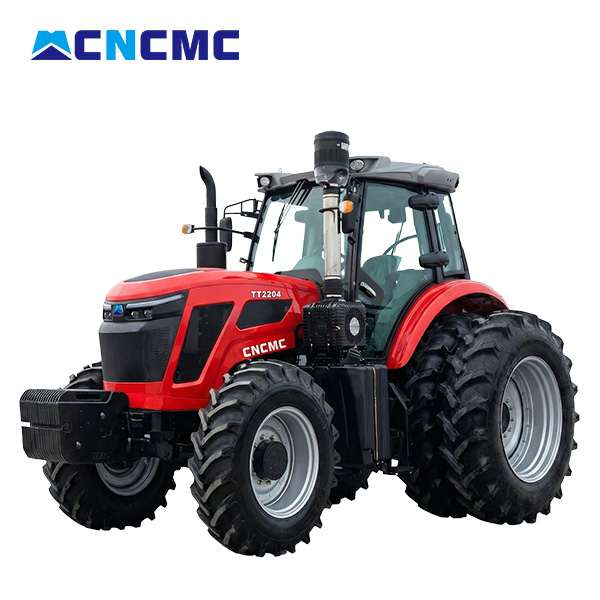

CNCMC CE Certification TT2204 220hp 4wd Large Size Wheel Farm Tractor

Introduction:

  • High Power for Heavy Tasks

TT2204 provides strong pulling force and PTO power, ideal for plowing, deep tillage, and heavy‑duty field operations.

  • Excellent Fuel Efficiency

Advanced engine technology delivers powerful performance while maintaining good fuel economy, reducing operating costs.

  • Superior Traction and Stability

Equipped with large rear tires and a heavy‑duty chassis, it offers strong grip and stability on muddy or uneven terrain.

  • High Productivity

Fast travel speeds, responsive controls, and compatibility with large implements help cover more land in less time.

  • Wide Range of Applications

Suitable for plowing, seeding, harvesting, spraying, and transport, making it a versatile workhorse for modern farms.


Product Detail

Product Tags

Dimension (L×W×H)
5800×2800×3350mm
Min.operating weight
7700kg
Wheelbase
3000mm
Wheel track (front/rear)
1720、1820、1940、2040、2140/1700mm




Engine
 Model
/
YTO
 Type
/
 Vertical,water-cooling,four stroke,common rail
 Qty of cylinders  cylinder
6
 Rated power  HP/KW
220HP /161.8kw
 Rated speed  r/min  2200


Drive train
Clutch
/
 Single disc,dry,independent control,dual stage
Gearbox /
 TS16F+16R
Gear shift type /  Synchronizer
 Steering
 Steering type
/  Full hydraulic steering
 Brake  Brake type /  Mechanical control,wet,disc
 Walking device  Tire size(front/rear) /
 16.9-28/20.8-38







Working device
 Suspension device type /  Rear,one-point suspension
 suspension device category
/
 Category Ⅲ

 Tillage Depth Adjustment
/
 Height adjustment,floating control
 Hydraulic output device
 group
4
 Standard PTO speed
 r/min
 8 keys or 6 keys、760/850or540/1000
