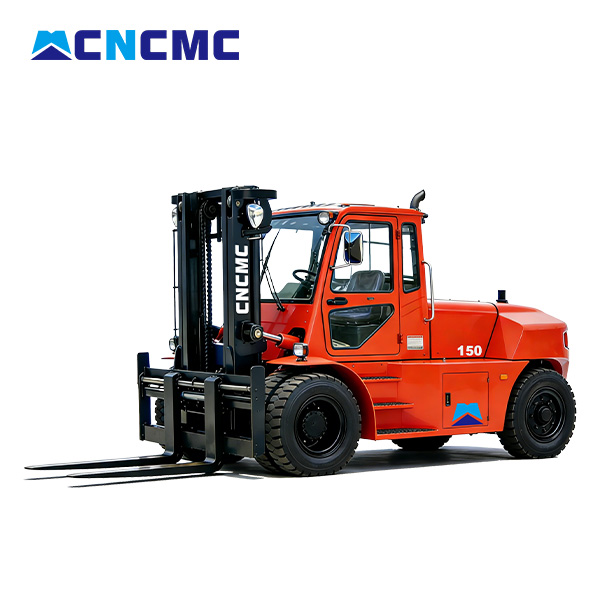

CNCMC CPCD150 15 Ton Diesel Forklift Truck

Introduction:

15-ton extra-heavy load capacity for large and heavy cargo handling.
High-power diesel engine with strong traction and stable performance.
Heavy-duty reinforced structure, high rigidity and safety.
Perfect for ports, steel plants, mines and heavy industrial sites.
Long service life, low failure rate and high working efficiency.

Product Detail

Product Tags

Specification	CPCD150	Performance technical data	CPCD150
Overall height (forks raised with backrest)	5885mm	Load capacity	15000kg
Max lifting height	4000mm	Load center	600mm
Free lift	0	Mast type	Wide view mast
Overall height (mast lowered, upright)	3885mm	Fuel	diesel
Backrest height (from up face of forks)	1035mm	Lifting speed (with load/without load)	280/310mm/s
Overall length(with fork)	6340mm	Lowering speed (with load/without load)	≤600/≥300mm/s
Length to fork face	4840mm	Max.driving speed (with load/without load)	24/26Km/h
Overall height (overhead guard)	2875mm	Max. grade-ability (with load / without load）	15/21%
Overall width	2450mm	Front driving wheel/ Rear steering wheel	4x/2
Fork length	1500mm	Tire type	Pneumatic
Fork thickness	90mm	Tires data(front/ rear)	12.00-20-18PR
Fork width	180mm	Battery voltage/ capacity	2×12/150V/Ah
Fork lateral adjustment (outside of forks)	508-2012mm	Brake distance	≤7m
Overhead guard clearance (from seat face)	1000mm	Service brake	Dynamic brake
Coupler height	630mm	Parking brake	Drum type
Front overhang	804mm	Internal combustion engine model	XICHAI CA6DF3-17GAG3U
Rear overhang	936mm	Transmission type (forward/ backward)	Electric Auto shift
Wheel base	3100mm	Total weight	18200kg
Tread (front tyres)	1765mm
Tread (rear tyres)	1890mm
Min. under clearance (bottom of mast)	260mm
Min.turning radius	4550mm
Min. intersecting aisle	3870mm
Tilting angles (forward/ backward)	6/12
