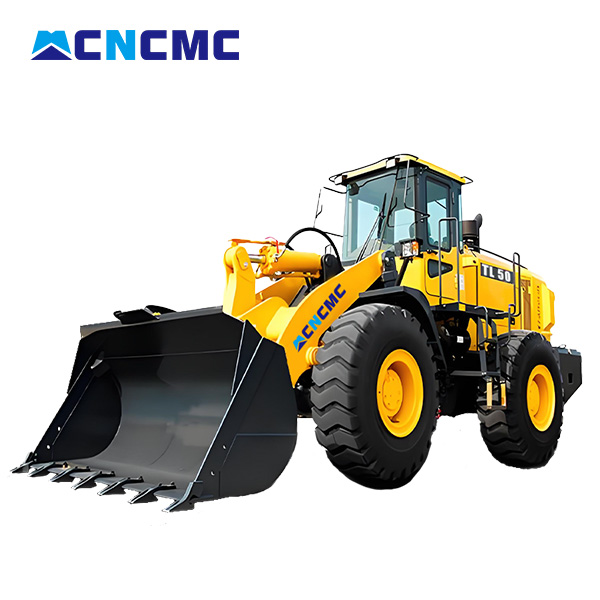

CNCMC Direct Sales TL50 5 Ton 162kw 3.1m³ Bucket Medium Wheel Loader

Introduction:

  • Strong Loading Capacity

With a 5 ton rated load, it efficiently handles bulk materials such as soil, gravel, sand, and aggregates.

  • High Efficiency

Fast bucket movements, strong breakout force, and good traction enable quick loading cycles and higher productivity.

  • Maneuverable and Compact

Its medium size and tight turning radius make it easy to operate in confined job sites, yards, and urban construction areas.

  • Fuel Efficient and Cost‑Effective

Balanced power and weight result in lower fuel consumption and maintenance costs compared to larger loaders.

  • Versatile Applications

Suitable for construction, agriculture, landscaping, waste handling, and material transport, with various attachments available to extend functionality.


Product Detail

Product Tags

Dimensions
Overall length (bucket on the ground) 8020 mm
Overall width(outside of wheels) 2800 mm
Bucket width 2946 mm
Overall height 3450 mm
Wheel base 3100 mm
Min. ground clearance 450 mm
Specification Rated load 5000 kg
Rated bucket capacity 3.1m³
Operating weight 16500kg
Min. turning radius(outside of the tyre) 5970 mm
Turning angle of the chassis 38 º
Performance Travelling speed Forward:11.7/40.3 km/h
Reverse:15.9km/h
Max. tractive force 170kN
Grade ability 30 º
Dumping angle 45 º
Dumping clearance 3136mm
Dumping reach 1171mm
Total cycling time ≤11 s
Engine Model WD10G220E23
Type Water cooled, 4 stroke, 6 cylinder in line, turbocharged
Rated power 162kW
Max. torque 900 N.m
