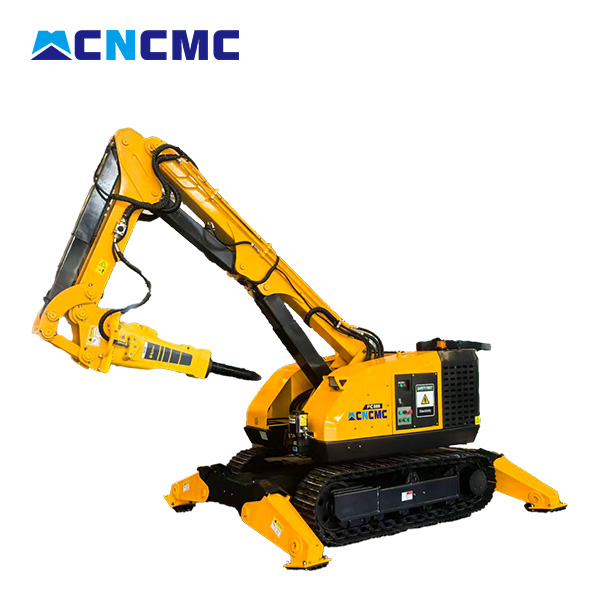

CNCMC PC1200 75Kw 15 ton Demolition Robot

Introduction:

1. Remote Control Demolition Robot is designed to remove large concrete structures in a very secure way, it can largely reduce the risks of falling rubble and debris, it is robust and powerful, and the machine is capable to break, crunch, clear, drill and scrabble any concrete structure.

2. The operator will have a comprehensive view of the work being undertaking as the machine is radio controlled thus providing a unique perspective. The operator is free to select the best location from which to supervise and progress the works at a safe distance.

3. Robotic demolition brings incredible benefits: allowing access to areas not possible with traditional methods, such as cross a single doorway, staircases, carried by elevator, safety for HAVS, high altitude demolition, cleaning of cement plant kiln, cleaning of steel smelting furnace, cleaning of radioactive cement for nuclear power plant, etc.


Product Detail

Product Tags

Hammer
Epiroc SB552 100mm
Work Radius
10.0m
Grade ability
30°
Rotary speed/range
6.8rpm/360°
Max walking speed
3.0km/h
Track
Steel type
Outrigger
4, frog type
Noise level
120dB(A)
Weight
15300kg
Dimension(LxWxH)
5800x2130x3080 mm
Hydraulic pump type
Load sensitive variable axial piston pump
Hydraulic valve type
Electron-hydraulic proportional valve
Hydraulic system capacity
220L
Max flow rate of hydraulic pump
135L/min
System pressure
20Mpa
Power option
Electric motor 75Kw(380V/50Hz)
Start mode
Soft start
Operation
Portable remote controller
Signal mode
Digital
Control mode
Wired/wireless
Remote control distance
300m
Max vertical working height
10800mm
Max working distance
9080mm
Max working depth
4500mm
Color
Painting as required
