CNCMC TCP32 32m Concrete Pump Truck

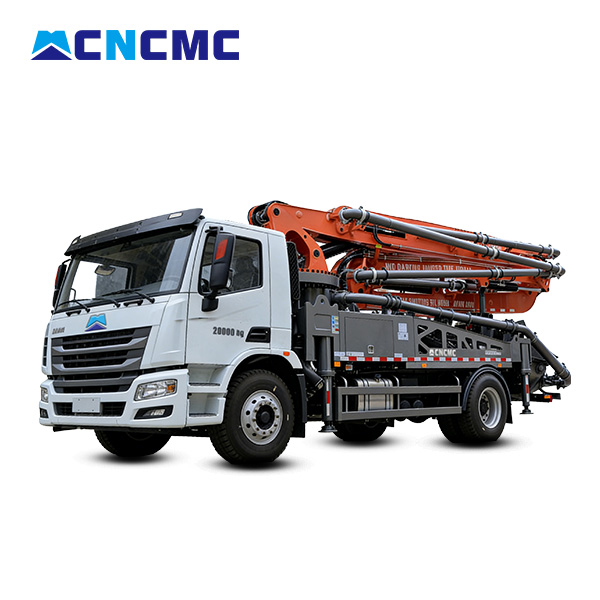

CNCMC TCP32 32m Concrete Pump Truck Featured Image
  • CNCMC TCP32 32m Concrete Pump Truck

Introduction:

  • Compact structure, ideal for narrow urban & confined job sites
  • Balanced 32m vertical reach, perfect for mid-rise construction
  • Quick setup & high mobility, shortens on-site preparation time
  • Cost-effective, lower fuel consumption & maintenance cost
  • Stable pumping, smooth boom control & easy operation


Product Detail

Product Tags

Pumping system     Chassis and the whole
Max.Theor.output m3/h 100 Outriggers span (front x rear x side) mm 5950x6270x5350
Max.Theor.concrete output Pressure MPa 7.3 Wheelbase mm 4600
Hopper capacity L 600 Enginetype   Yuchai
Filling height mm 1400 Engine power kw 176kw
Hydraulic system type   open loop Oiltank cubage L 300
Distribution valve   S valve Tail gas exhaust standard   VI
Oil cylinder dia.x stroke mm φ 110×1400 Overall dimensions mm 9100x2500x3500
Concrete cylinder dia. x stroke mm φ 230 x 1400 Oiltank volume L 600
Hydraulic oil cooling   Air cooling Control mode   Manual+remote control
Placing boom     Pipe cleaning mode   Water cleaning/dry cleaning
Structure type   32-5RZ Main component configuration
Placing depth m 31.1 Boom Control mode   Manual and wireless remote control system
Horizontal distance m 27.1 Legs Open   Front X-type telescopic outriggers, rear H-type telescopic outriggers
Slewing angle   ±360° Boom Steel   High-strength steel plate
Pipe diameter mm 125 Power Supply   Chassis with built-in power supply
End hose length mm 3000  Working Voltage   DC24V
Min. height of opening placing boom m 5.8 Hydraulic System Type   Open loop
      main Hydraulic Pump   Push
      main Hydraulic Pump Displacement   190ml/r
