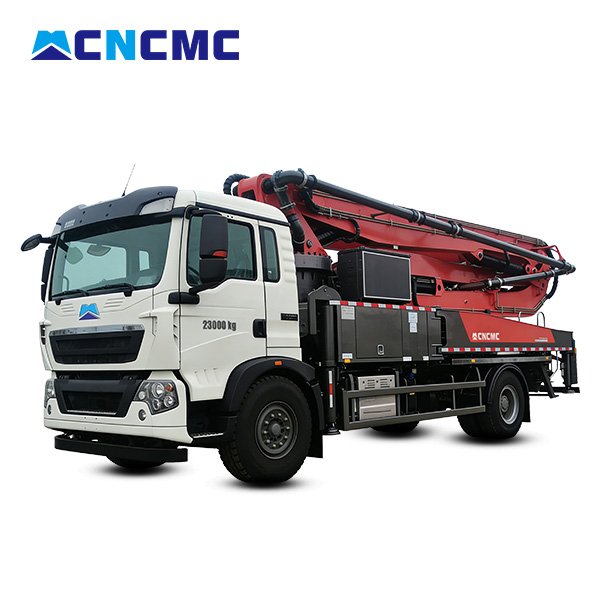

CNCMC TCP38/39 38m 39m Concrete Pump Truck

CNCMC TCP38/39 38m 39m Concrete Pump Truck Featured Image
  • CNCMC TCP38/39 38m 39m Concrete Pump Truck

Introduction:

  • Longer vertical and horizontal reach, wider construction coverage.
  • Versatile for mid-rise buildings and diverse job sites.
  • Stable boom design, reliable and safe pumping performance.
  • Flexible mobility, easy to move and position on site.
  • Balanced efficiency and cost, ideal for mainstream projects.


Product Detail

Product Tags

Chassis Mode   TCP38 TCP39
Wheelbase mm 5200 5200
Engine Mode   MC07.31-60 MC07.31-60
Rated power KW/(r/min) 228/2200 228/2200
Emission standards   China VI China VI
Pumping system Max. Theor. output(high/low pressure) m³/h 66/111 110
Max. Theor. concrete output Pressure MPa 9.5/5.6 8
Concrete cylinder dia. x stroke mm φ230X1650 φ230X1650
Feeding height mm 1400 1400
Structure type   5RZ 5RZ
Placing boom Placing maximum height/depth/radius m 38/29/34 38.1/23.1/35.1
Slewing angle   ±270° ±360%
Other High and pressure switch-over   Electric automatic
 Displacement control   Electric proportion controlling
Lubrication mode   Manual and hydraulic
Overall dimensions mm 10400 x2550 x3800 10500×2550 x3740
