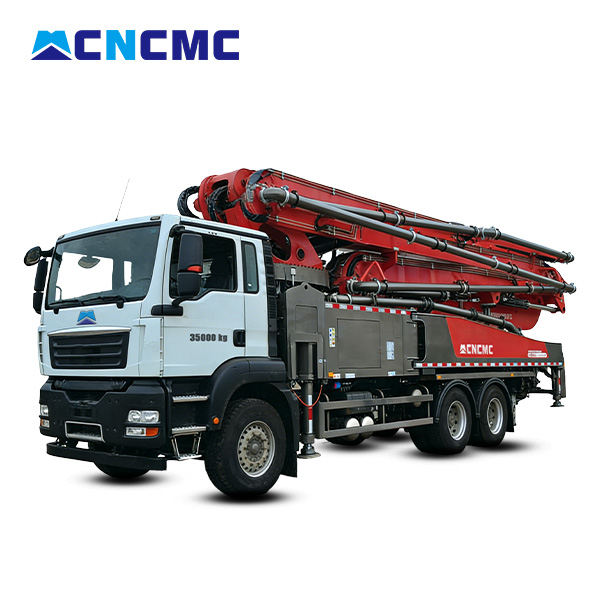

CNCMC TCP52 52m Concrete Pump Truck

Introduction:

  • Ultra-long vertical & horizontal reach, suitable for high-rise and large-area projects.
  • High pumping efficiency, shortens construction period and reduces labor cost.
  • Stable boom structure, ensures safe and reliable concrete delivery.
  • Strong site adaptability, works well in various large-scale construction scenarios.
  • Flexible operation, greatly improves overall construction productivity.


Product Detail

Product Tags

Full equipment
Mode   TCP52
Chassis
Mode   SITRAK 6×4
 Wheelbase mm 4650+1400
Engine
Mode   MC11.44-60
Rated power KW(/min) 327KW
Emission standards   China VI
Pumping system
Max. Theor. output m³/h 120
Max.Theor.concrete output Pressure MPa 10MPa
Feeding height mm 1480
Placing boom
Structure type   52-6RZ
Maximum placing height m 51.4
Placing boom max radius m 46.4
Slewing angle   ±360°
Outrigger
Outrigger type   Front X-type Outriggers + Rear Swing Outriggers
Outrigger span mm 9650x10150x9820
Full equipment parameter
Overall dimensions mm 12680x2550x4000
