CNCMC TCP60/63 60m 63m Concrete Pump Truck

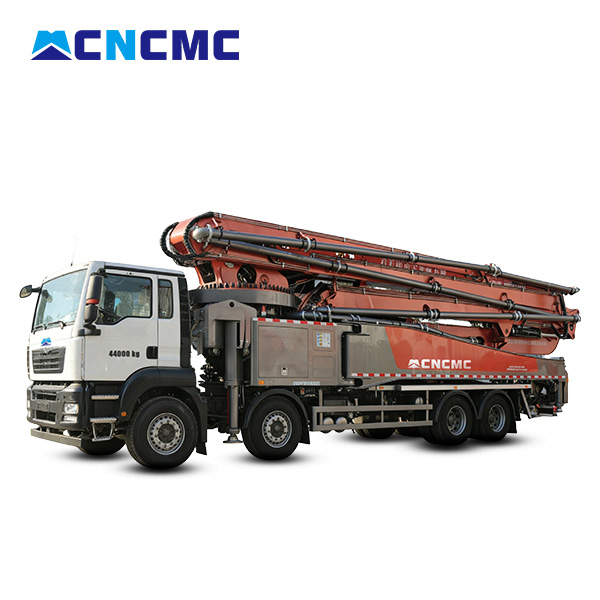

CNCMC TCP60/63 60m 63m Concrete Pump Truck Featured Image
  • CNCMC TCP60/63 60m 63m Concrete Pump Truck

Introduction:

  • Extra-long boom for high-rise and large-area construction.
  • Wide operating coverage, less relocation and higher efficiency.
  • Strong pumping capacity, fast concrete delivery speed.
  • Stable boom structure, safe and reliable in complex conditions.
  • High adaptability for large-scale infrastructure projects.


Product Detail

Product Tags

Mode   TCP60 TCP63 Pumping system parameters   TCP60 TCP63
Total length mm 14530 15020 Theoretical displacement of concrete m³/h 170 170
 Total width mm 2550 2550 Theoretical pumping pressure Mpa 10 10
Total height mm 4000 4000  Inner diameter of delivery cylinder mm φ260 φ260
Boom outrigger parameters        Delivery cylinder stroke mm 2100 2100
Maximum placing height m 60 63 Hydraulic pressure system   Open loop Open loop
Horizontal placing range m 55.1 58 Hydraulic oi tank capacity L 700 700
Vertical placing depth m 44 49 Water tank vclume L 1000 1000
Minimum unfolded height m 15 15 Delivery pipeline diameter mm 125 125
First boom Rotation 89° 89° End hose length mm 3000 3000
Secondboom Rotation 180° 180° End hose diameter mm 125 125
Third boom Rotation 180° 180° Truck chassis parameters
Fourth boom Rotation 230° 240° Chassis model   ZZ5446V516MF1 ZZ5446V516MF1
Fifth boom Rotation 210° 210° Engine model   MC11.44-60 MC11.44-60
Sixthboom Rotation 110° 110° Engine power KW/rpm 327/1900 327/1900
Slewingframe rotation angle   ±360° ±360° Emission standards   China VI China VI
Front leg spread width mm 9793 12800 Fuel tank capcity L 400 400
Back swing leg extended width mm 13279 12600 Displacement ml 10518 10518
         Maximum speed km/h 90 90
