CNCMC TCP58 58m Concrete Pump Truck

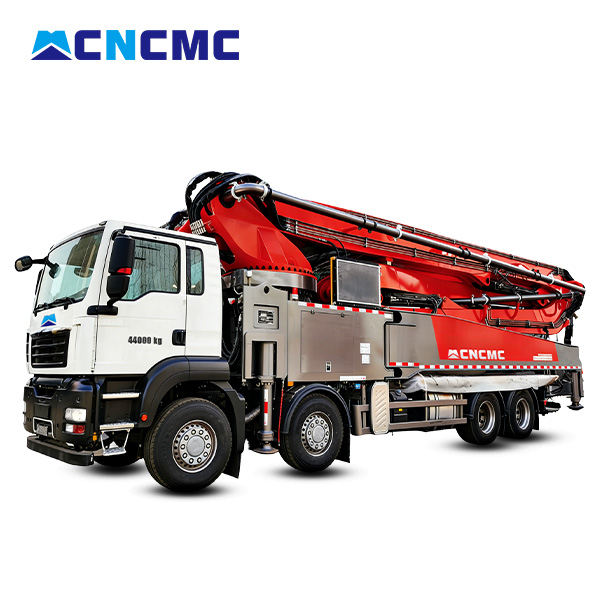

CNCMC TCP58 58m Concrete Pump Truck Featured Image
  • CNCMC TCP58 58m Concrete Pump Truck

Introduction:

  • Long boom reach, suitable for high-rise and large-area construction.
  • Wide operating coverage, reduces displacement and improves work efficiency.
  • Stable boom structure, safe and reliable in complex working conditions.
  • Strong pumping performance, ensures fast and stable concrete delivery.
  • High adaptability for various large-scale construction projects.


Product Detail

Product Tags

Vehicle Specifications     Pumping system parameters
 Total length mm 14180 Theoretical displacement of concrete m³/h 170
Total width mm 2550 Theoretical pumping pressure Mpa 10
Total height mm 4000  Inner diameter of delivery cylinder mm φ260
Boom outrigger parameters      Delivery cylinder stroke mm 2100
Maximum placing height   58 Hydraulic pressure system   Open loop
Horizontal placing range   53 Hydraulic oil tank capacity L 650
Vertical placing depth   45 Water tank volume L 1000
 Minimum unfolded height   13 Delivery pipeline diameter mm 125
First boom Rotation 89° End hose length mm 3000
Second boom Rotation 180° End hose diameter mm 125
Third boom Rotation 180° Truck chassis parameters
Fourth boom Rotation 230° Chassis model   ZZ5446V516MF1
Fifth boom Rotation 210° Engine model   MC11.44-60
Sixthboom Rotation 110° Engine power KW/rpm 327/1900
Slewing frame rotation angle   ±270°  Emission Standards   China VI
Front leg spread width mm 9689 Fuel tank capacity L 400
Back swing leg extended width mm 12314 Displacement ml 10518
      Maximum speed km/h 90
