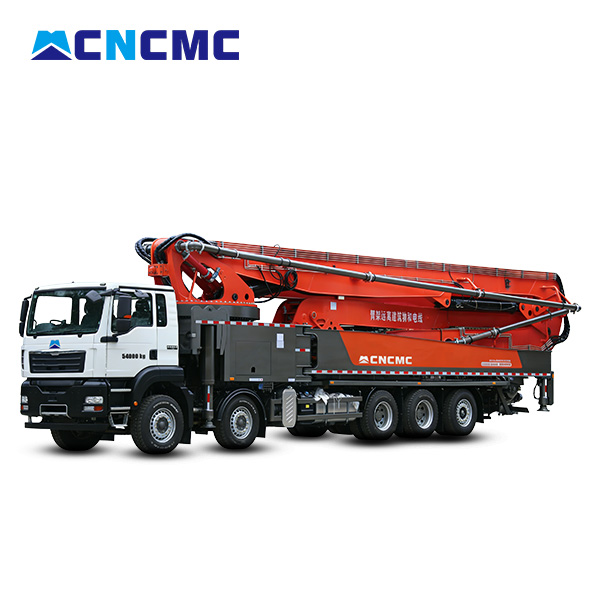

CNCMC TCP70 70m Concrete Pump Truck

CNCMC TCP70 70m Concrete Pump Truck Featured Image
  • CNCMC TCP70 70m Concrete Pump Truck

Introduction:

  • Extra-long boom reach for super high-rise construction.
  • Ultra-wide operating coverage, reduces truck relocation.
  • Strong pumping capacity for high-efficiency concrete delivery.
  • Stable boom structure, safe and reliable in complex sites.
  • High adaptability to large-scale infrastructure projects.


Product Detail

Product Tags

Vehicle Specifications     Pumping system parameters
 Total length mm 16230 Theoretical displacement of concrete m³/h 160
Total width mm 2550 Theoretical pumping pressure Mpa 10
Total height mm 4000  Inner diameter of delivery cylinder mm φ260
Boom outrigger parameters      Delivery cylinder stroke mm 2100
Maximum placing height   70 Hydraulic pressure system   Open loop
Horizontal placing range   64 Hydraulic oil tank capacity L 800
Vertical placing depth   52 Water tank volume L 1000
 Minimum unfolded height   10 Delivery pipeline diameter mm 125
First boom Rotation 89° End hose length mm 3000
Second boom Rotation 180° End hose diameter mm 125
Third boom Rotation 180° Truck chassis parameters
Fourth boom Rotation 230° Chassis model   ZZ5546V52KMF1B
Fifth boom Rotation 210° Engine model   MC13.54-61
Sixthboom Rotation 110° Engine power KW/rpm 400/1800
Slewing frame rotation angle   ±360°  Emission Standards   China VI
Front leg spread width mm 12700 Fuel tank capacity L 400
Back swing leg extended width mm 14620 Displacement ml 12420
      Maximum speed km/h 90
