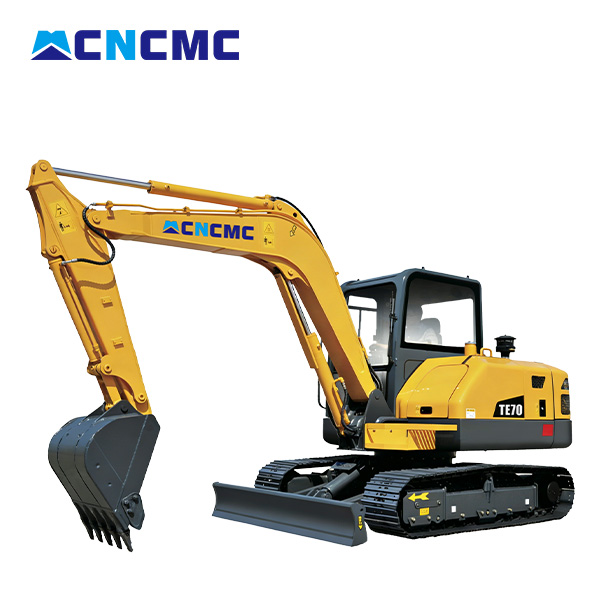

CNCMC TE70 7 Ton Crawler Excavator

Strong digging force and stable performance to handle heavy-duty working conditions.
Moderate size, flexible in urban construction and narrow job sites.
High working efficiency and low fuel consumption for cost-effective operation.
Wide application range for engineering, municipal, landscaping and farm work.
Easy to transport and maintain, with reliable quality and long service life.

Product Detail

Engine		TE70
Model		4TNV94L-BVLYC
Rated Power	kW/rpm	36.2/2100
Maximum Torque	kN.m	208.3
Hydraulic System
Operating Pressure	Mpa	24.5
Maximum Flow Rate	Lmin	142.8
Operating Performance
Swing Speed	rpm	10.4
Travel Speed (High/Low)	km/h	4.0/2.3
Maximum Digging Force (Bucket)	kN	47.2
Maximum Digging Force (Arm)	kN	28.6
Gradeability	°	30
Ground Pressure	Kpa	34
Overall Dimensions
A Overall Length	mm	5847
B Overall Width	mm	1940
C Overall Height	mm	2618
F Counterweight Ground Clearance	mm	690
I Rear Length	mm	1633
D Upper Width	mm	1840
E Cab Height	mm	2618
I’ Swing Radius	mm	1681
G Engine Hood Height	mm	1645
Travel Device
K Track Length	mm	2531
J Track Wheelbase	mm	1990
M Track Gauge	mm	1520
N Track Width	mm	400
H Minimum Ground Clearance	mm	374
Tank Capacity
Fuel Tank	L	112
Hydraulic Tank	L	80
Maximum Digging Reach	6154mm
Maximum Digging Reach at Ground Level	6015mm
Maximum Digging Depth	3844mm
Maximum Vertical Digging Depth	3188mm
Maximum Digging Height	5563mm
Maximum Dumping Height	3796mm
Minimum Swing Radius	2560mm
