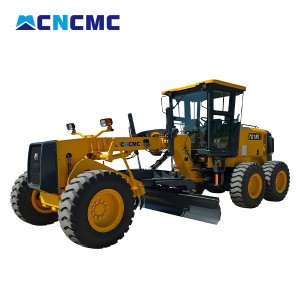

CNCMC TG180L 180hp Motor Grader

CNCMC TG180L 180hp Motor Grader Featured Image
  • CNCMC TG180L 180hp Motor Grader

Introduction:

  • 180HP engine with sufficient power and strong traction.
  • High leveling accuracy, stable and efficient in operation.
  • Wide application for road, site, airport and mining area work.
  • Flexible control, good mobility and easy operation.
  • Sturdy structure, reliable durability and low running cost.


Product Detail

Product Tags

Model   TG180L
Operating mass kg 16000
Front axle ioad kg 5150
Rear axle load kg 10850
Max.forward speed km/h 36
Max.backward speed km/h 25
Speed gear number   F6/R3
Turning radius mm 7800
Hydraulic system pressure Mpa 18
Blade length x height mm 3965×610
Front wheeltrack mm 2150
Rear wheeltrack mm 2255
Wheelbase mm 5647
Stage ll engine model   Cummins-6BTA5. 9
Engine power KW 132
Overall dimensions mm 8605x2695x3420
