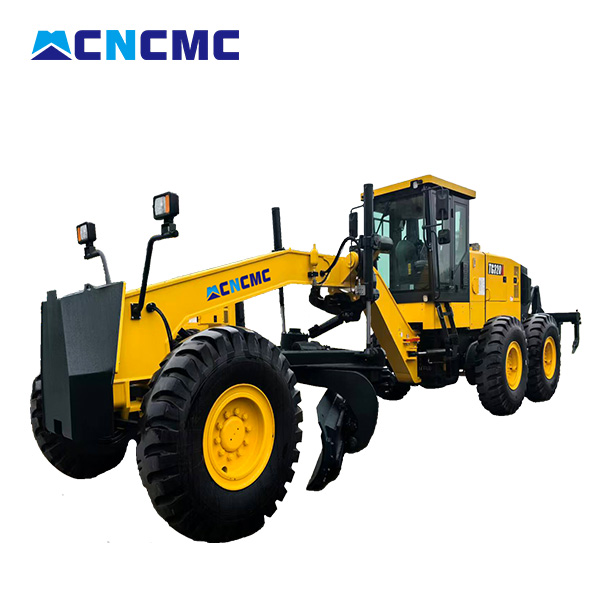

CNCMC TG320 320Hp Mining Motor Grader With Cummins Engine

Introduction:

  • High Power and Strong Traction

TG320 provides excellent pulling force and blade control, making it ideal for heavy‑duty grading, spreading, and compacting tasks.

  • Superior Grading Precision

The powerful engine and advanced hydraulic system deliver smooth, precise blade movements, ensuring high‑quality surface finishes for roads, parking lots, and construction sites.

  • Efficient Operation

With strong power and responsive controls, the grader works faster and more effectively, reducing the number of passes needed and improving overall productivity.

  • Good Stability and Handling

The robust frame and balanced weight distribution ensure stable operation even at higher speeds or on uneven terrain, enhancing safety and control.

  • Wide Application Range

Suitable for road construction, maintenance, land leveling, ditch cutting, and material spreading, making it a versatile machine for various construction projects.


Product Detail

Product Tags

Model   TG320
Engine model - OSM11-C330
Engine type - Electronic injection, turbocharging, air-cooling,                                       temperature-controlled independent cooling system
Rated power kw/rpm 246/2100
MMass ofthe whole machine t 28
Outline dimension mm 12500x3300x3700
Transmission - ZF 6WG260
Rear axle balance box - MEICHI
Tyre - 3.5-25 L-2
Groud clearanceSpeed of advance km/h 5.5、8.6、13.3、20.3、29、43
Backward speed km/h 5.5、13.3、29
Hydraulic system - Dual handle operation, load sensitive system
Steering system - Fully hydraulic front wheel steering, articulated steering,                             emergency steering
Service brake - Fully hydraulic wet braking
Parking brake - Hydraulic operated disc brake
Bladelength/height mm 4620/695
Max.lift above ground mm 515
Max.grading depth mm 735
Max.wheel lean angle ° 80
Blade tip angle ° 23-73
Maximum swing angle of front axle ° 15
Maximum tilt angle of front wheel ° 17
Maximum steering angle of front whee ° 49
Maximum steering angle of articulation ° 25
Min.Turning radius mm 9000
