CNCMC TMZ240 240 Ton Mining Dump Truck

Introduction:

  • Ultra-high 2400-ton payload greatly cuts haulage cycles and boosts overall efficiency.
  • Super-large capacity lowers per-ton transportation cost and maximizes economy.
  • Heavy-duty reinforced structure ensures outstanding stability in harsh mining environments.
  • High-power powertrain provides strong traction and smooth performance under full load.
  • Rugged, reliable design reduces downtime and supports long-term heavy-duty operation.


Product Detail

Product Tags

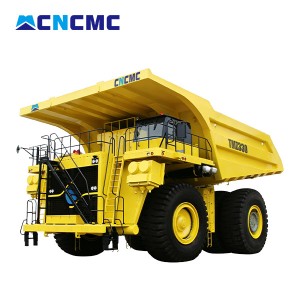

Specification TMZ240 Specification TMZ330
Overall Dimensions 15000×8700×7800 mm Overall Dimensions 15000×9300×7600 mm
Drive Type 4×2 Rear Axle Drive Drive Type 4×2 Rear Axle Drive
Vehicle Operating Weight 178 t Vehicle Operating Weight 210 t
Loading Capacity 210-230 t Loading Capacity 300-330 t
Maximum Speed 64.5 km/h Maximum Speed 64.5 km/h
Rated Gradability 8% Rated Gradability 8%
Maximum Gradability 18% Maximum Gradability 18%
Braking Distance <25 m @ 30 km/h – 0 km/h Braking Distance <26 m @ 30 km/h – 0 km/h
Braking System Electric Brake & Mechanical Brake Braking System Electric Brake & Mechanical Brake
Bucket Capacity Struck: 110 m³ Bucket Capacity Struck: 175 m³
  SAE 2:1 Loose: 130 m³   SAE 2:1 Loose: 215 m³
Hydraulic Tank Capacity 900 L Hydraulic Tank Capacity 1040 L
Operating Temperature -40℃ to 50℃ Operating Temperature -40℃ to 50℃
Engine Model QST60/MTU16V4000 Engine Model QST30
Engine Power 1865 kW Engine Power 2013 kW hp
