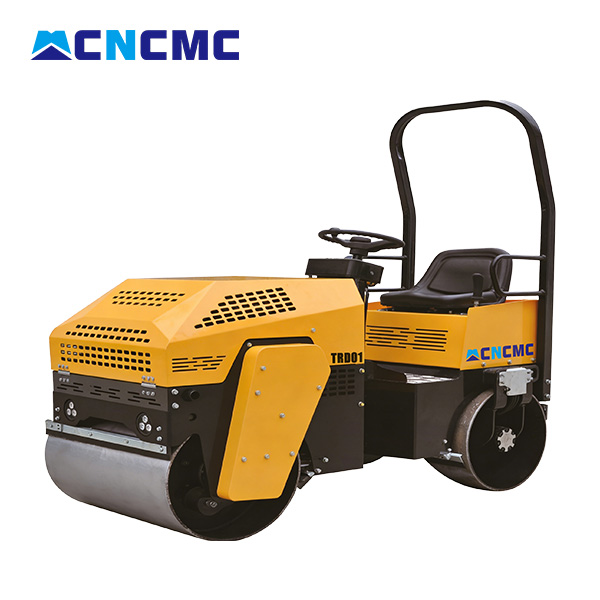

CNCMC TRD01 1 Ton Double Drum Road Roller

CNCMC TRD01 1 Ton Double Drum Road Roller Featured Image
  • CNCMC TRD01 1 Ton Double Drum Road Roller

Introduction:

  • Double-drum structure enables high-efficiency synchronous compaction.
  • Compact body works flexibly in narrow & confined spaces.
  • Stable performance ensures even compaction & smooth pavement.
  • Lightweight for easy transfer & low transport cost.
  • Simple operation with low fuel & maintenance cost.


Product Detail

Product Tags

Specification   TRD01
Operating mass kg 1000
Static linear load N/cm 77/56
Vibration amplitude mm 0.5
Vibration frequency Hz 75
Centrifugal force kN 30
Travel speed km/h 0-8
Gradeability % 30
Turning radius mm 2000
Drum width mm 700
Drum diameter mm 530
Wheelbase mm 1287
Ground clearance mm 235
Engine model   CF186F/GX390
Diesel engine power Hp 46278
Overall dimensions mm 2100*860*1900
Package Size mm 2200*950*1650
