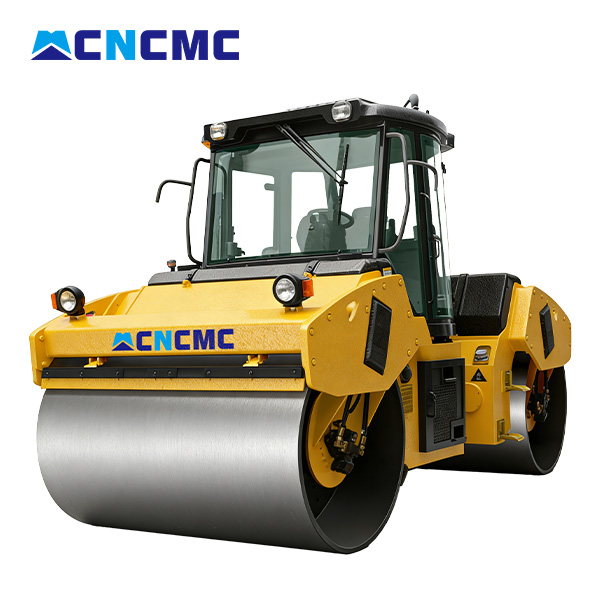

CNCMC TRD12/10/08 12/10/8 Ton Double Drum Road Roller

CNCMC TRD12/10/08 12/10/8 Ton Double Drum Road Roller Featured Image
  • CNCMC TRD12/10/08 12/10/8 Ton Double Drum Road Roller

Introduction:

         5 Core Advantages of 8T / 10T / 12T Double-Drum Roller

  • Strong compaction force ensures high-density and stable pavement.
  • Double drums provide smooth, high-quality asphalt finish.
  • Full hydraulic system for precise control and flexible operation.
  • Ideal for highways, municipal roads and large-area paving.
  • High efficiency, reliable structure and low maintenance cost.


Product Detail

Product Tags

Specification   TRD12 TRD10 TRD08
Operating mass kg 12000 10000 8000
Static linear load N/cm 286 238 231
Vibration amplitude mm 0.8/0.4 0.67/0.34 0.67/0.34
Vibration frequency Hz 40/46 45/50 45/50
Centrifugal force kN 160*2/69*2 90*2/69*2 90*2/69*2
Travel speed km/h 12 10 10
Gradeability % 40 40 40
Turning radius mm 7000 6000 6000
Drum width mm 2100 1730 1730
Drum diameter mm 1350 1150 1150
Wheelbase mm 3717 3217 3217
Ground clearance mm 324 258 258
Diesel engine model   6BT5.9 4BT3.9 4BT3.9
Diesel engine power kW 110 75 75
Overall dimensions mm 5060*2250*3300 4558*1840*2674 4558*1840*2674
