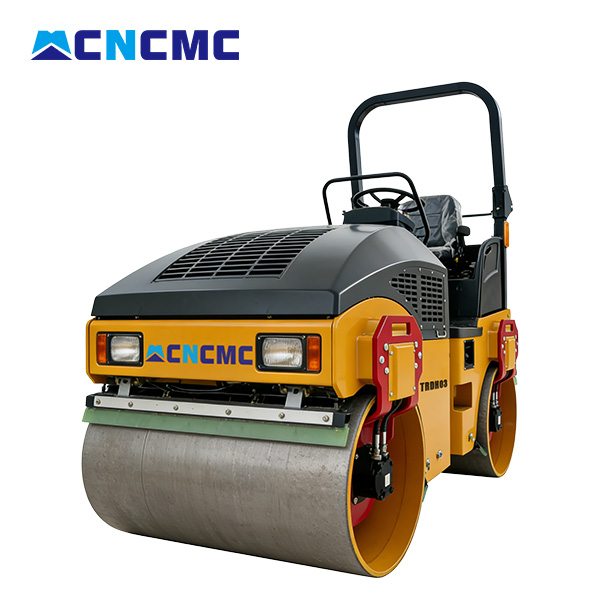

CNCMC TRDH03 3 Ton Full Hydraulic Double Drum Road Roller

CNCMC TRDH03 3 Ton Full Hydraulic Double Drum Road Roller Featured Image
  • CNCMC TRDH03 3 Ton Full Hydraulic Double Drum Road Roller

Introduction:

  • Full hydraulic system enables precise & smooth control.
  • Strong compaction force ensures high pavement density.
  • Flexible steering works well in narrow construction areas.
  • Stable performance with low failure and easy maintenance.
  • Double drums deliver smooth, high-quality asphalt surface.


Product Detail

Product Tags

Specification   TRDH03
Operating mass kg 3000
Static linear load N/cm 120/120
Vibration amplitude mm 0.5/0.5
Vibration frequency Hz 50
Centrifugal force kN 30*2
Travel speed km/h 0-12
Gradeability % 30
Turning radius mm 4200
Drum width mm 1250
Drum diameter mm 700
Wheelbase mm 1890
Ground clearance mm 200
Diesel engine model   CF2B40
Diesel engine power kW 29.5
Overall dimensions mm 2650*1380*2500
