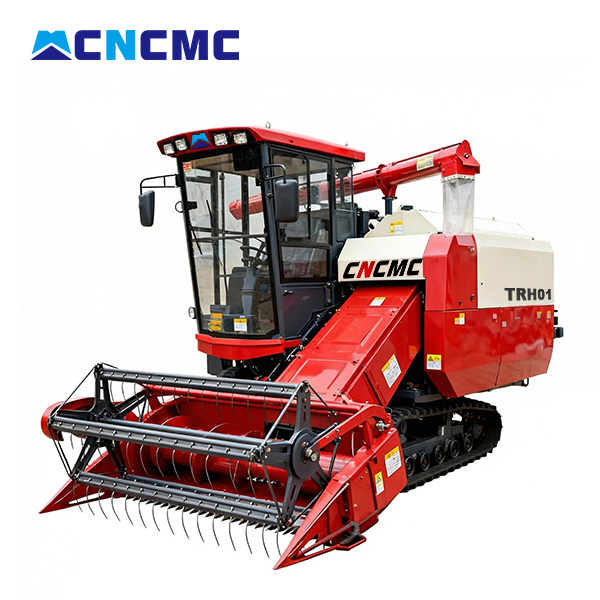

CNCMC TRH01 100HP Automatic Crawler Rice Grain Combine Harvester

Introduction:

1.High efficiency and low grain loss, with optimized cutting, threshing, and cleaning systems.

2.Strong power and good passability, featuring reliable engines and wide crawler tracks for muddy paddy fields.

3.Smart and comfortable operation, including an air-conditioned cab, easy controls, and digital monitoring.

4.Durable and easy to maintain, with heavy-duty components and centralized lubrication.

5.Versatile performance, capable of harvesting rice and other crops, suitable for both small and large fields.


Product Detail

Product Tags

ltems
TRH01
TRH02
TRH03
Engine

Changchai 102hp G3
Yuchai 110hpTurbo+Mechanical injector G3
Yuchai 110hpTurbo+Mechanical injector G3
Gearbox
90
95
95
Hydrostatic Transmission
KANZAKI 38cc
KANZAKI 38cc
KANZAKI 52cc
Unloading Auge
270°discharge
270°discharge
360°discharge
Remote Control Unloading
yes
yes
yes
Discharges Auger Homing Buttom
yes
yes
yes
Single Configuration
450*90*51
500*90*53
550*90*56
Chassis Wheels
6+1 with scraper
6+1 with scraper
6+1 with scraper
Cutter Width
2/2.2m
2.2m/2.4m
2.2m/2.4m
Fuel capacity
140L
140L
140L
Feeding Capacity
5kg/s
6kg/s
7kg/s
Rotor Diameter * Length
φ620*2000mm
φ620*2200mm
φ620*2200mm
Monitoring and Video and Alarm
Alarm
Alarm
Alarm
USB Charges
NO
yes
yes
Valve of Hydraulic on Header
yes
yes
yes
Working Area Recorder
NO
yes
yes
Grain tank(m³)
2
2.2
2.2
Overall dimension (L*W*H)mm
5580*2420*2880
5860*2620*2940
5900*2640*2940
Weight(kg)
3150
3785
3935
Electrical System
Grain Tank Alarm,Alarm for Coolant,Battery,Engine Oil,Clogging along with lighting
Grain Tank Alarm,Alarm for Coolant,Battery,Engine Oil,Clogging along with lighting
Grain Tank Alarm,Alarm for Coolant,Battery,Engine Oil,Clogging along with lighting
