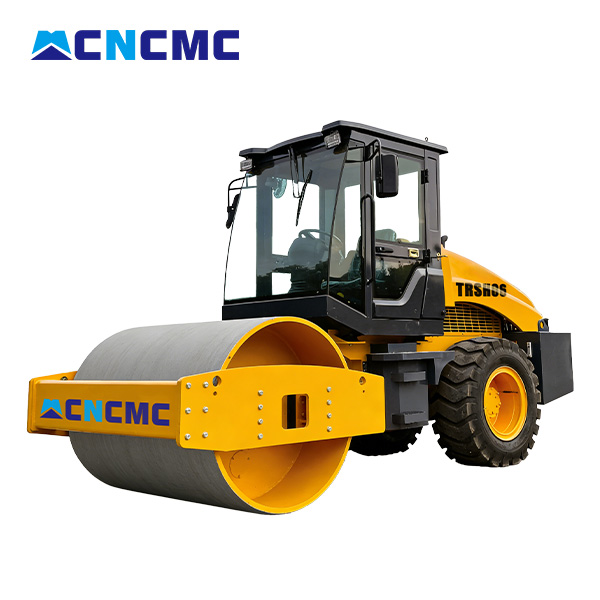

CNCMC TRSH06 6 Ton Full Hydraulic Single Drum Road Roller

CNCMC TRSH06 6 Ton Full Hydraulic Single Drum Road Roller Featured Image
  • CNCMC TRSH06 6 Ton Full Hydraulic Single Drum Road Roller

Introduction:

  • Full hydraulic system ensures smooth, precise and easy operation.
  • Strong compaction force delivers stable subgrade and foundation.
  • Excellent traction performs well on soil, gravel and uneven sites.
  • High efficiency for large-area earthwork and roadbase construction.
  • Reliable structure with low failure rate and easy maintenance.


Product Detail

Product Tags

Specification   TRSH06
Operating mass kg 6000
Static linear load N/cm 165
Vibrating frequency Hz 50
Amplitude mm 0.5
Centrifugal force kN 85
Gradeability % 30
Min.turning radius mm 5100
Max.travel speed km/h 6
Drum width*diameter mm 1520*1150
Diesel model   YN4H055
Diesel power kW 36.8
Diesel rotational speed r/min 2400
Overall dimensions mm 4340*1660*2650
