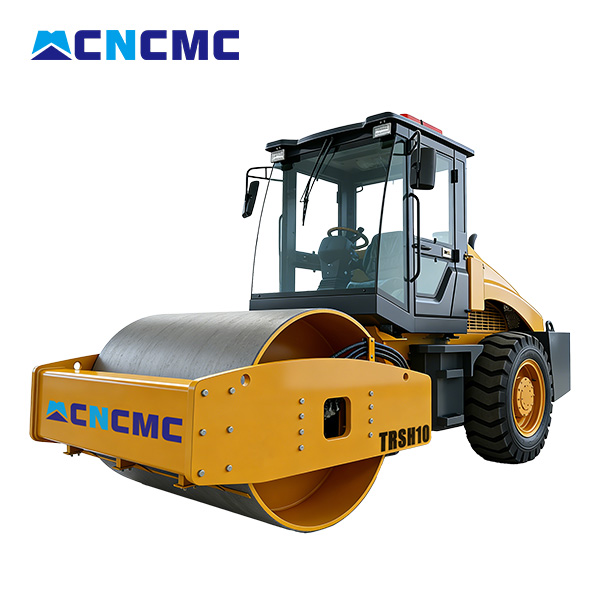

CNCMC TRSH10 10 Ton Full Hydraulic Single Drum Road Roller

CNCMC TRSH10 10 Ton Full Hydraulic Single Drum Road Roller Featured Image

Introduction:

Full hydraulic system for precise, stable and easy operation.
Strong compaction force for dense and solid subgrade.
Excellent traction on soil, gravel and uneven working sites.
High efficiency for large earthwork and roadbase projects.
Reliable structure, low failure rate and easy maintenance.

Product Detail

Product Tags

Specification		TRSH10
Operating mass	kg	9500
Static linear load	N/cm	245
Vibrating frequency	Hz	45
Amplitude	mm	0.7
Centrifugal force	kN	150
Gradeability	%	30
Min.turning radius	mm	5700
Max.travel speed	km/h	12.5
*Drum widthdiameter**	mm	*18001320**
Diesel model		YN35CEF4
Diesel power	kW	70
Diesel rotational speed	r/min	2200
Overall dimensions	mm	*526019702730*
