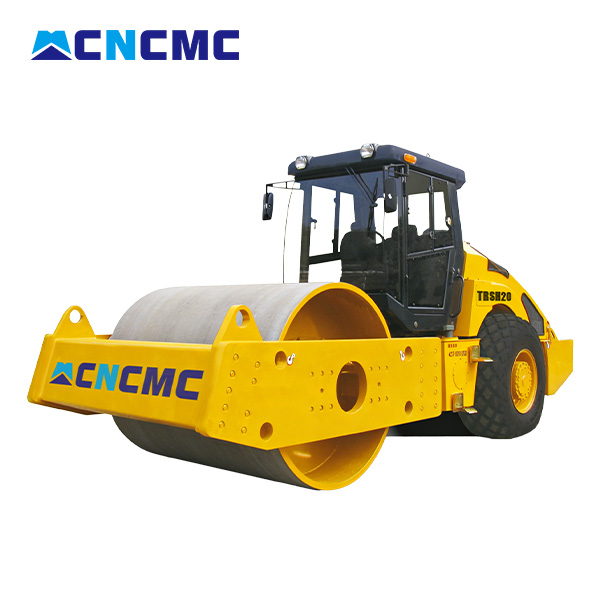

CNCMC TRSH18/20 18/20 Ton Full Hydraulic Single Drum Road Roller

CNCMC TRSH18/20 18/20 Ton Full Hydraulic Single Drum Road Roller Featured Image
  • CNCMC TRSH18/20 18/20 Ton Full Hydraulic Single Drum Road Roller

Introduction:

         5 Core Advantages of 18T / 20T Full-Hydraulic Single-Drum Roller

  • Full hydraulic system for stable, precise and effortless operation.
  • Ultra-strong compaction force for high-density subgrade and foundation.
  • Excellent traction and stability on heavy-duty construction sites.
  • Heavy-duty structure with high reliability and long service life.
  • Perfect for highways, airports, dams and large infrastructure projects.


Product Detail

Product Tags

Specification   TRSH18 TRSH20
Operating mass kg 18000 20000
Static linear load N/cm 540 600
Vibration amplitude mm 1.9/0.95 1.9/0.95
Vibration frequency Hz 28/35 28/35
Centrifugal force kN 390/280 410/300
Travel speed km/h 11 11
Gradeability % 35 35
Turning radius mm 7500 7500
Drum width mm 2100 2100
Wheelbase mm 3380 3380
Ground clearance mm 472 472
Diesel engine model 　 6BTA5.9 6BTA5.9
Diesel engine power kW 132 132
Overall dimensions mm 6665*2280*3090 6665*2300*3090
